Lumbar Support Control Switch Circuit
LUMBAR SUPPORT CONTROL SWITCH CIRCUITCIRCUIT DESCRIPTION
The lumbar support control switch that controls lumbar support is connected to the lumbar support control motor via a wire harness. This circuit can freely operate regardless of the condition of the ECU.

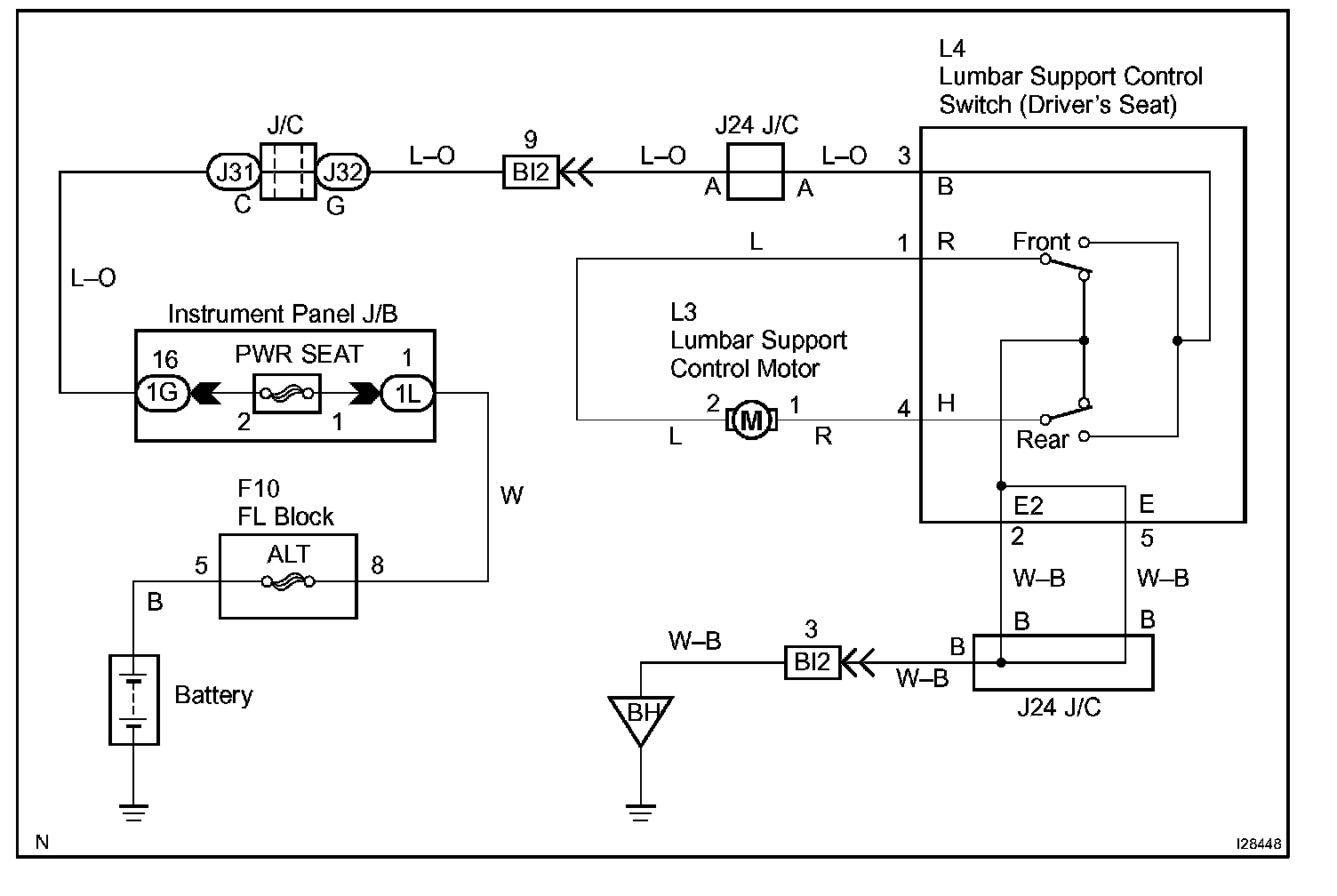

Wiring Diagram:
Step 1 - 2:

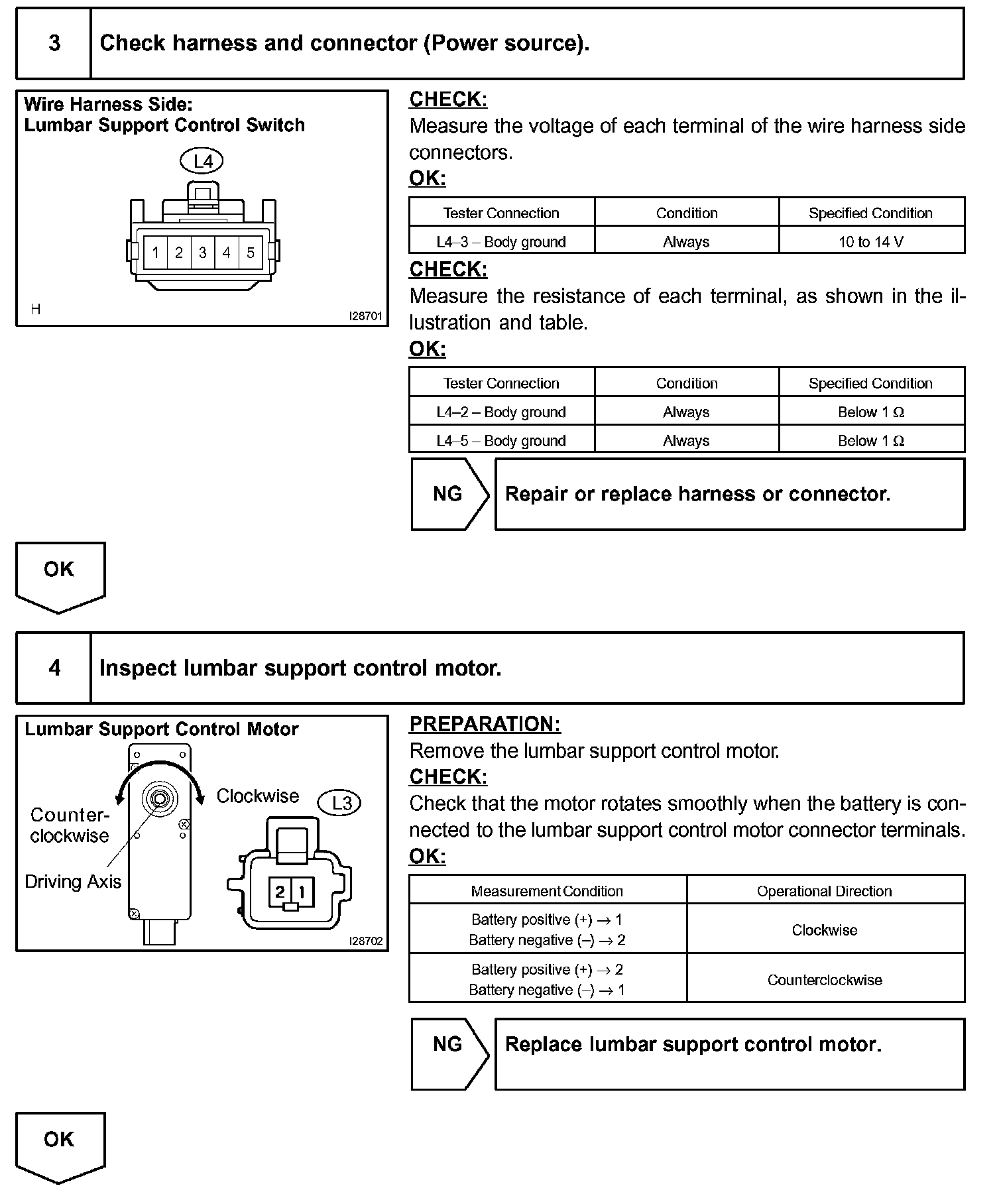

Step 3 - 4:

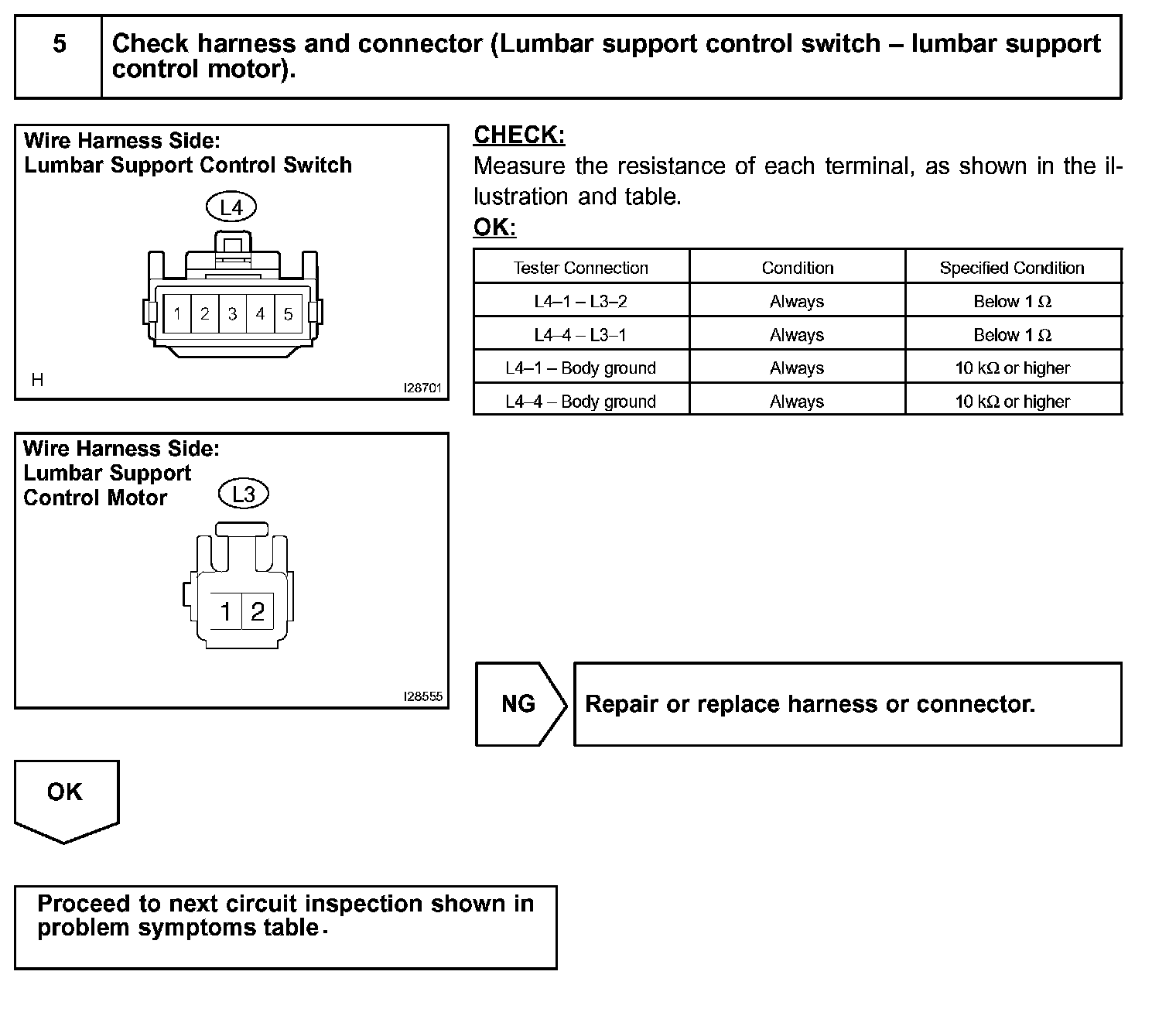

Step 5:
INSPECTION PROCEDURE
