Door Courtesy Switch Circuit

DOOR COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The position control ECU & switch assembly detects the open/close condition of the driver's door, via multiplex communication, through the front door courtesy light switch.

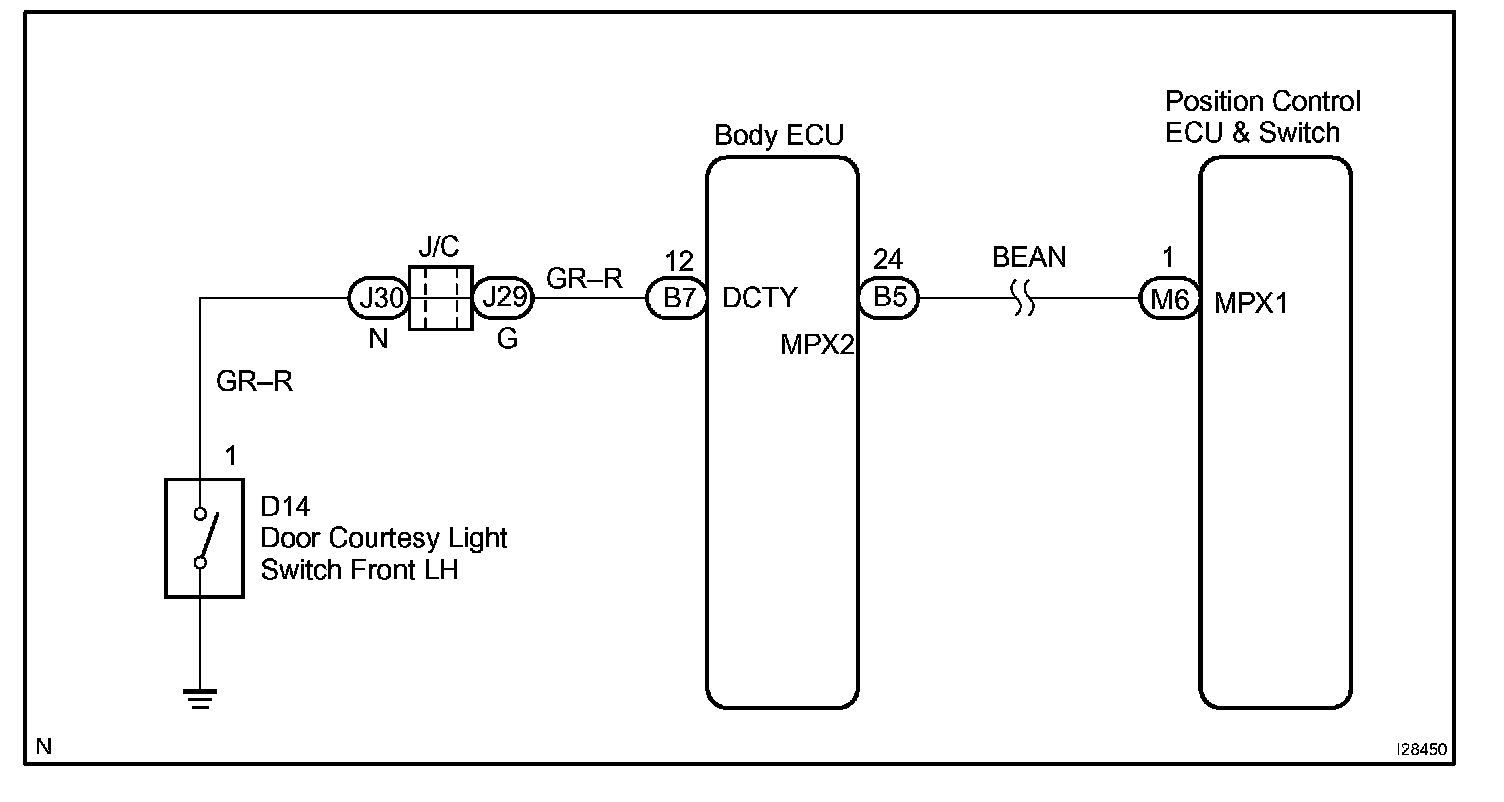

Wiring Diagram:

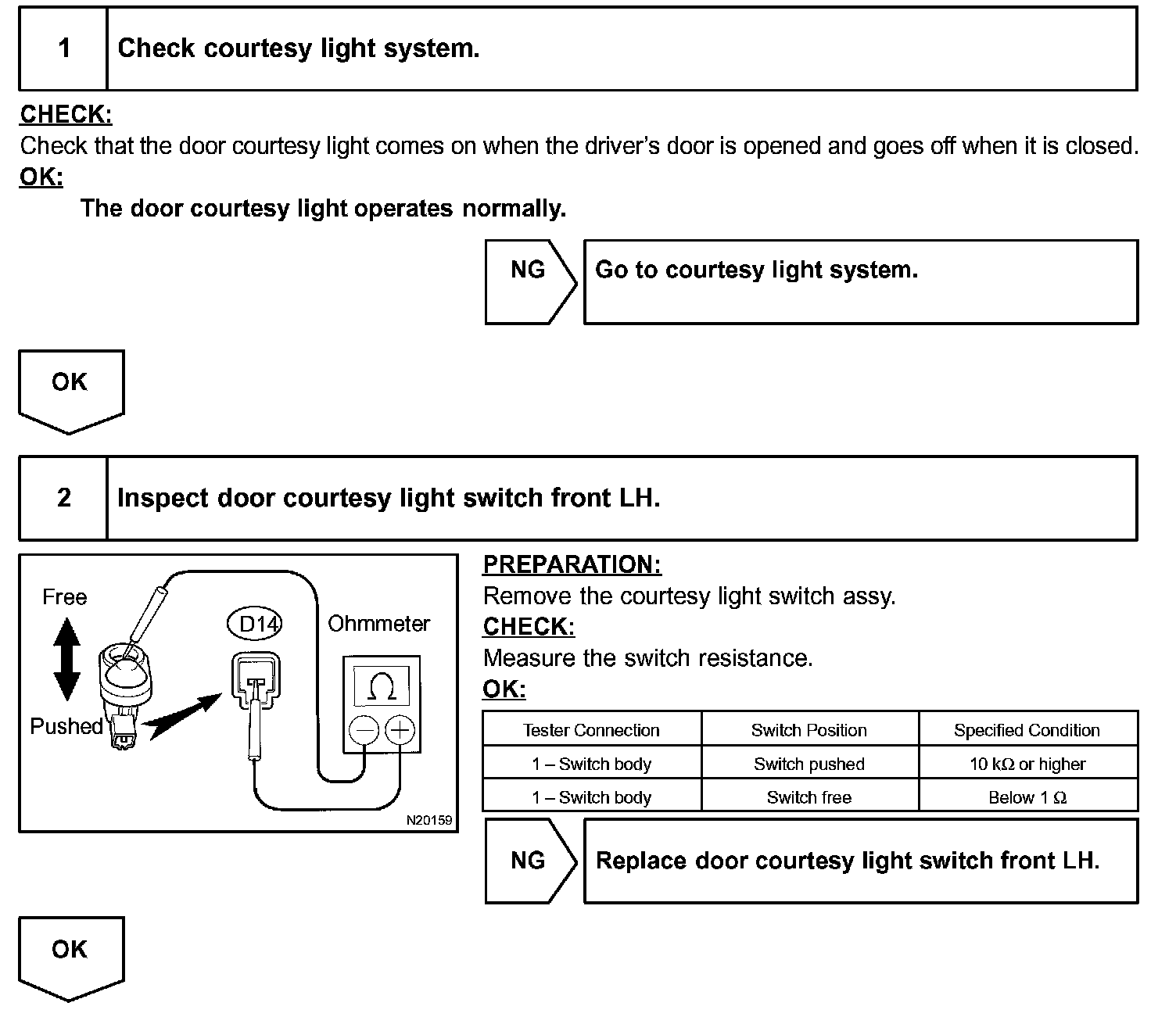

Step 1 - 2:

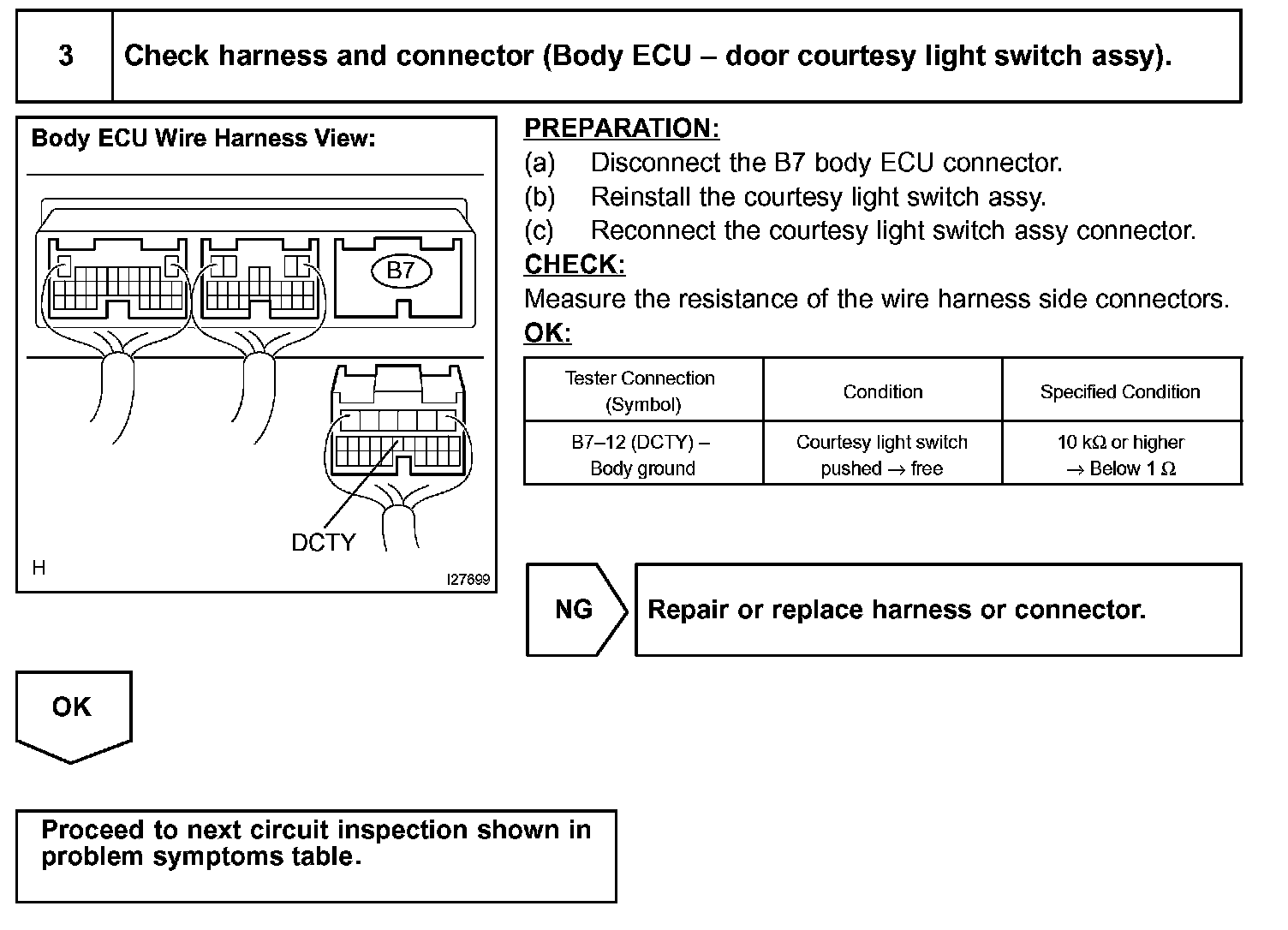

Step 3:

INSPECTION PROCEDURE
