Power Seat Switch: Testing and Inspection

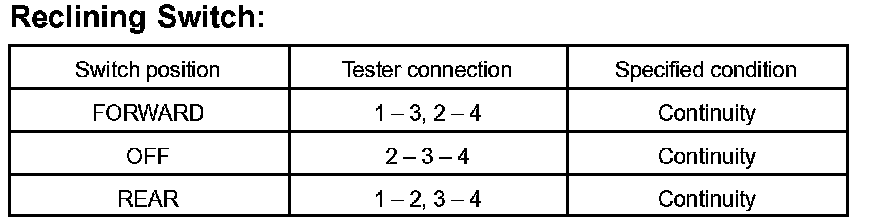

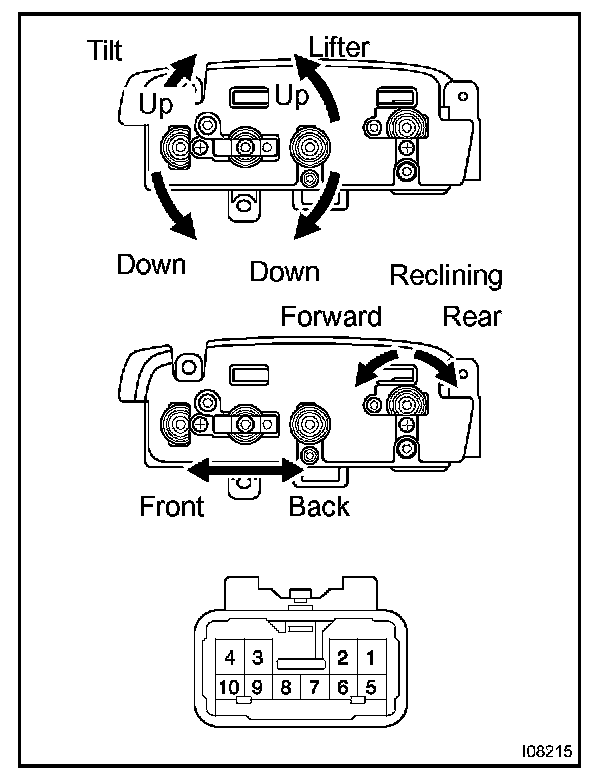

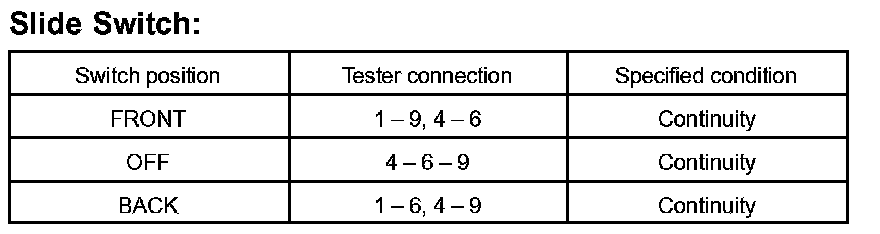

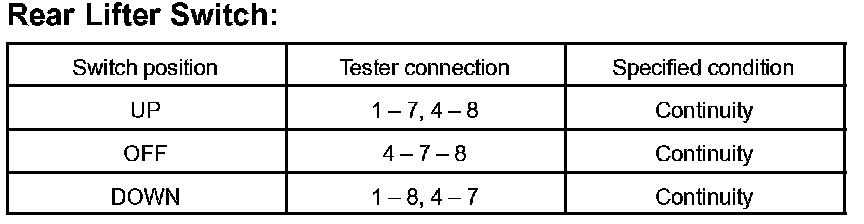

INSPECT DRIVER'S POWER SEAT SWITCH CONTINUITY (w/o Driving Position Memory)
If continuity is not as specified, replace the switch.

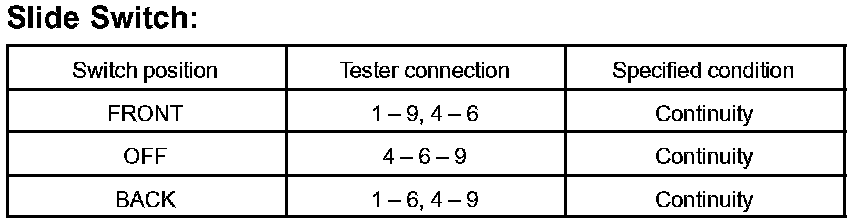

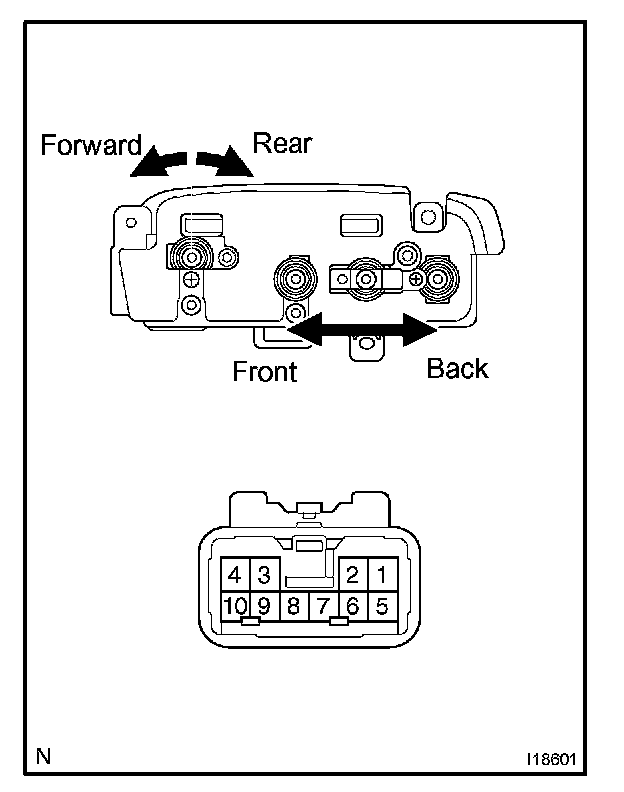

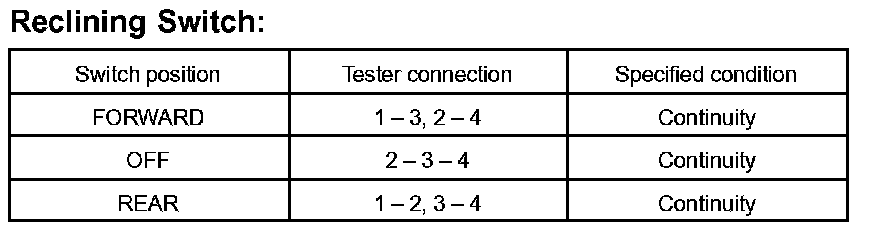

INSPECT PASSENGER'S POWER SEAT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
