Power Mirror Switch: Testing and Inspection

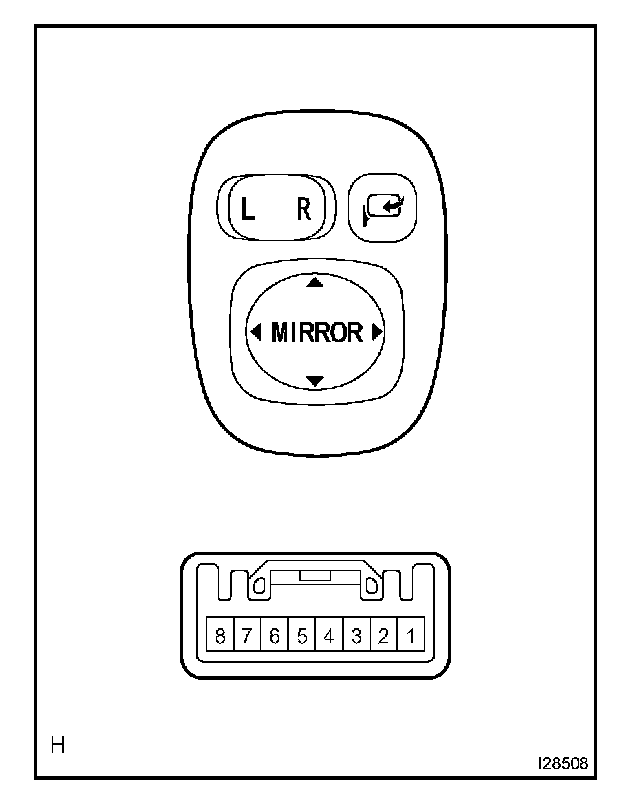

w/o Retract Mirror and Driving Position Memory:




a. Left Side:

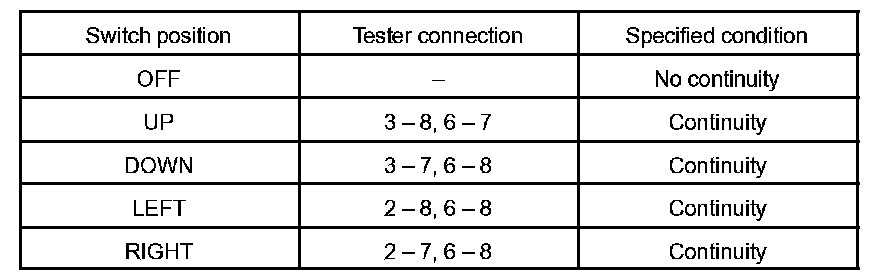

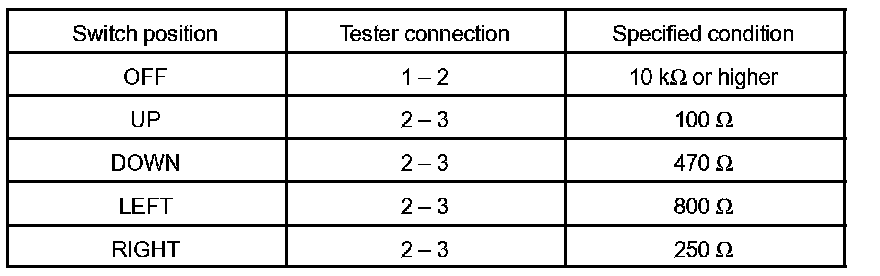

INSPECT MIRROR SWITCH CONTINUITY




b. Right Side:

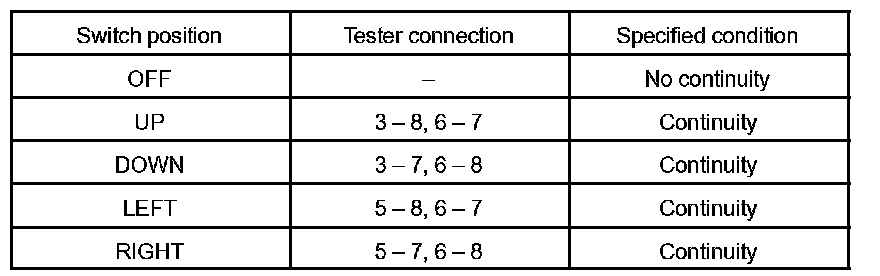

INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

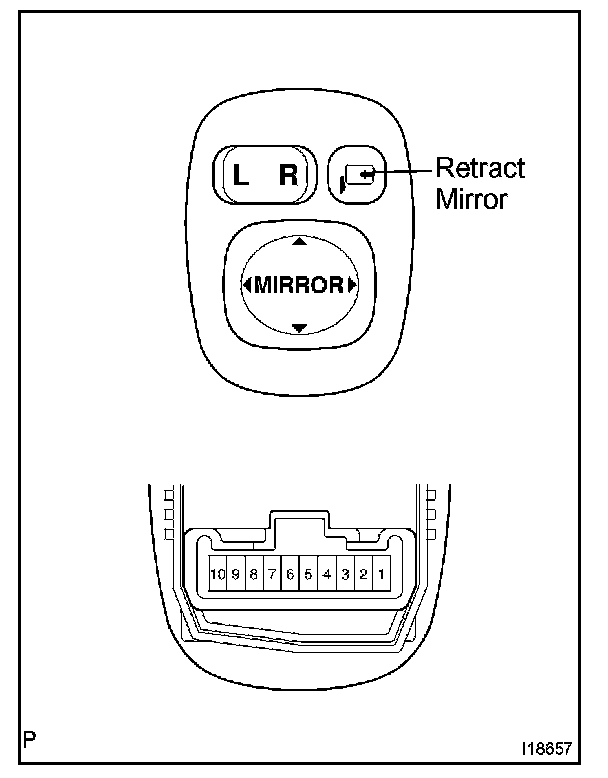

w/ Retract Mirror only:




a. Left Side:

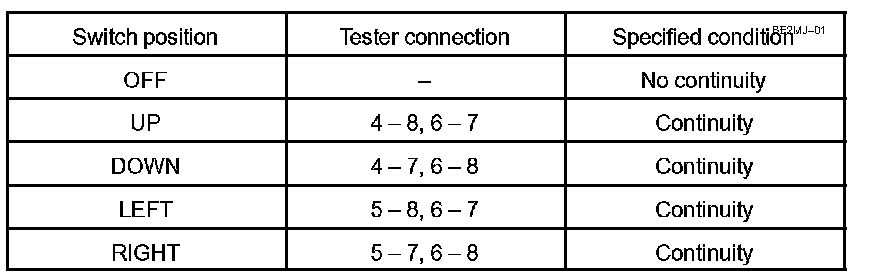

INSPECT MIRROR SWITCH CONTINUITY




b. Right side:
INSPECT MIRROR SWITCH CONTINUITY
if continuity is not as specified, replace the switch.

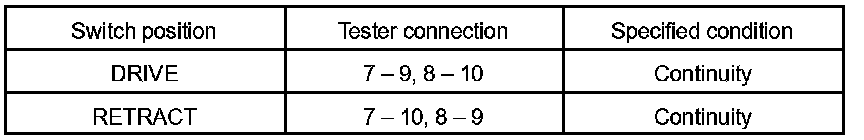

c. INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

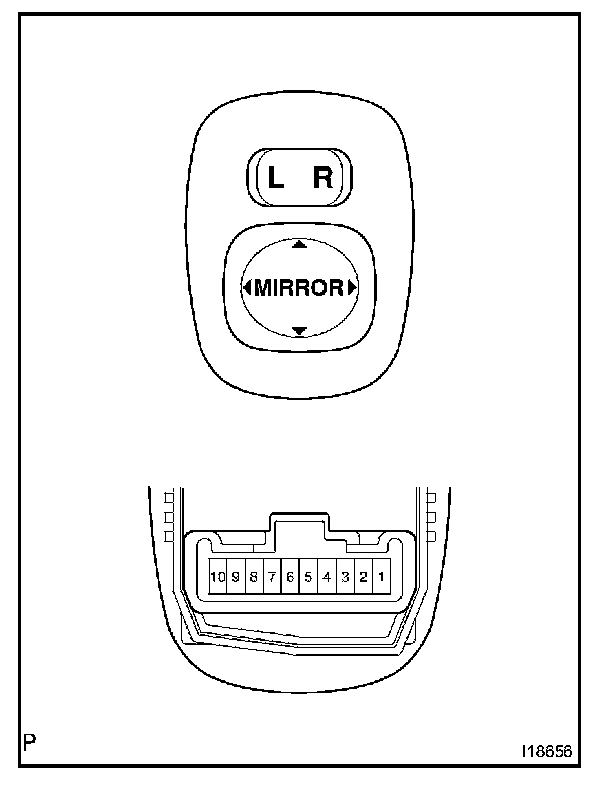

w/o Retract Mirror and Driving Position Memory:




a. Left Side:

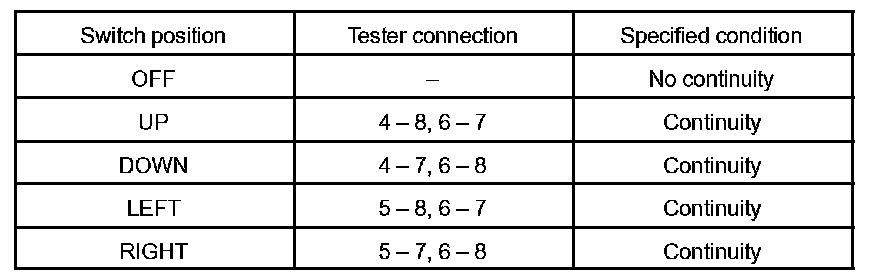

INSPECT MIRROR SWITCH CONTINUITY




b. Right Side:
INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

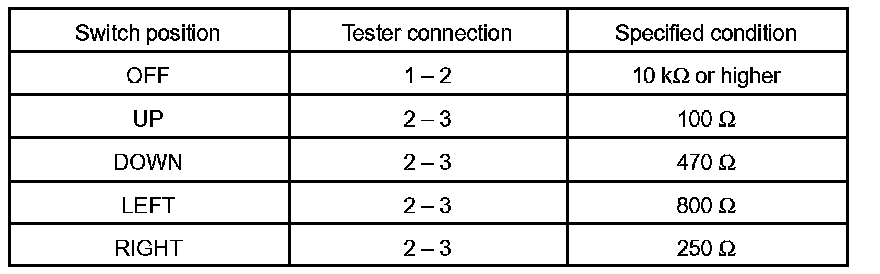

c. INSPECT MIRROR SWITCH CONTINUITY
