Power Door Lock Switch: Testing and Inspection

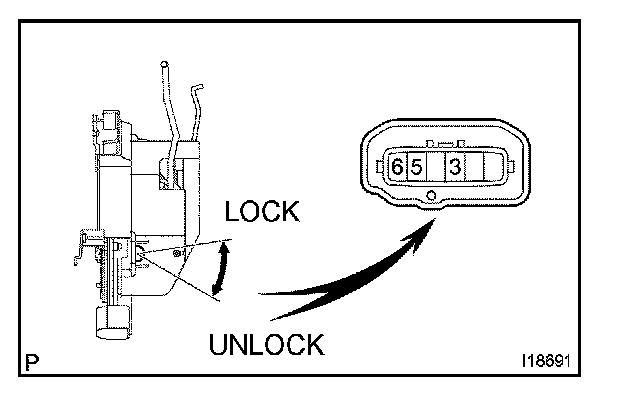

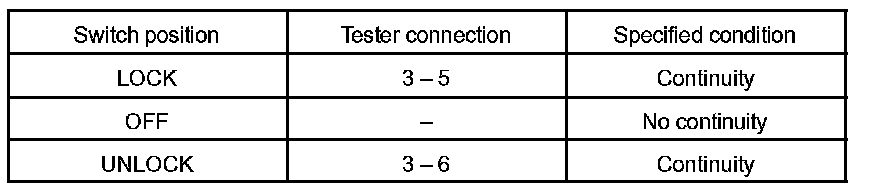

INSPECT DRIVER DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the door lock motor.

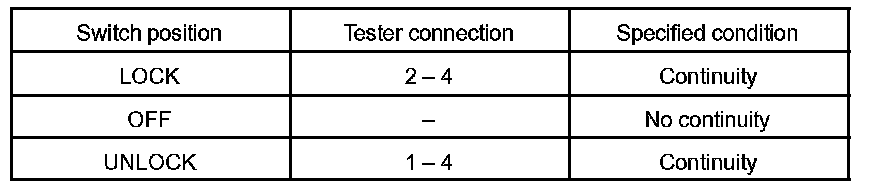

INSPECT PASSENGERS DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the door lock motor.

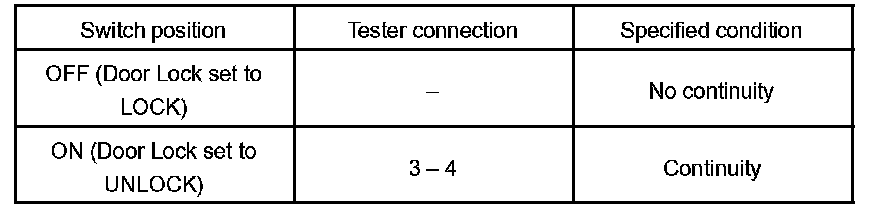

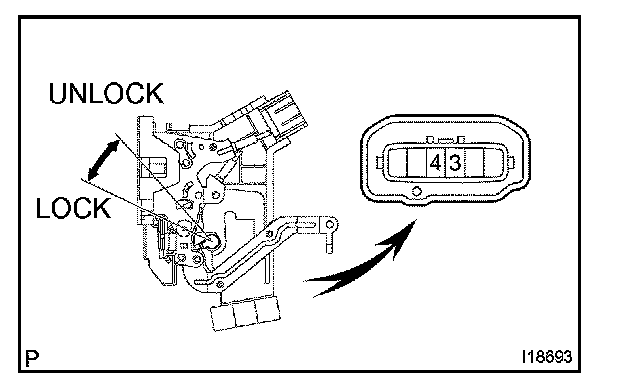

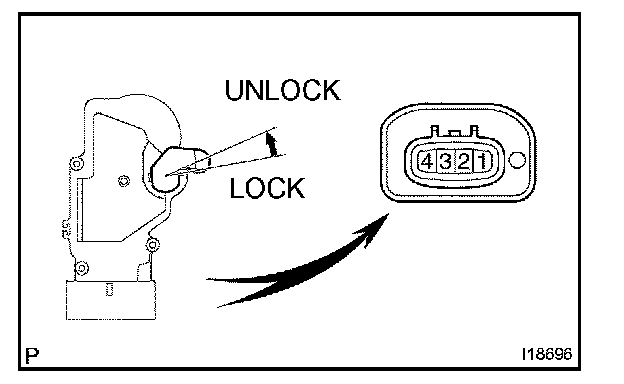

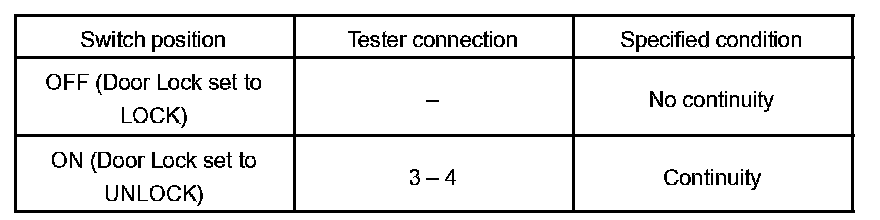

INSPECT DRIVERS DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the door lock motor.

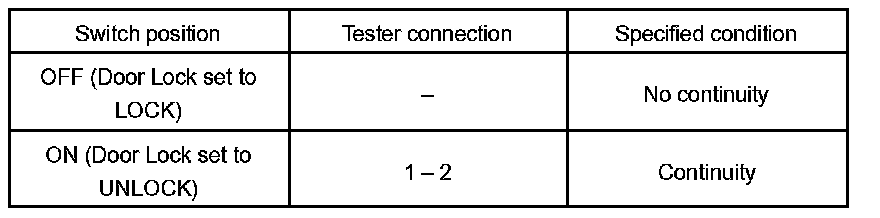

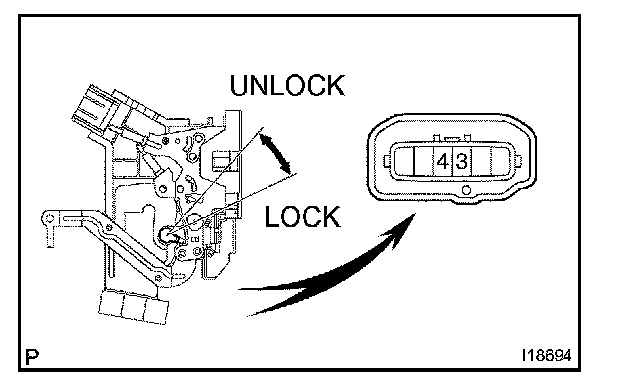

INSPECT PASSENGERS DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the door lock motor.

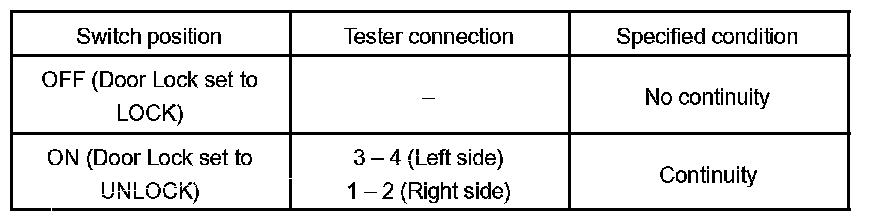

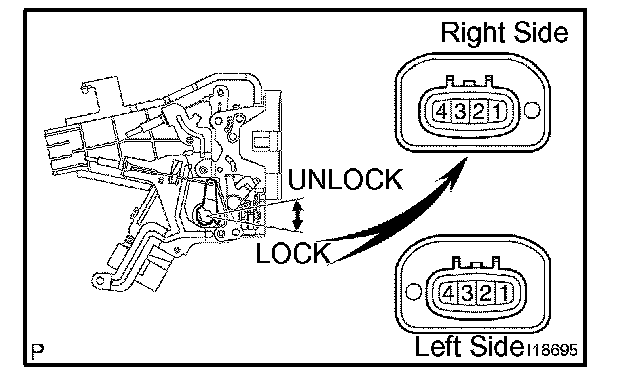

INSPECT REAR DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the door lock motor.







INSPECT BACK DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the back door lock motor.
