Theft Deterrent Horn Circuit

THEFT DETERRENT HORN CIRCUIT

CIRCUIT DESCRIPTION

During warning of the theft deterrent system, the body ECU activates the theft deterrent horn.

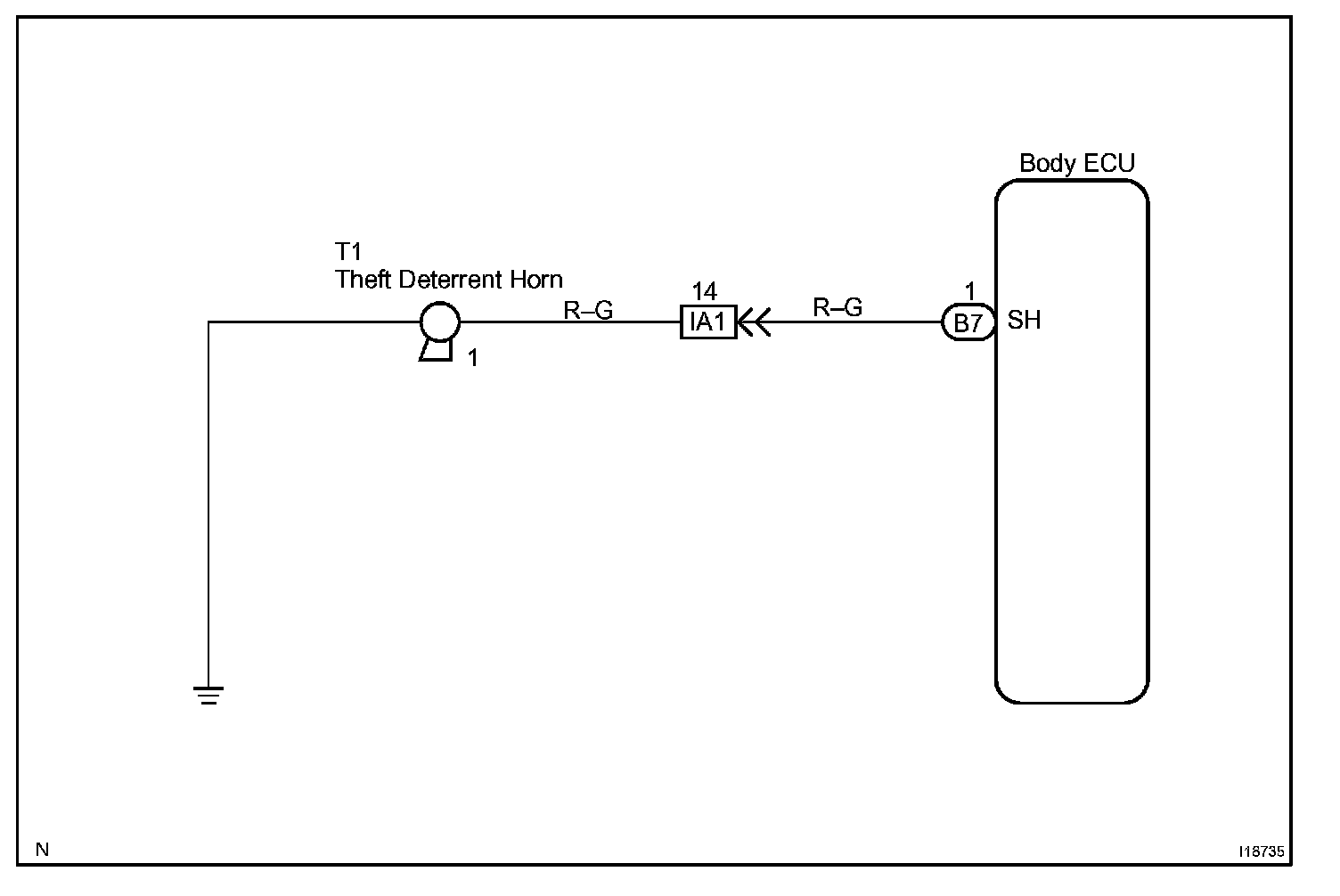

Wiring Diagram:

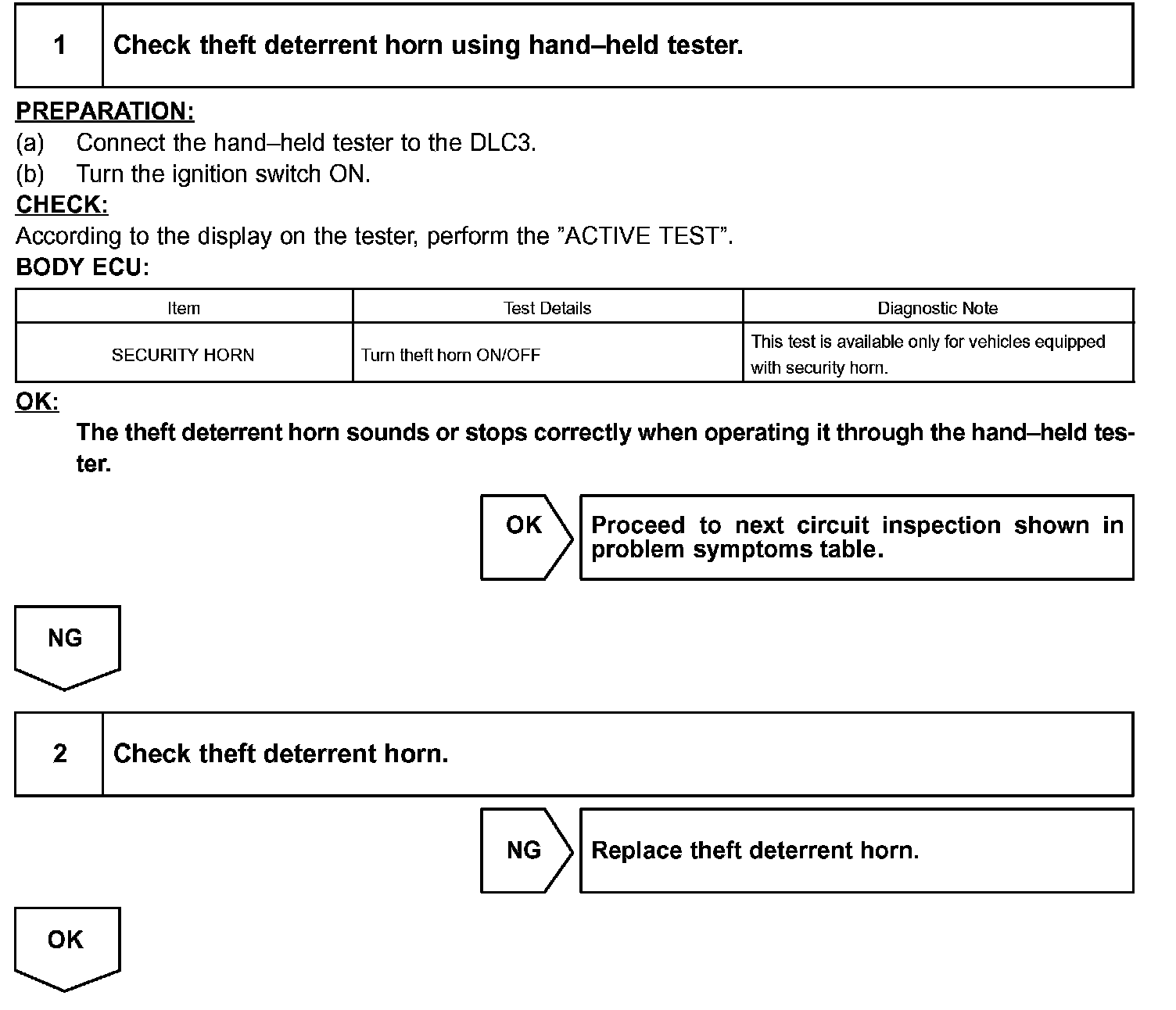

Step 1 - 2:

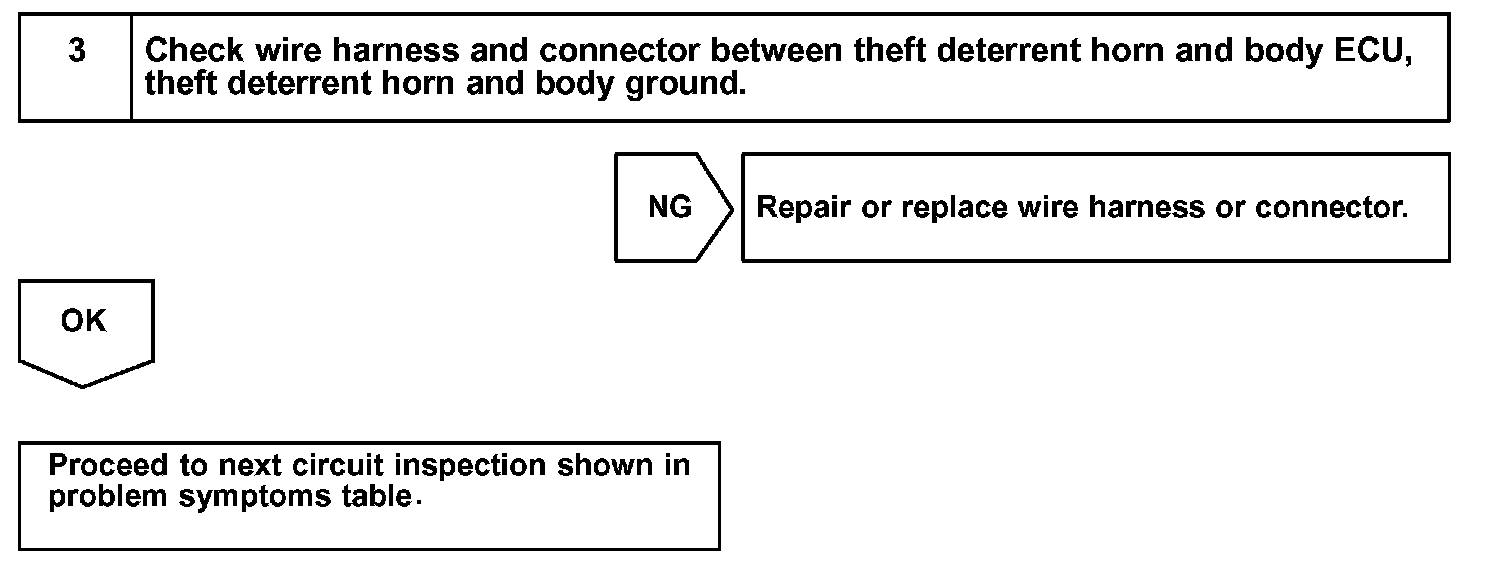

Step 3:

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
