Rear Wiper Switch and Motor Circuit

REAR WIPER SWITCH AND MOTOR CIRCUIT

CIRCUIT DESCRIPTION

Body ECU judges the switch position with the terminal voltage of the rear wiper and washer switch and runs the washer motor.

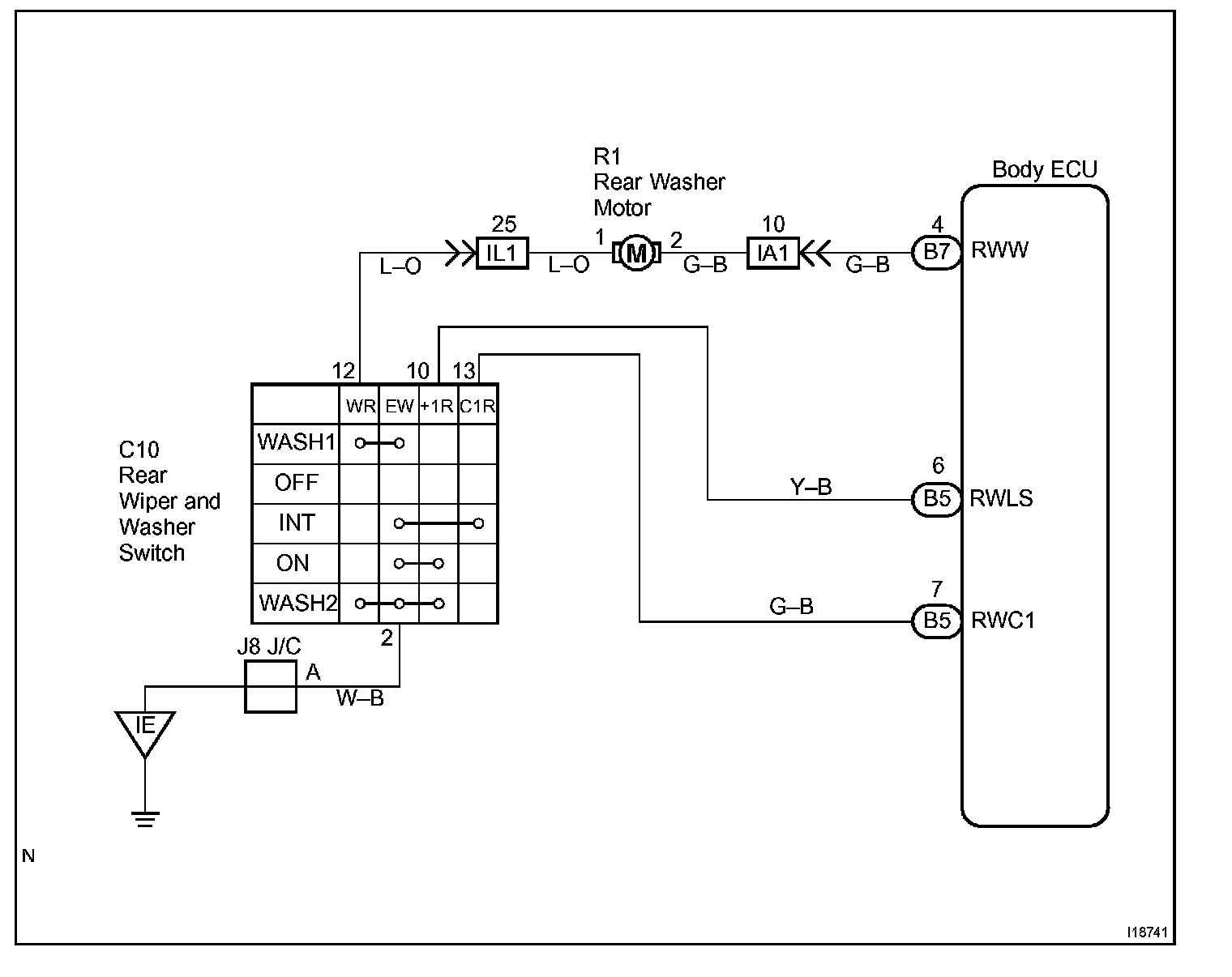

Wiring Diagram:

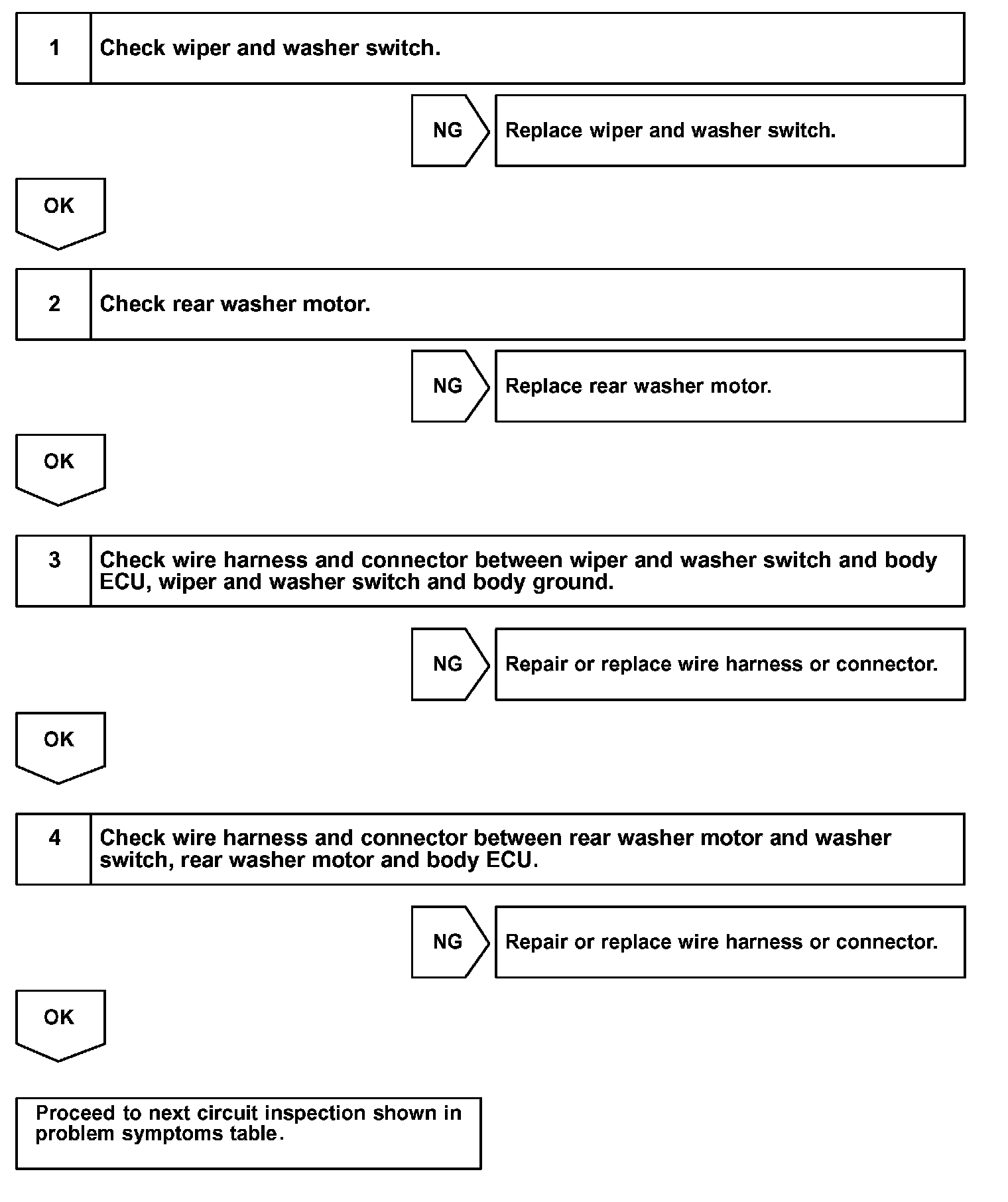

Step 1 - 4:




INSPECTION PROCEDURE
