Engine Hood Courtesy Switch Circuit

ENGINE HOOD COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The engine hood courtesy switch is built into the engine hood lock assembly, and is turned on when the engine hood is opened and goes off when the engine hood is closed.

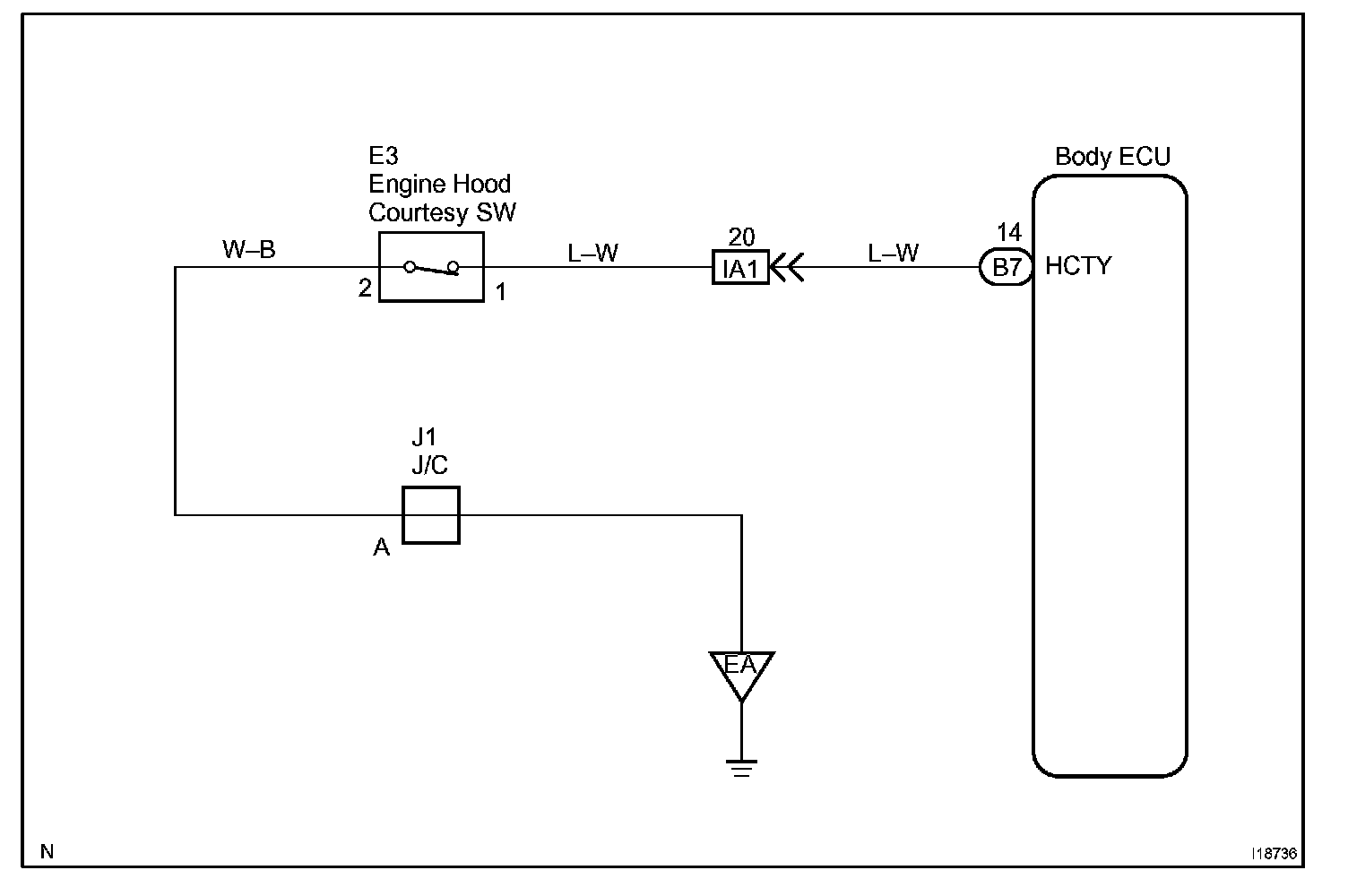

Wiring Diagram:

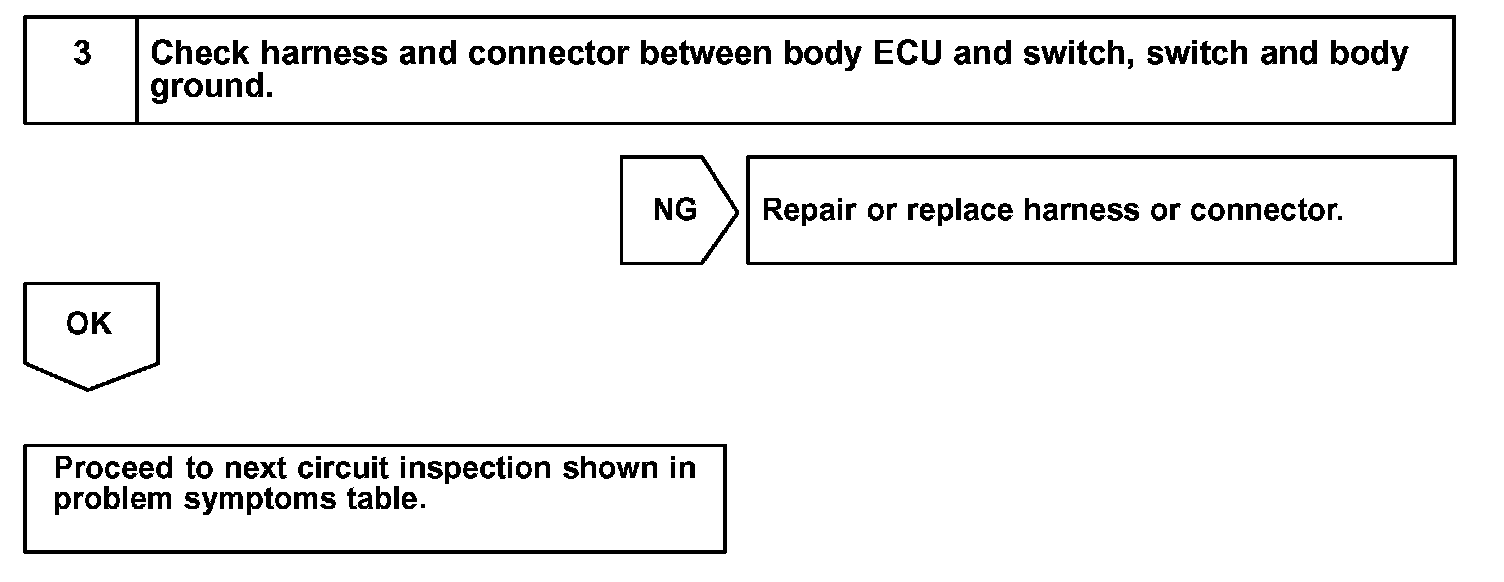

Step 1 - 2:

Step 3:

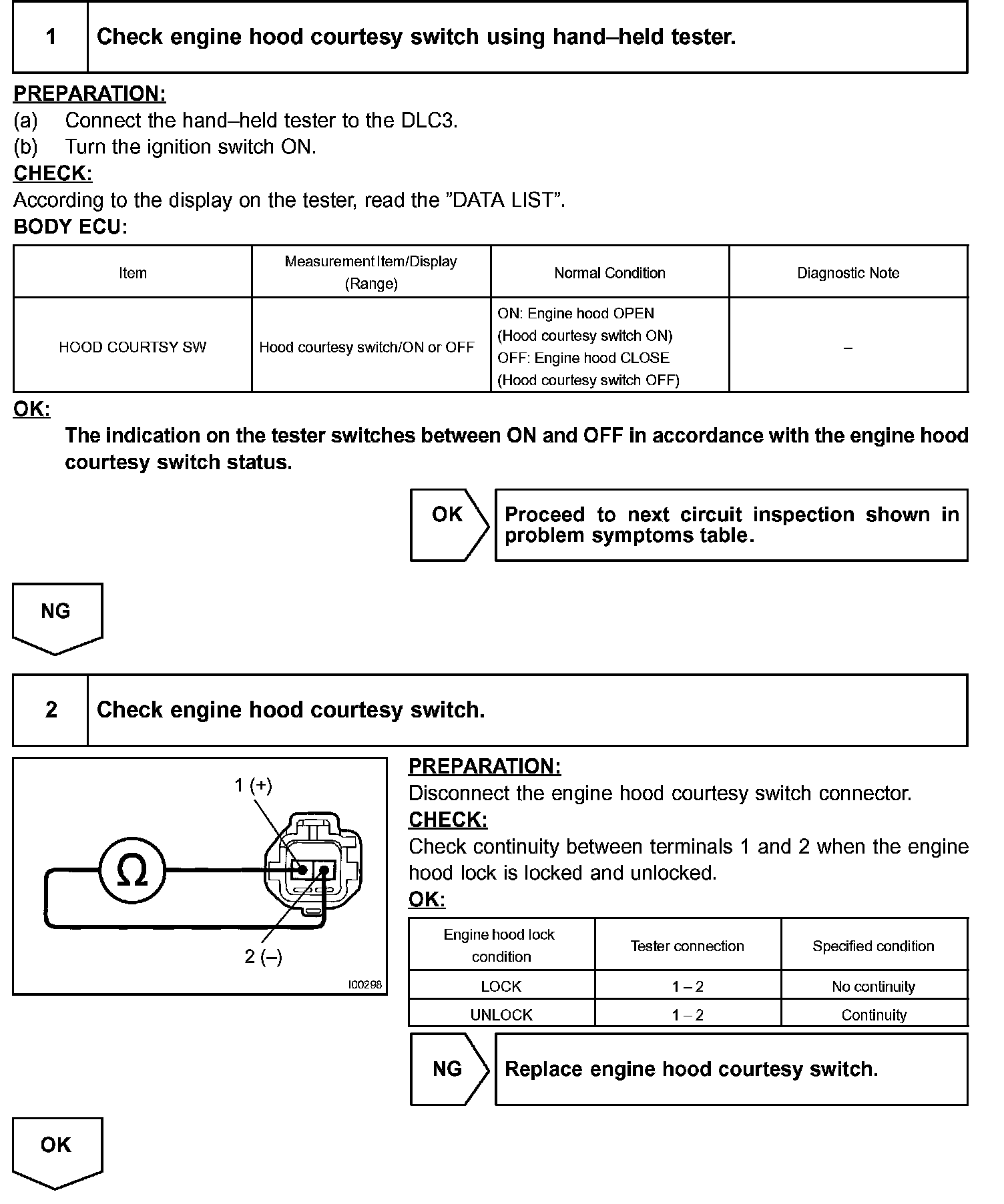

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
