Rear Wiper Motor Circuit

REAR WIPER MOTOR CIRCUIT

CIRCUIT DESCRIPTION

The wiper motor is controlled by the back door ECU.

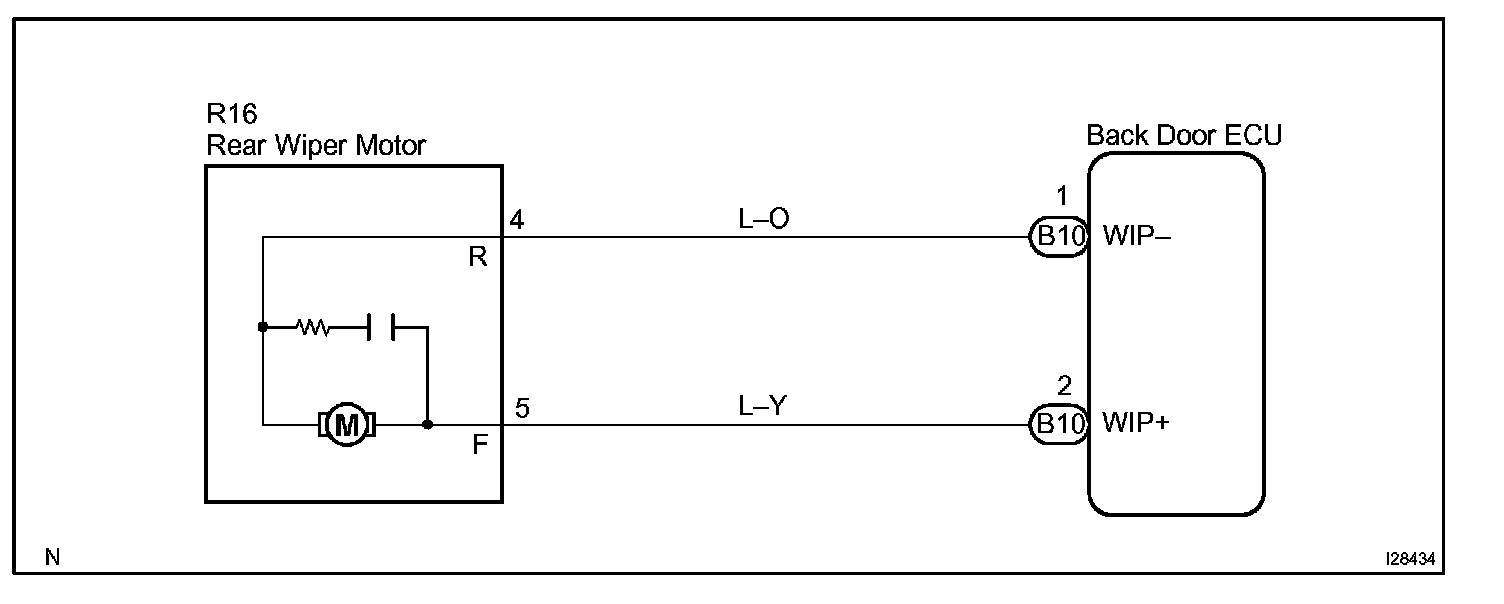

Wiring Diagram:

Step 1 - 3:

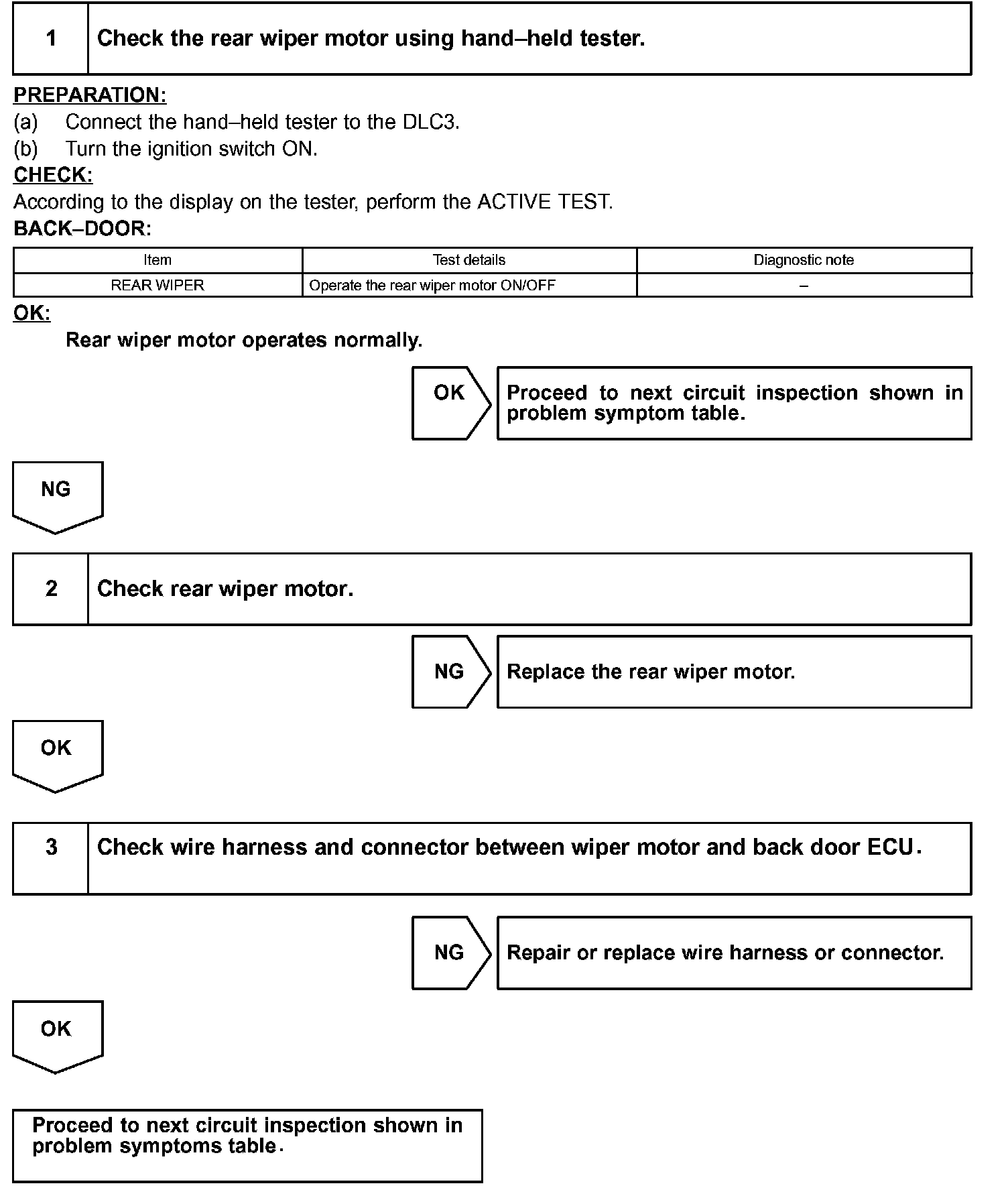

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
