Luggage Room Light Circuit

LUGGAGE ROOM LIGHT CIRCUIT

CIRCUIT DESCRIPTION

When the luggage room light and the rear room light are turned to the DOOR position, and any door is opened, voltage is applied to the LGLP terminal of the back door ECU, and voltage is output from the ILE terminal.

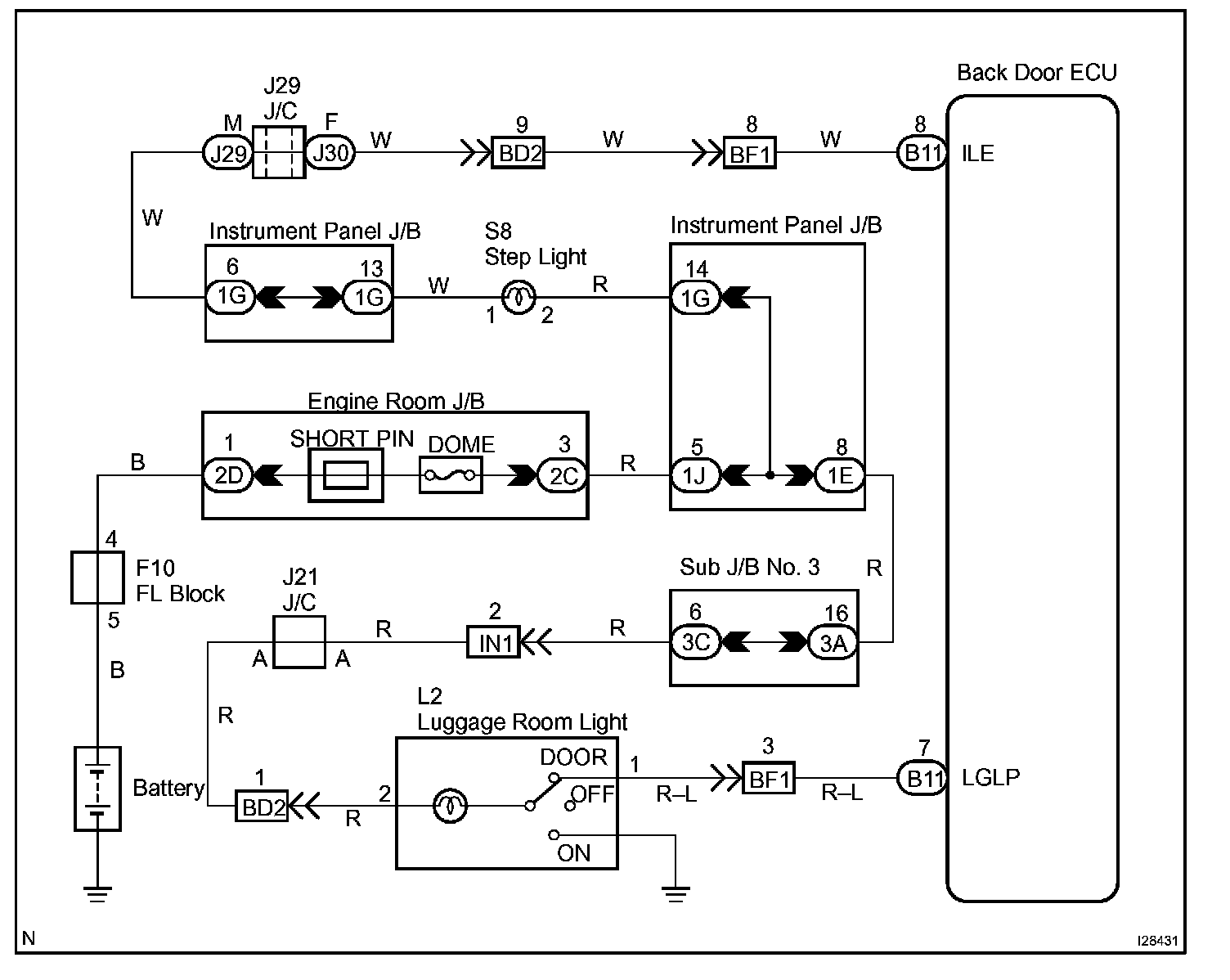

Wiring Diagram:

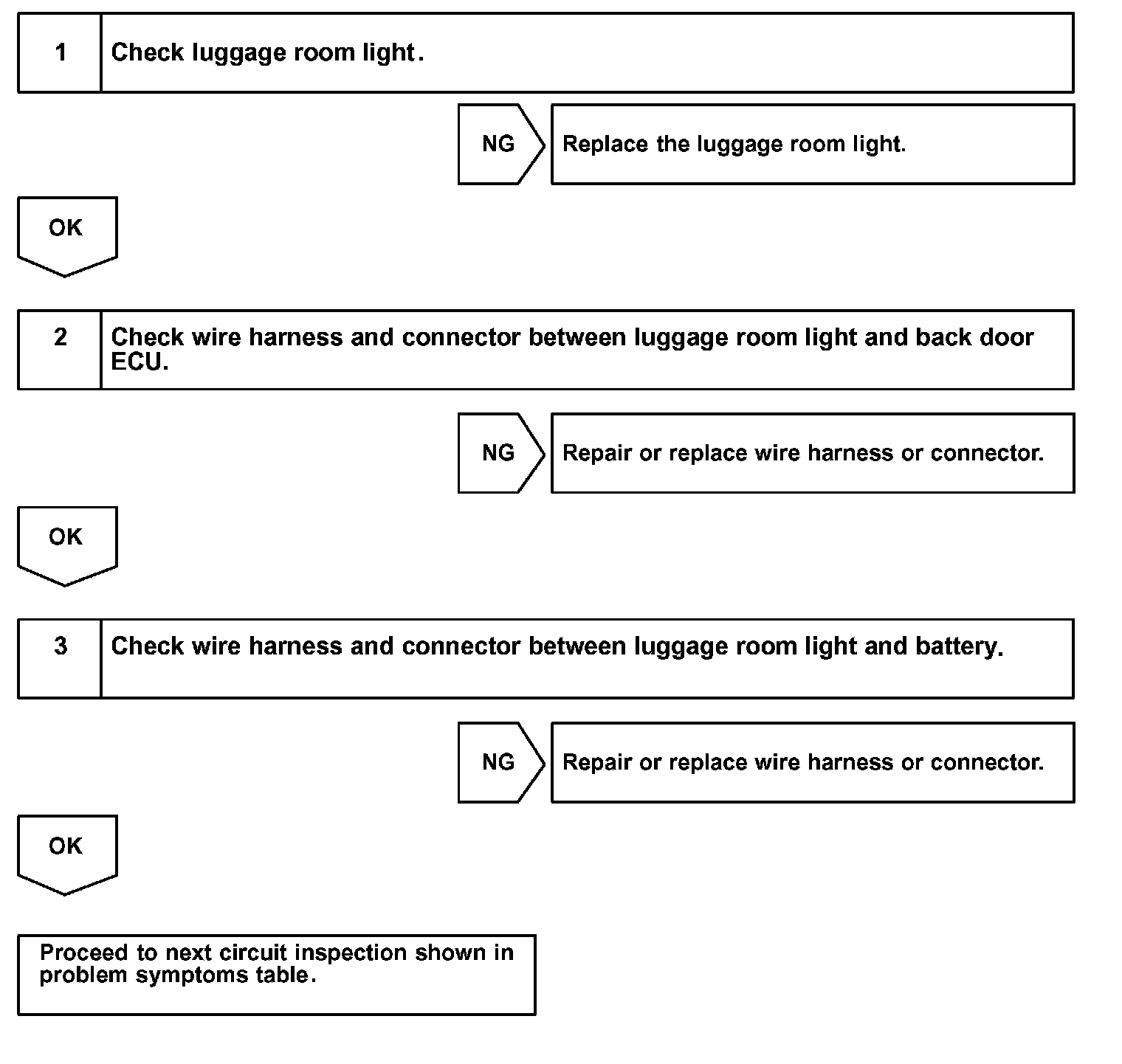

Step 1 - 3:

INSPECTION PROCEDURE
