Sound Signal Circuit (Multi-Display Controller Sub-Assy - VTR Terminal)

SOUND SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - VTR TERMINAL)

CIRCUIT DESCRIPTION

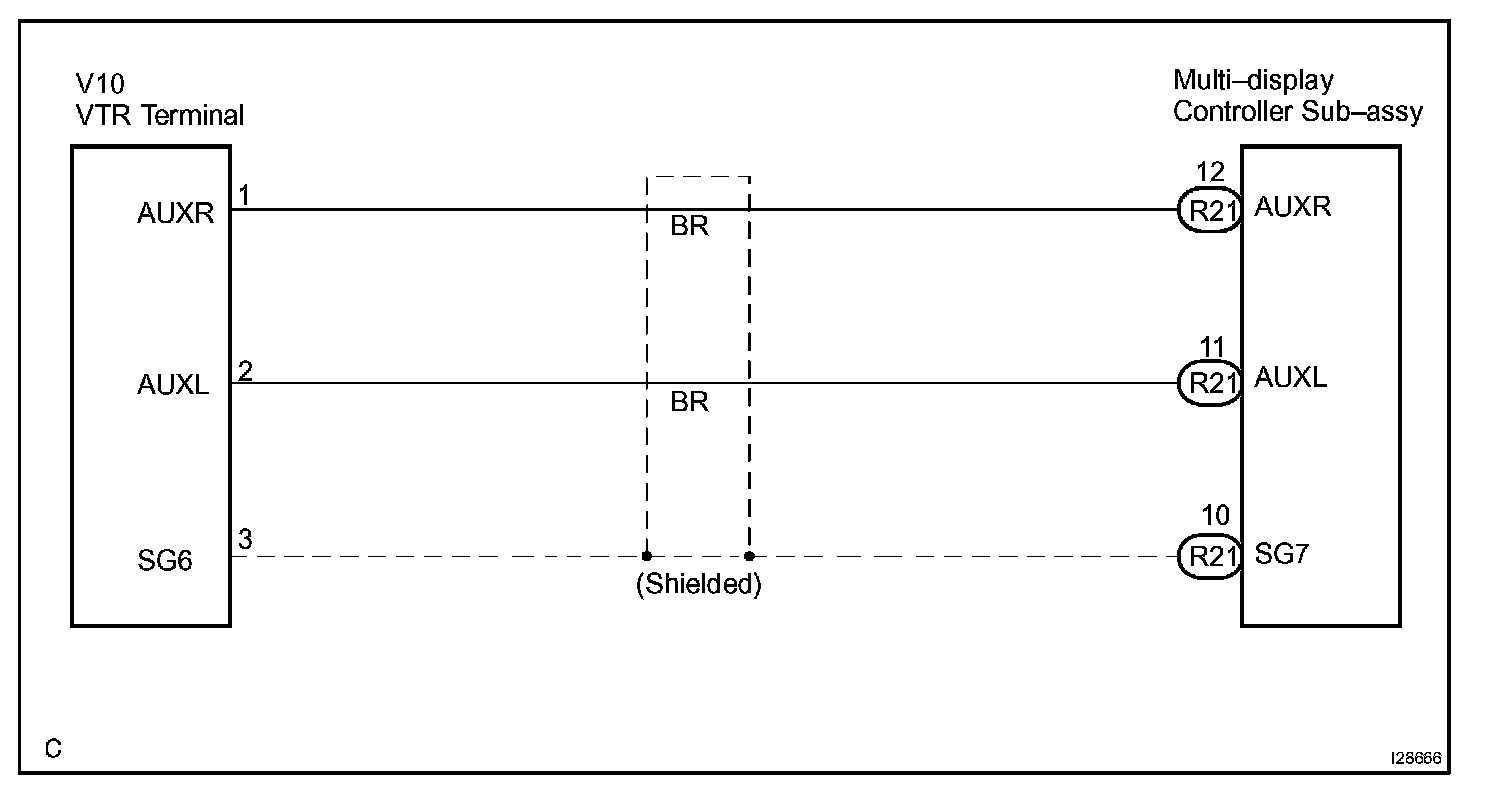

This is the sound signal circuit from the VTR terminal to the multi-display controller sub-assy.
