Sound Signal Circuit (Multi-Display Controller Sub-Assy - Television Display Assy)

SOUND SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - TELEVISION DISPLAY ASSY)

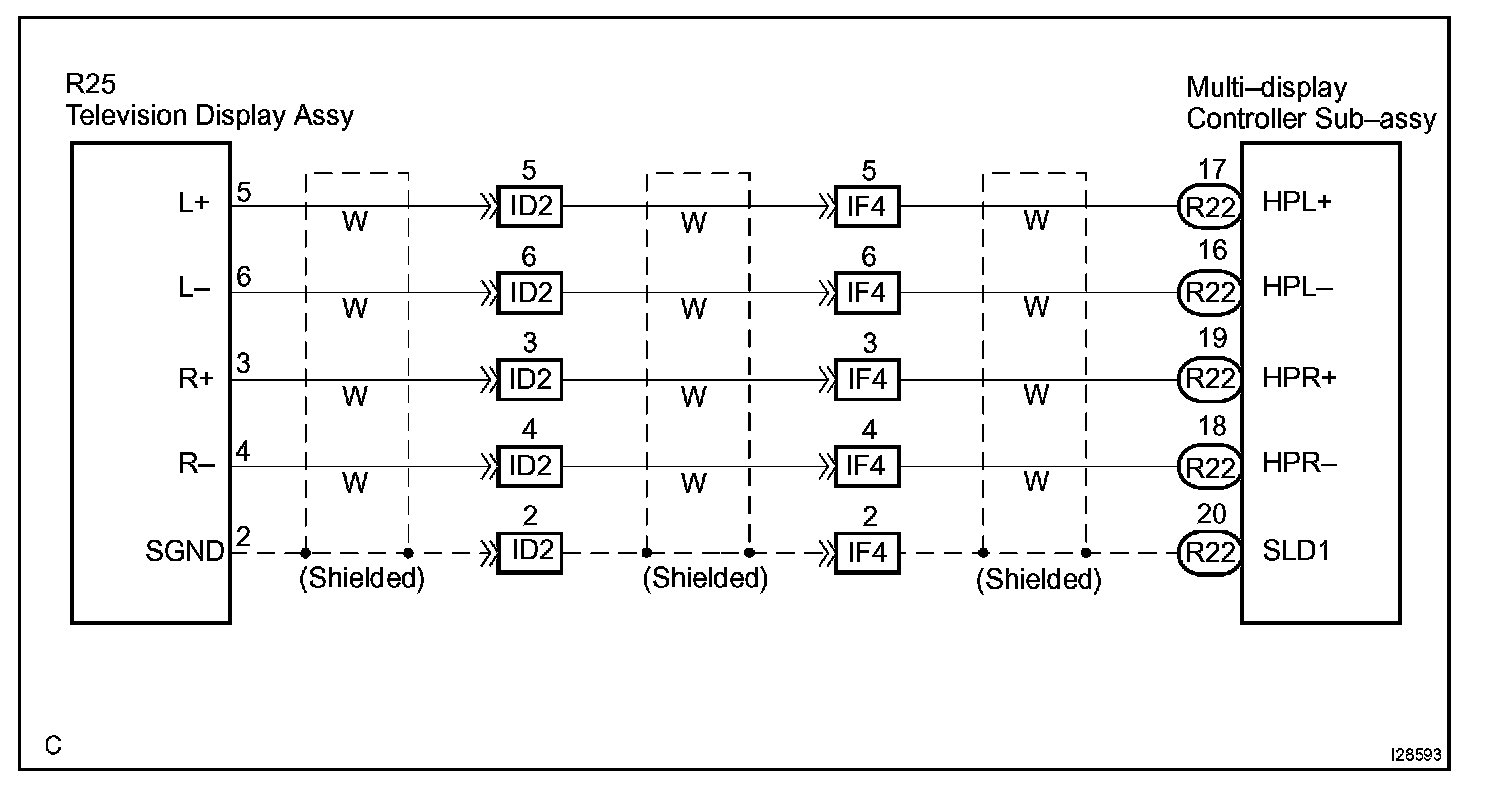

CIRCUIT DESCRIPTION

This is the sound signal circuit from the television display assy to the multi-display controller sub-assy.
