Sound Signal Circuit (Multi-Display Controller Sub-Assy - Headphone Terminal)

SOUND SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - HEADPHONE TERMINAL)

CIRCUIT DESCRIPTION

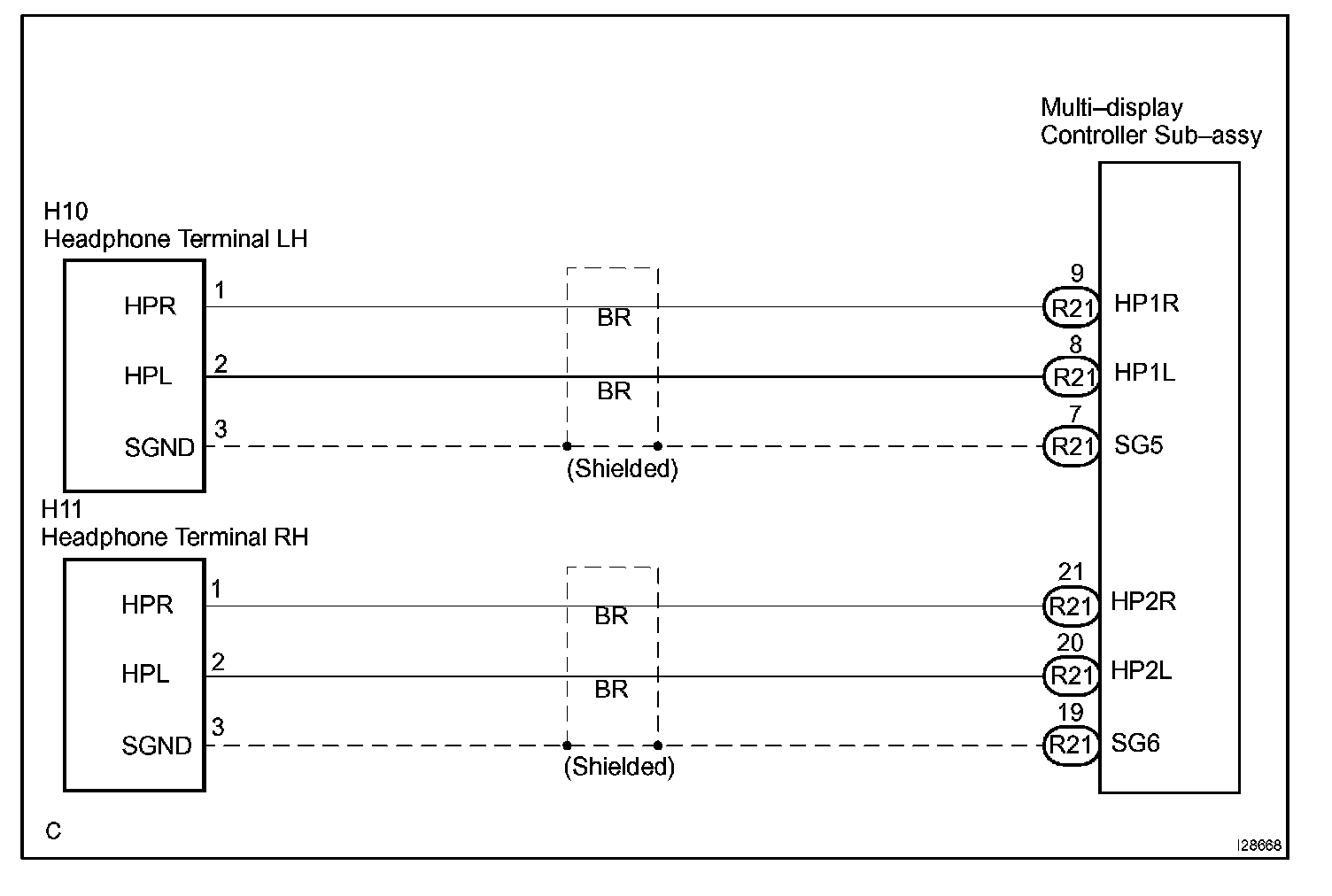

This is the sound signal circuit from the headphone terminal to the multi-display controller sub-assy.
