Sound Signal Circuit (Multi-Display Controller Sub-Assy - Disc Player Controller)

SOUND SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - DISC PLAYER CONTROLLER)

CIRCUIT DESCRIPTION

This is the sound signal circuit from the disc player controller to the multi-display controller sub-assy.

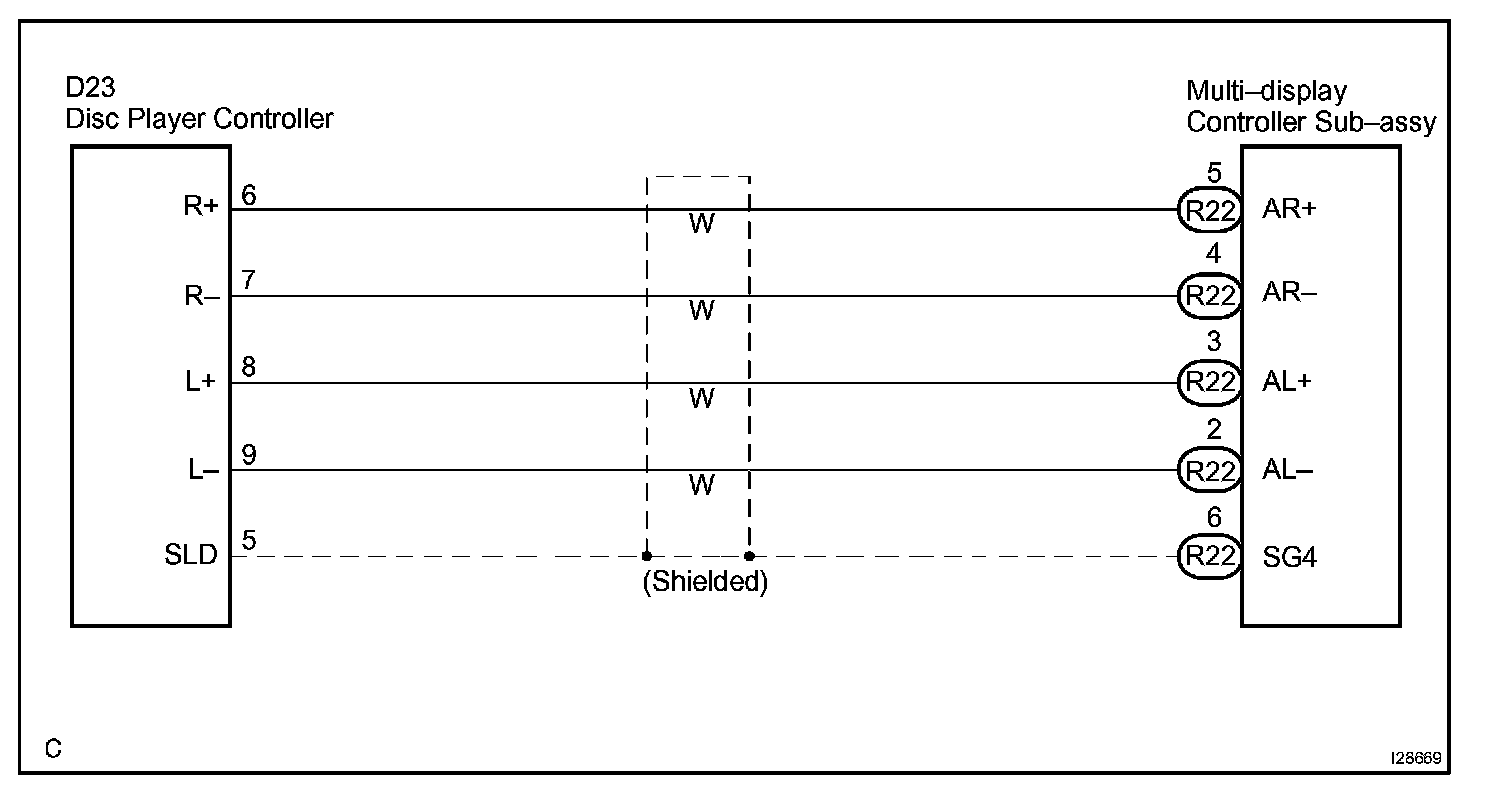

Wiring Diagram:

Step 1:

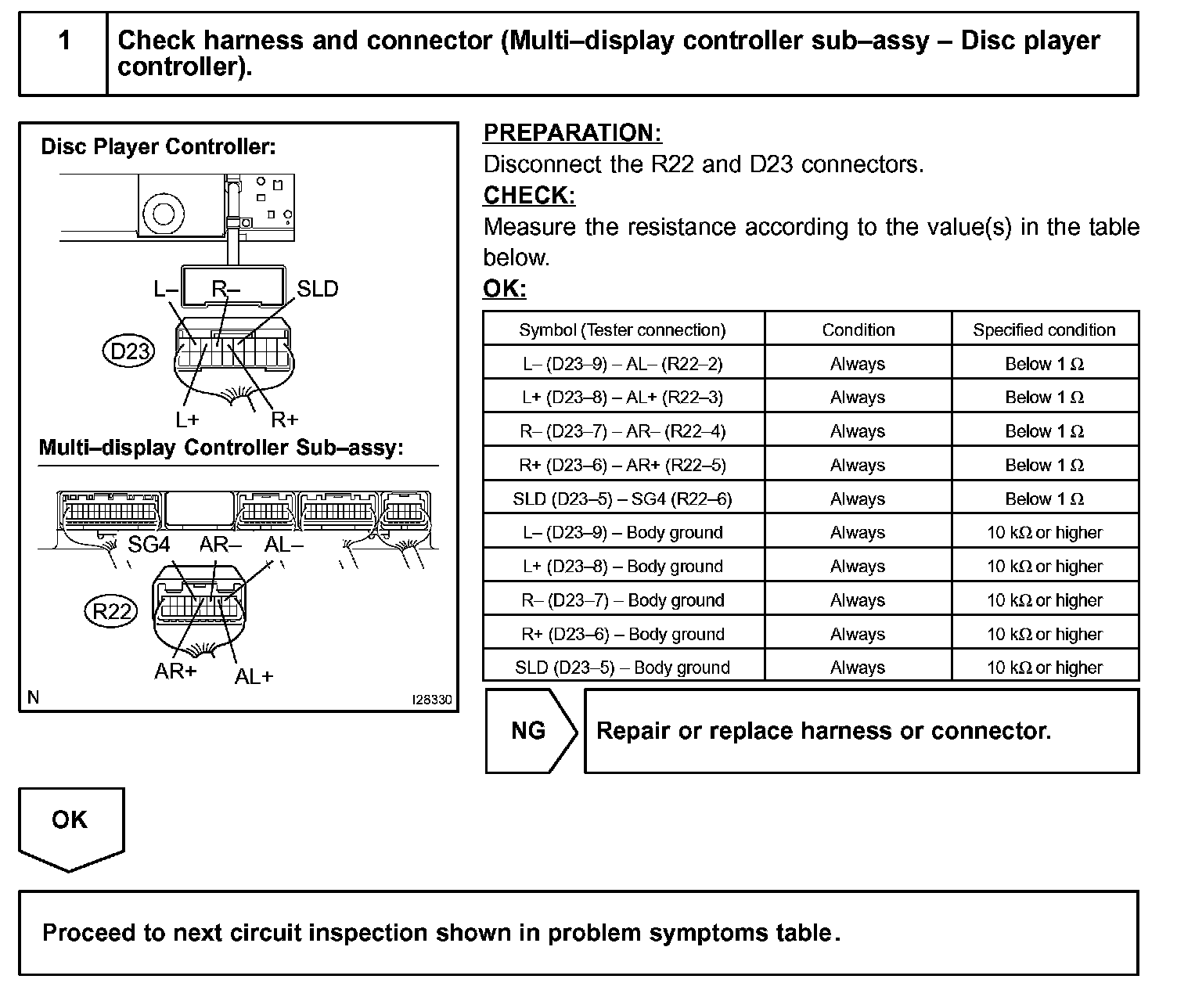

INSPECTION PROCEDURE
