Sound Signal Circuit (From Multi-Display Controller Sub-Assy to Radio Receiver Assy)

SOUND SIGNAL CIRCUIT (FROM MULTI-DISPLAY CONTROLLER SUB-ASSY TO RADIO RECEIVER ASSY)

CIRCUIT DESCRIPTION

This is the sound signal circuit from the multi-display controller sub-assy to the radio receiver assy.

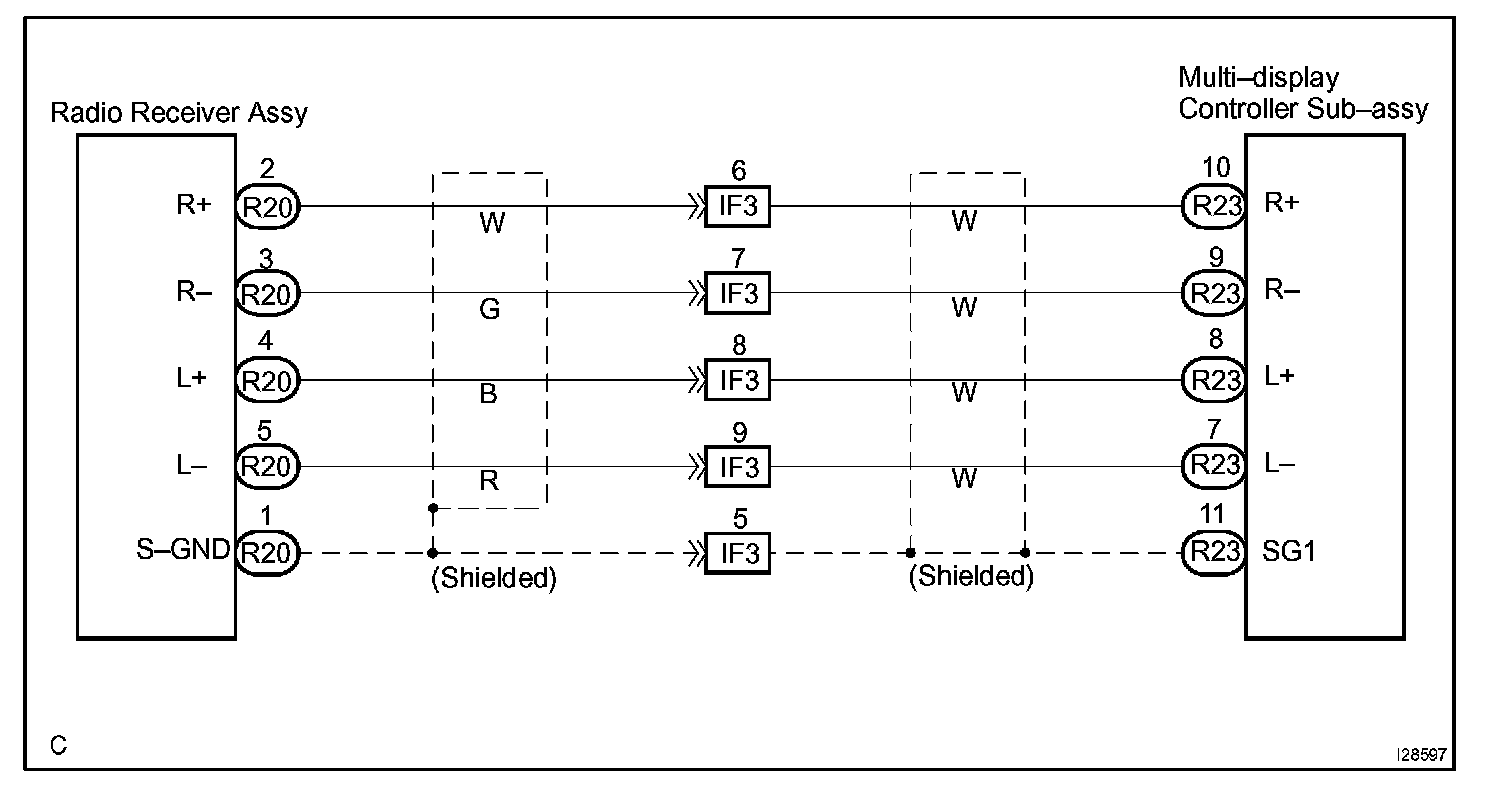

Wiring Diagram:

Step 1:

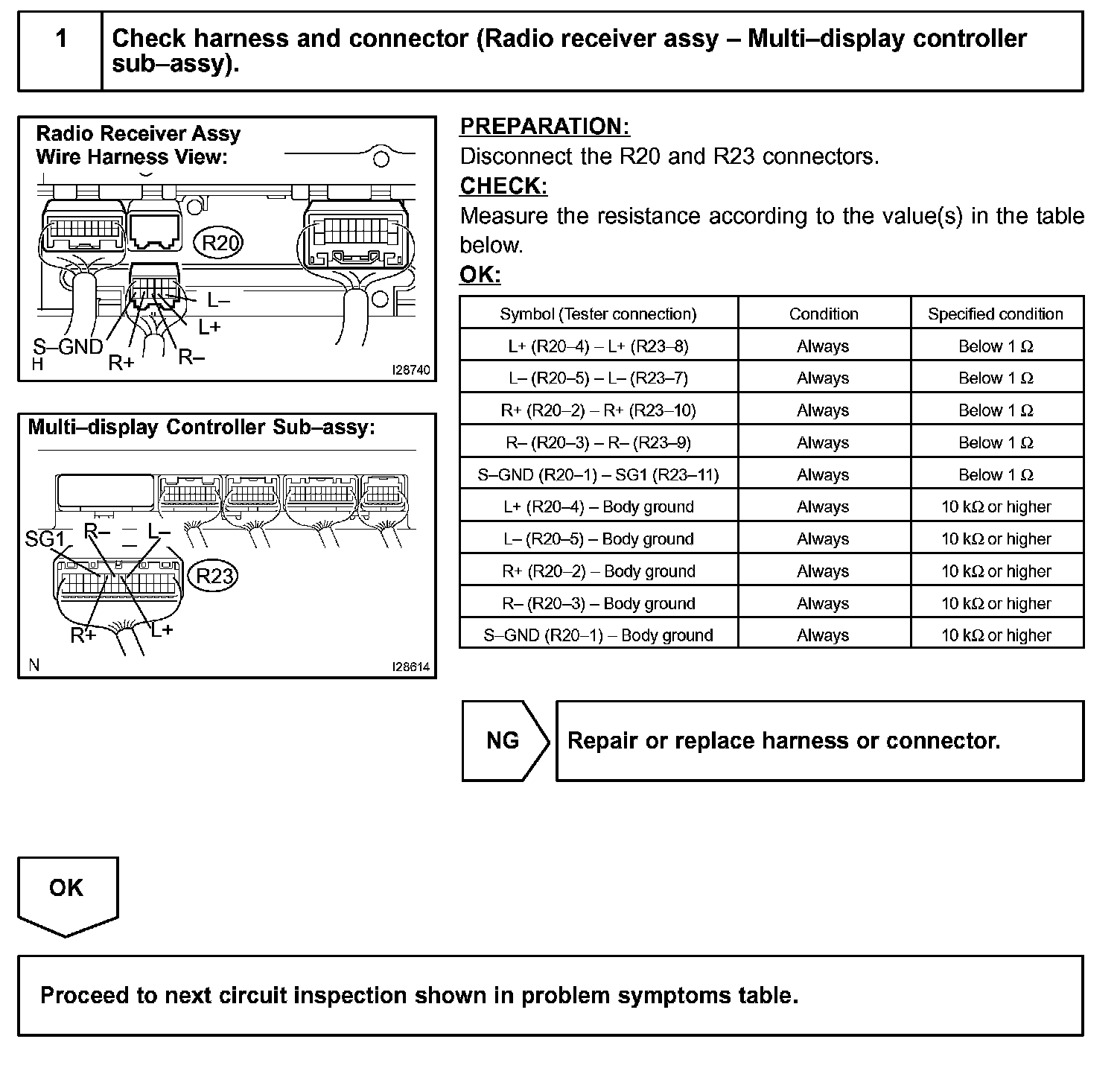

INSPECTION PROCEDURE
