Service Check Mode

CHECK MODE PROCEDURE

SERVICE CHECK MODE






HINT: Service Check Mode is operated.

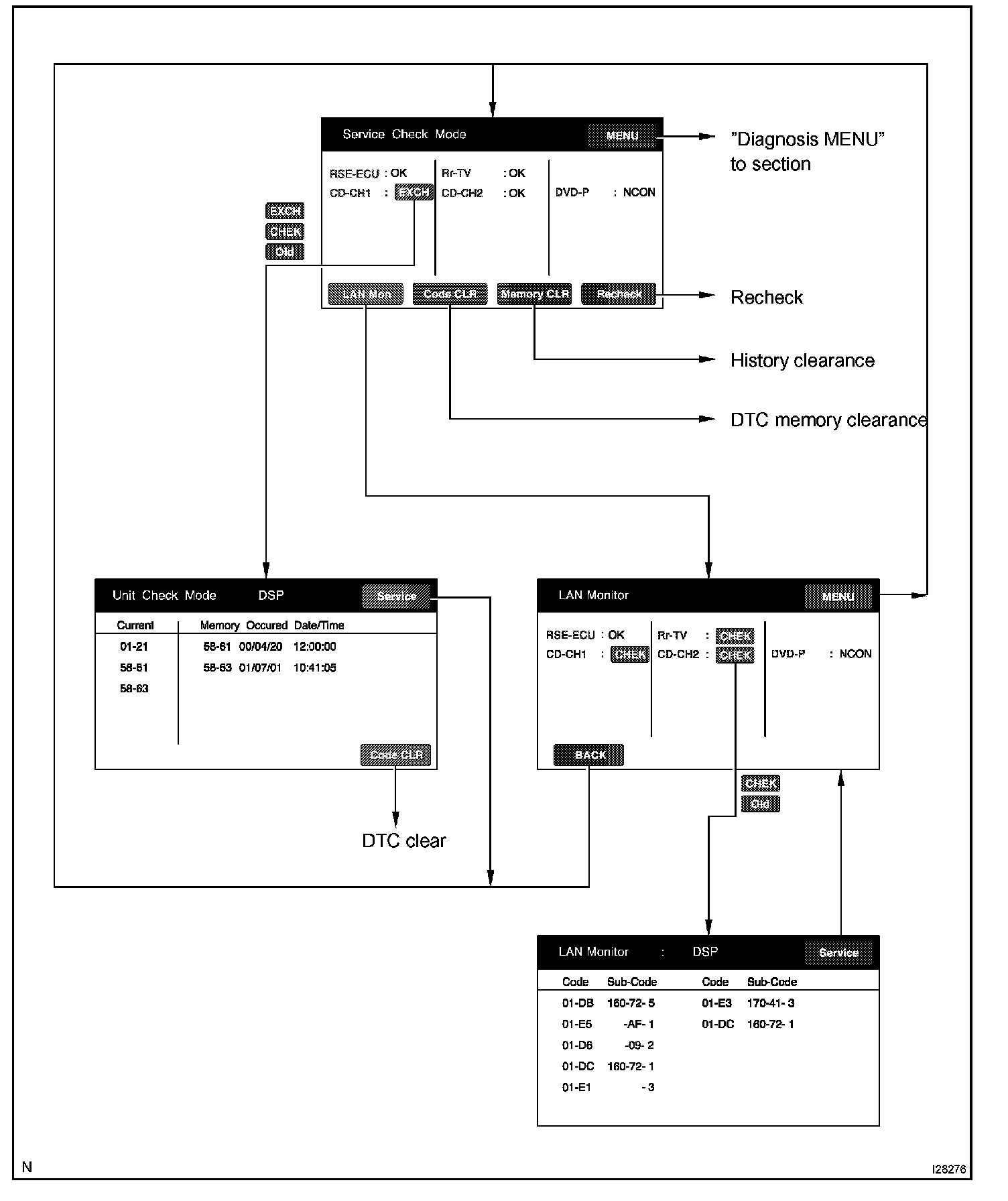

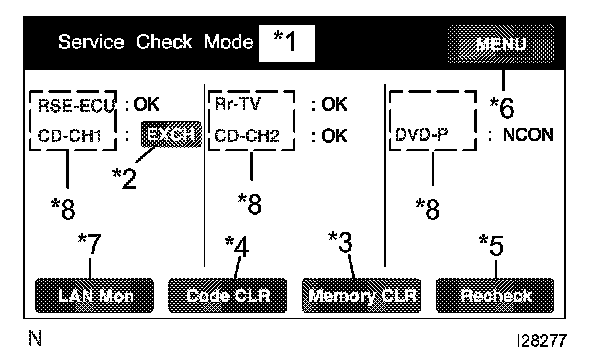

Service Check Mode
1. Start the Diagnosis System.

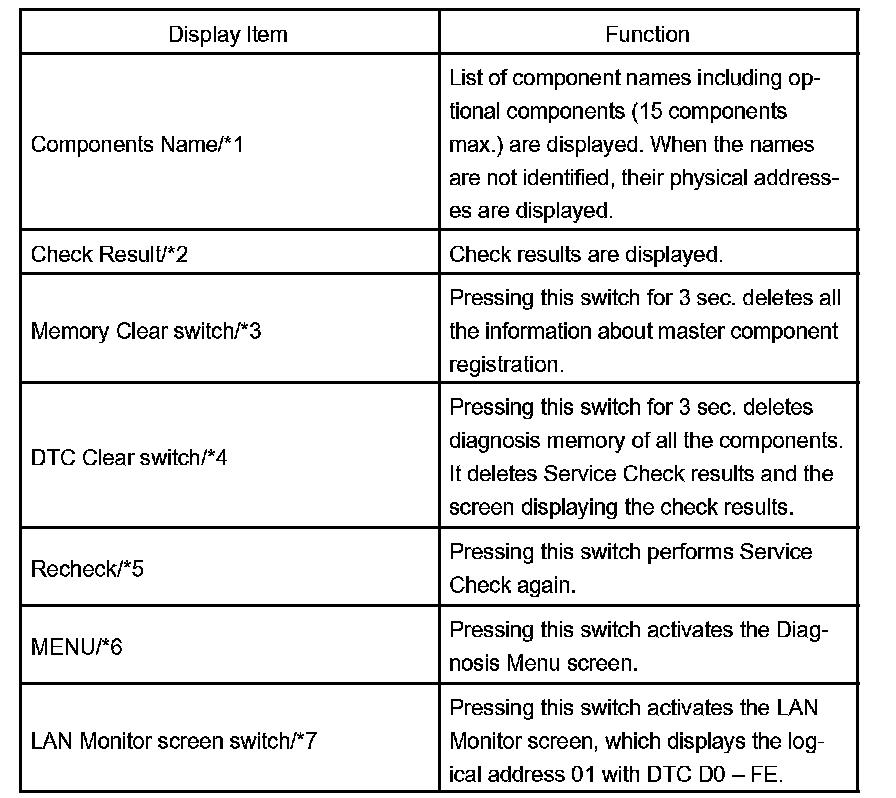

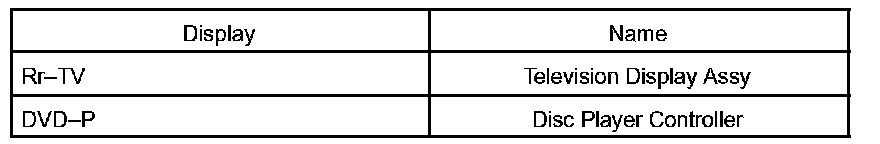

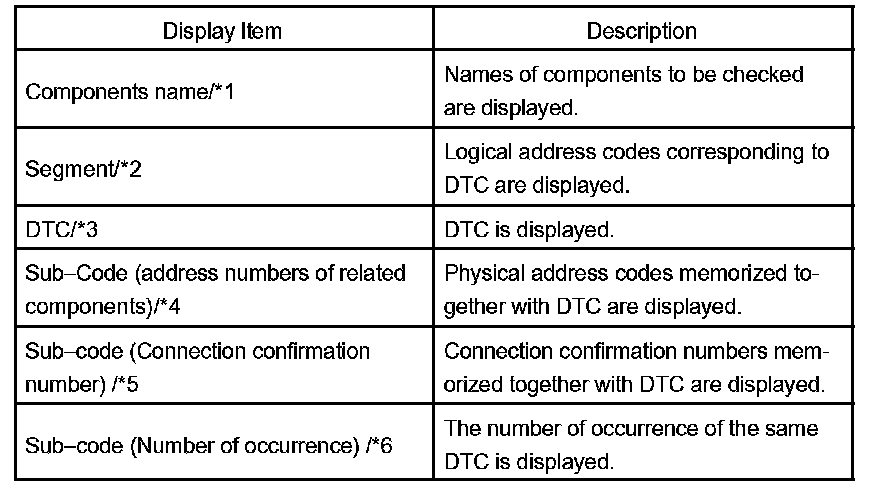

Components:/*8

HINT: Service Check displays the check results based on the information obtained from each component's response to "System Check Execution" and "Diagnosis Memory Request", and the information of "Current DTC Notification" (the Unit Check that will be displayed on the next screens.).

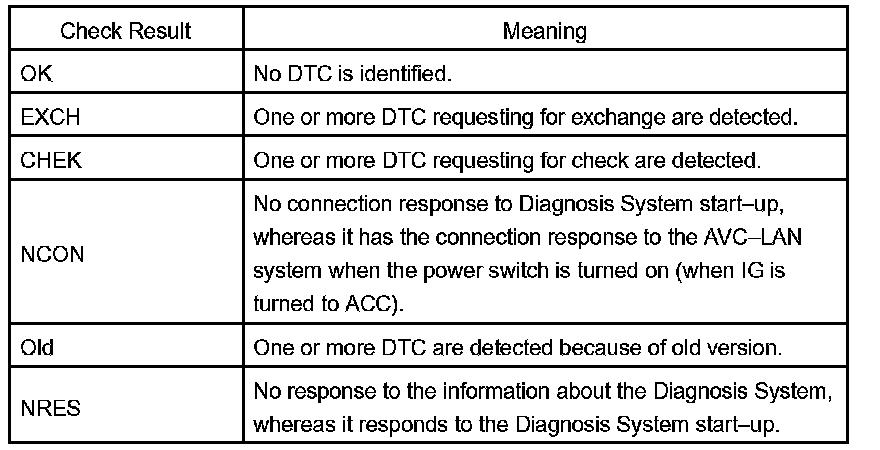

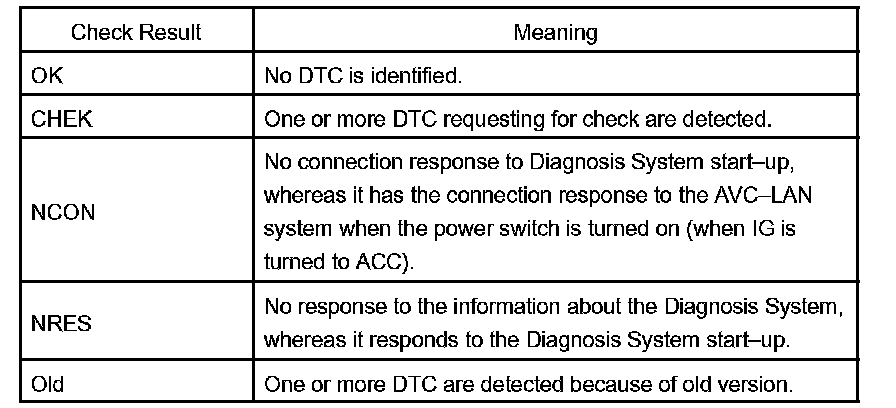

2. Read Check Result

HINT:
- After repair and check, press "Code CLR" for more than 3 sec. to delete diagnosis memory.
- After deleting diagnosis memory, press "Recheck" and make sure "OK" is displayed on the screen.

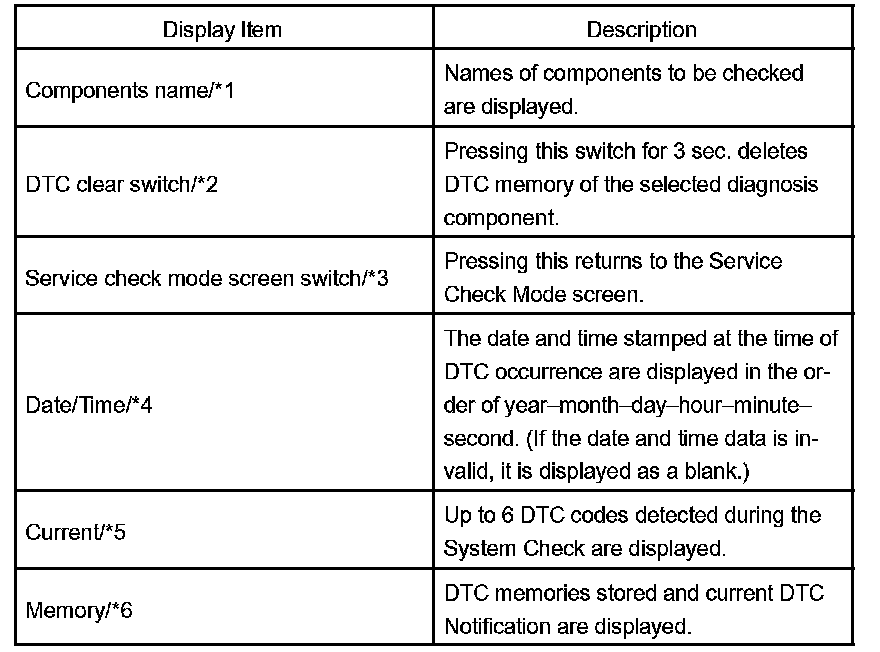

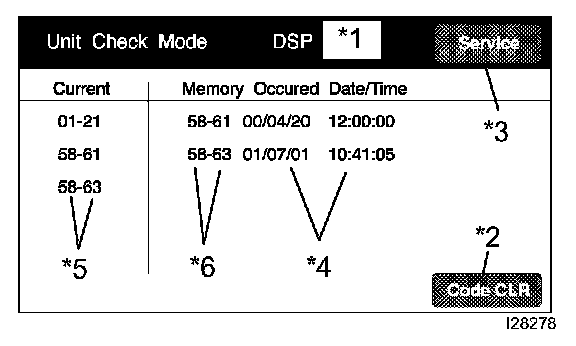

3. "EXCH", "CHEK" and "Old" can be used as switches to activate Unit Check Mode" for detail information. Check troubled parts of the components in these modes by referring to the DTC code list.

HINT:
- Detecting Unit DTC activates the Unit Check Mode on the screen.
- In the Unit Check Mode, DTC which is identified as "EHCK" in the Service Check is displayed as classified into Current DTC and Past DTC.

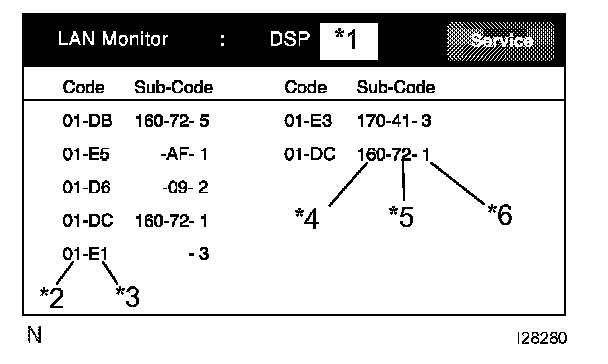

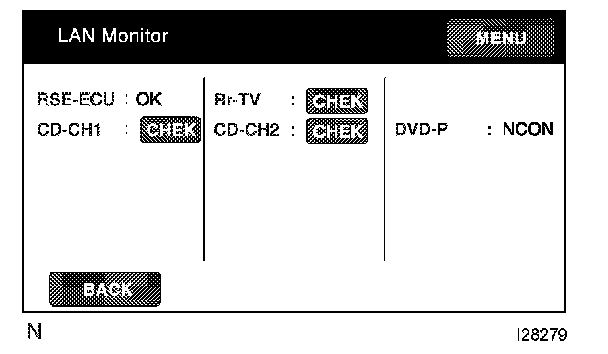

4. "LAN Monitor" can be used as a switch to activate "LAN Monitor" for detail information. Check faulty parts of the components in these modes by referring to the DTC code list.

HINT:
- Detecting no LAN DTC activates the LAN Monitor on the screen.
- The LAN Monitor chooses and displays the LAN DTC out of DTC of components identified as "CHEK" in the LAN Monitor.




5. Read Check Result

HINT:
- After repairing and checking, press "Code CLR" for more than 3 sec. to delete diagnosis memory.
- After deleting diagnosis memory, press "Recheck" and make sure "OK" is displayed on the screen.
