Power Source Circuit (Disc Player Controller)

POWER SOURCE CIRCUIT (DISC PLAYER CONTROLLER)

CIRCUIT DESCRIPTION

This circuit provides power to the disc player controller. The power is sent from the battery to the disc player controller through the multi-display controller sub-assy.

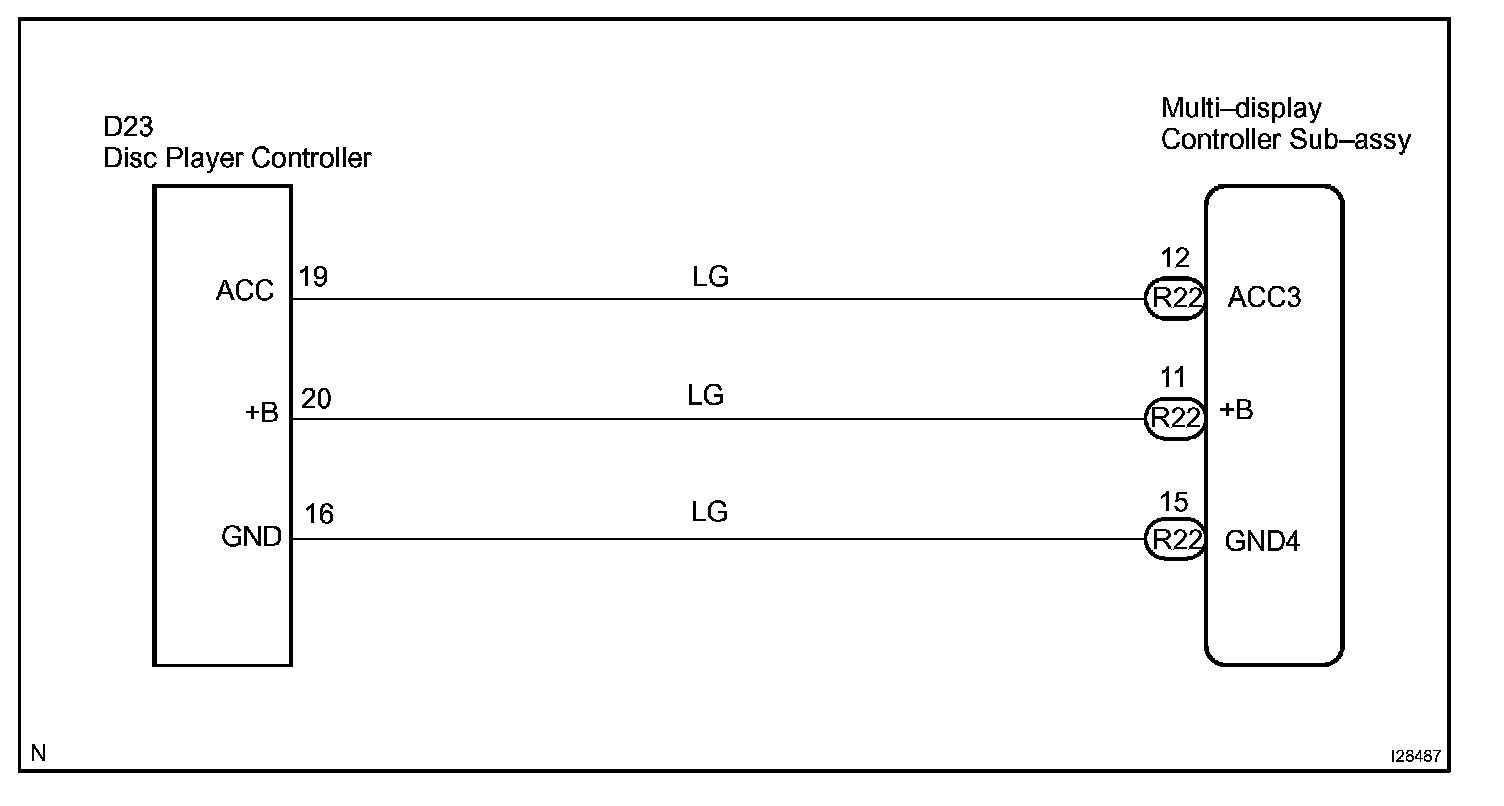

Wiring Diagram:

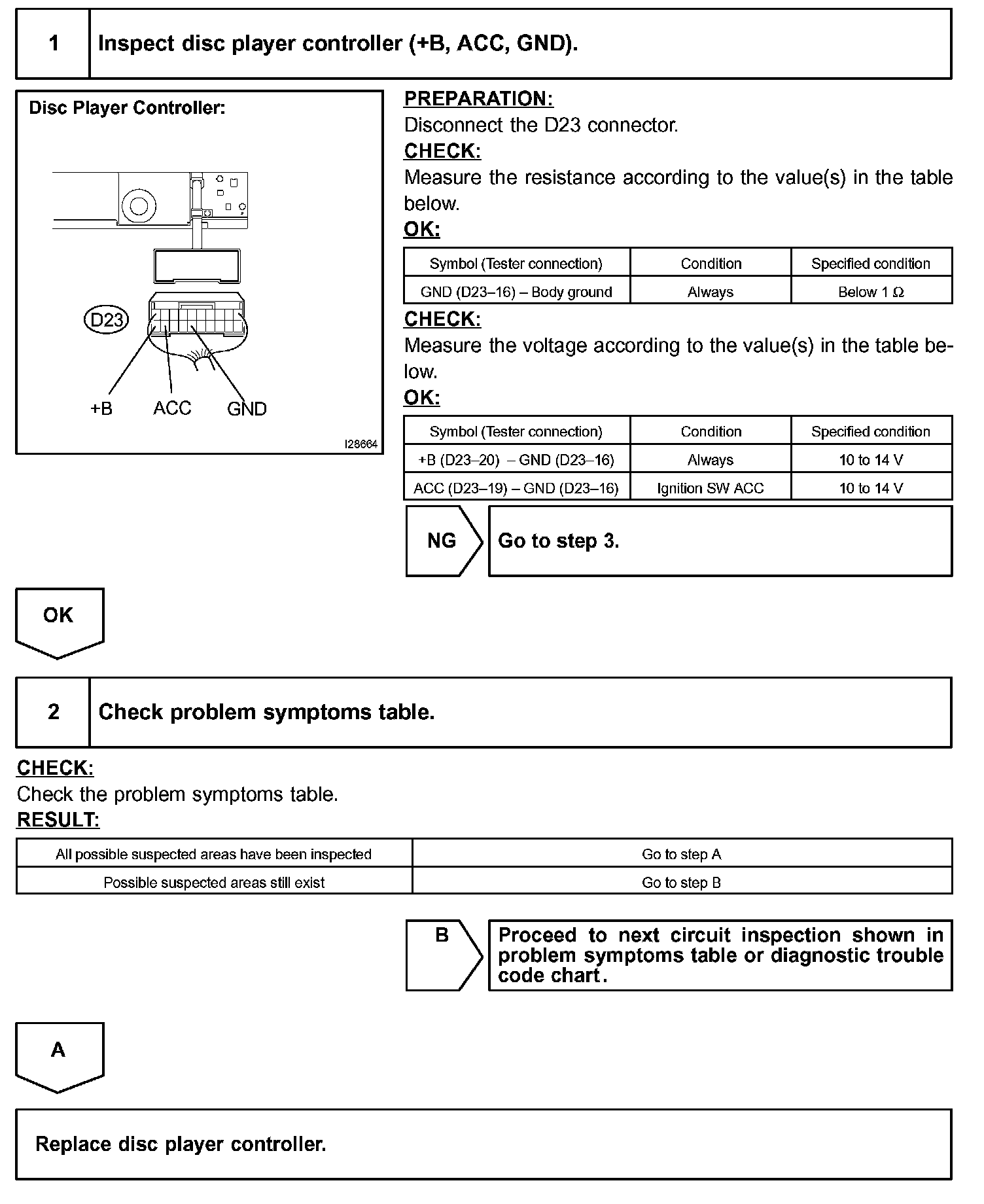

Step 1 - 2:

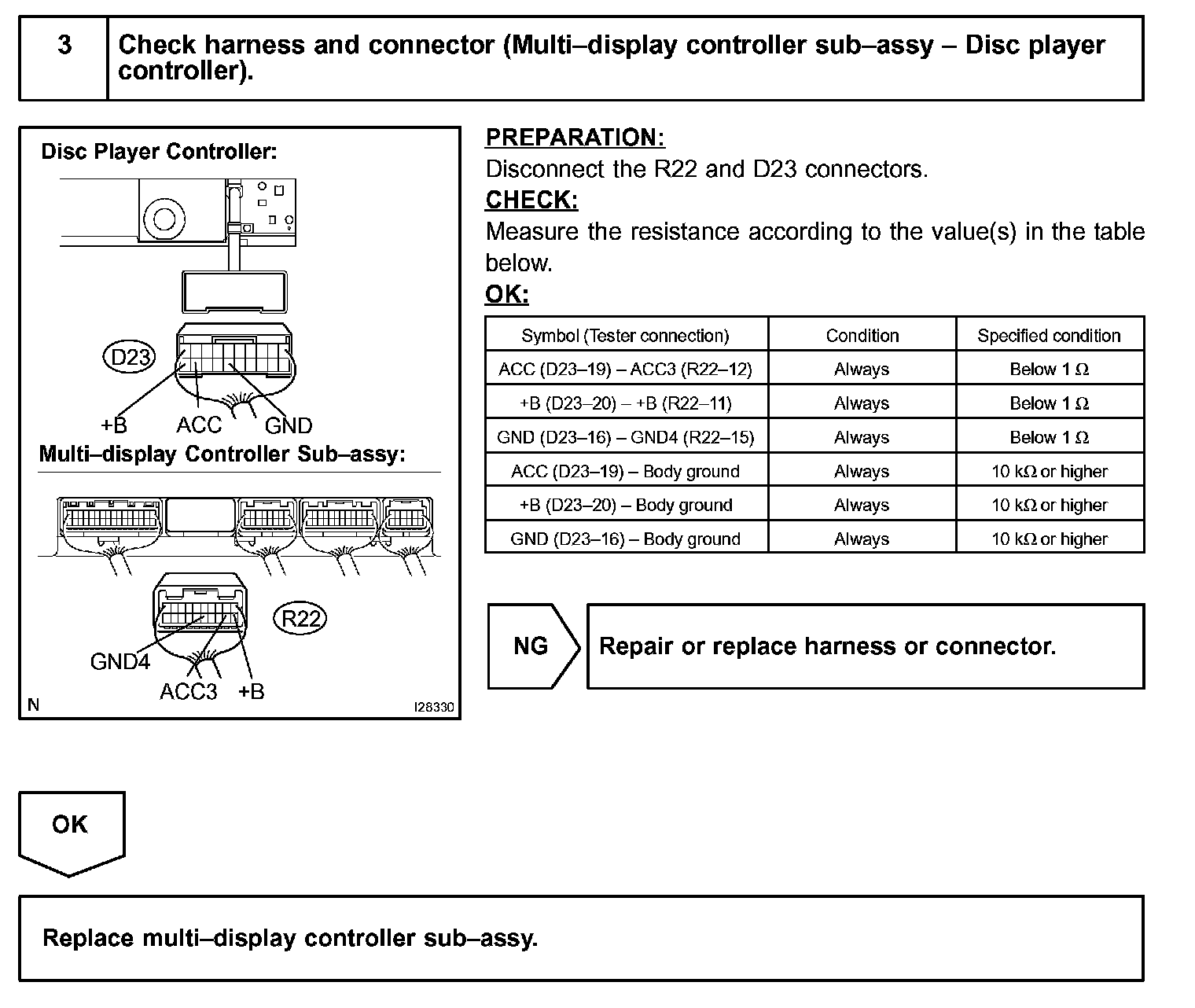

Step 3:

INSPECTION PROCEDURE
