Mute Signal Circuit (Disc Player Controller - Multi-Display Controller Sub-Assy)

MUTE SIGNAL CIRCUIT (DISC PLAYER CONTROLLER - MULTI DISPLAY CONTROLLER SUB-ASSY)

CIRCUIT DESCRIPTION

The multi-display controller sub-assy controls the volume according to the MUTE signal from the disc player controller.

The MUTE signal is sent to reduce noise and a popping sound generated when the mode, etc. is switched.

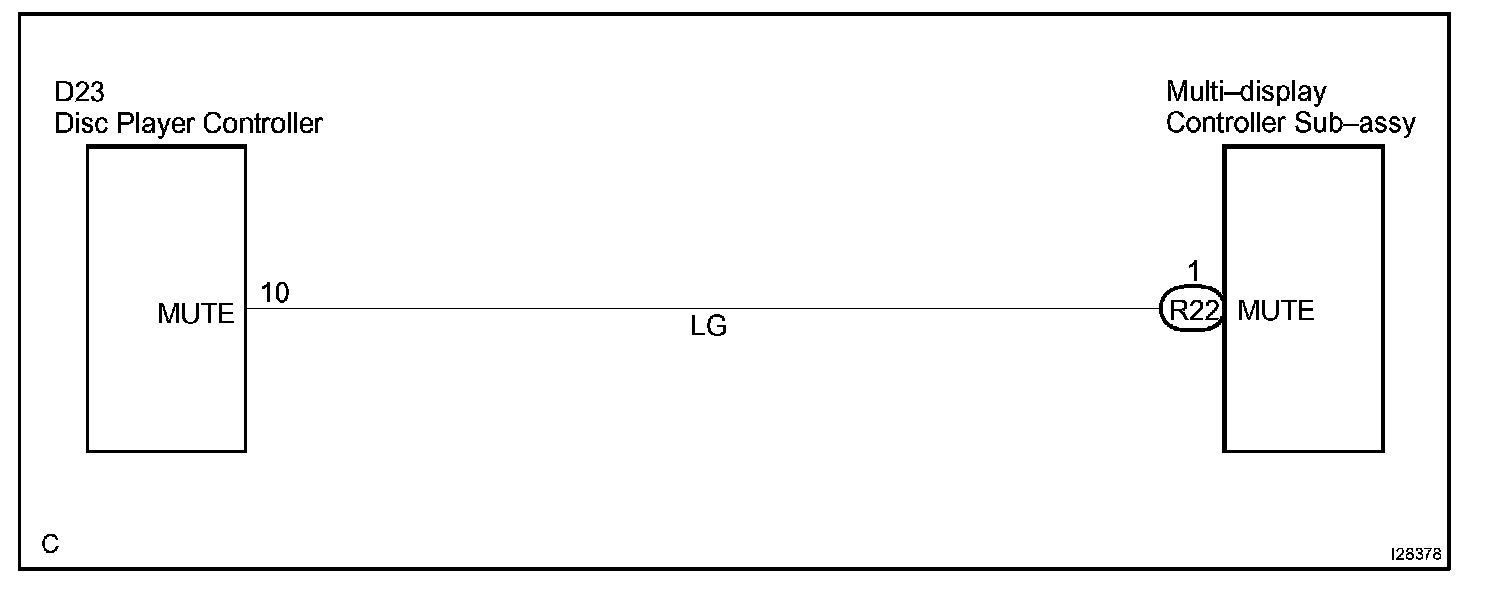

Wiring Diagram:

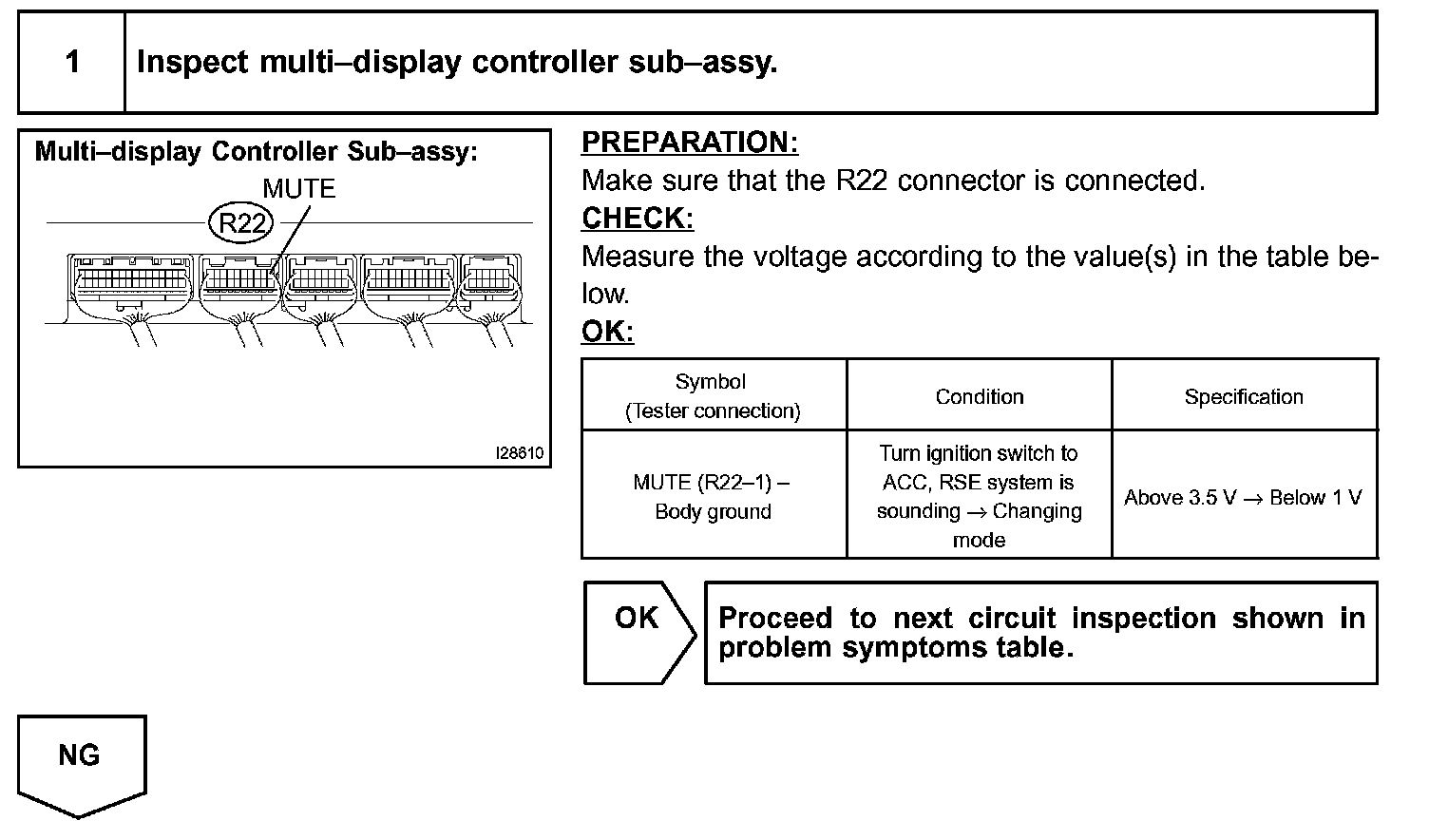

Step 1:

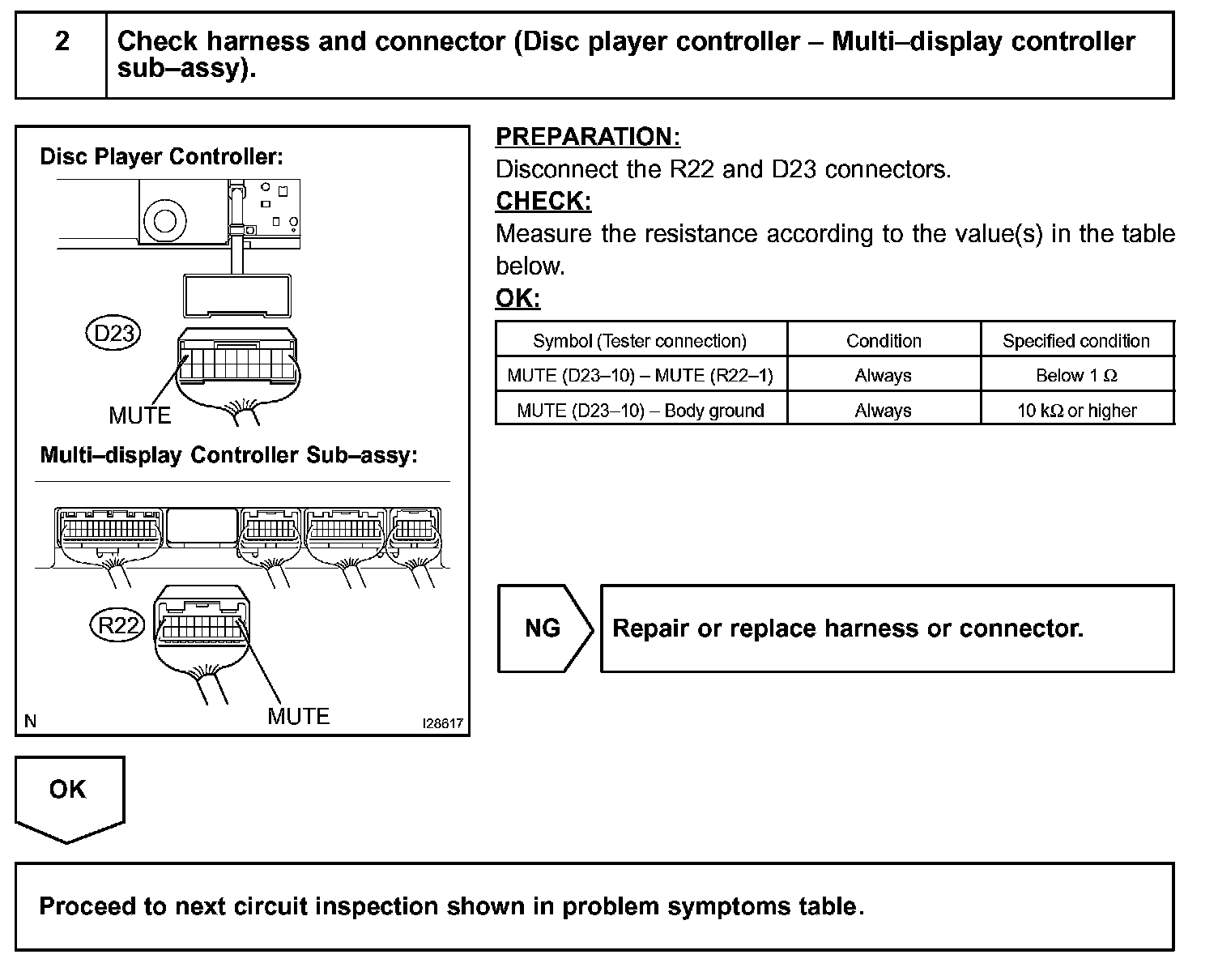

Step 2:

INSPECTION PROCEDURE
