Display Signal Circuit (Multi-Display Sub-Assy - Radio and Navigation Assy)

DISPLAY SIGNAL CIRCUIT (MULTI-DISPLAY SUB-ASSY - RADIO AND NAVIGATION ASSY)

CIRCUIT DESCRIPTION

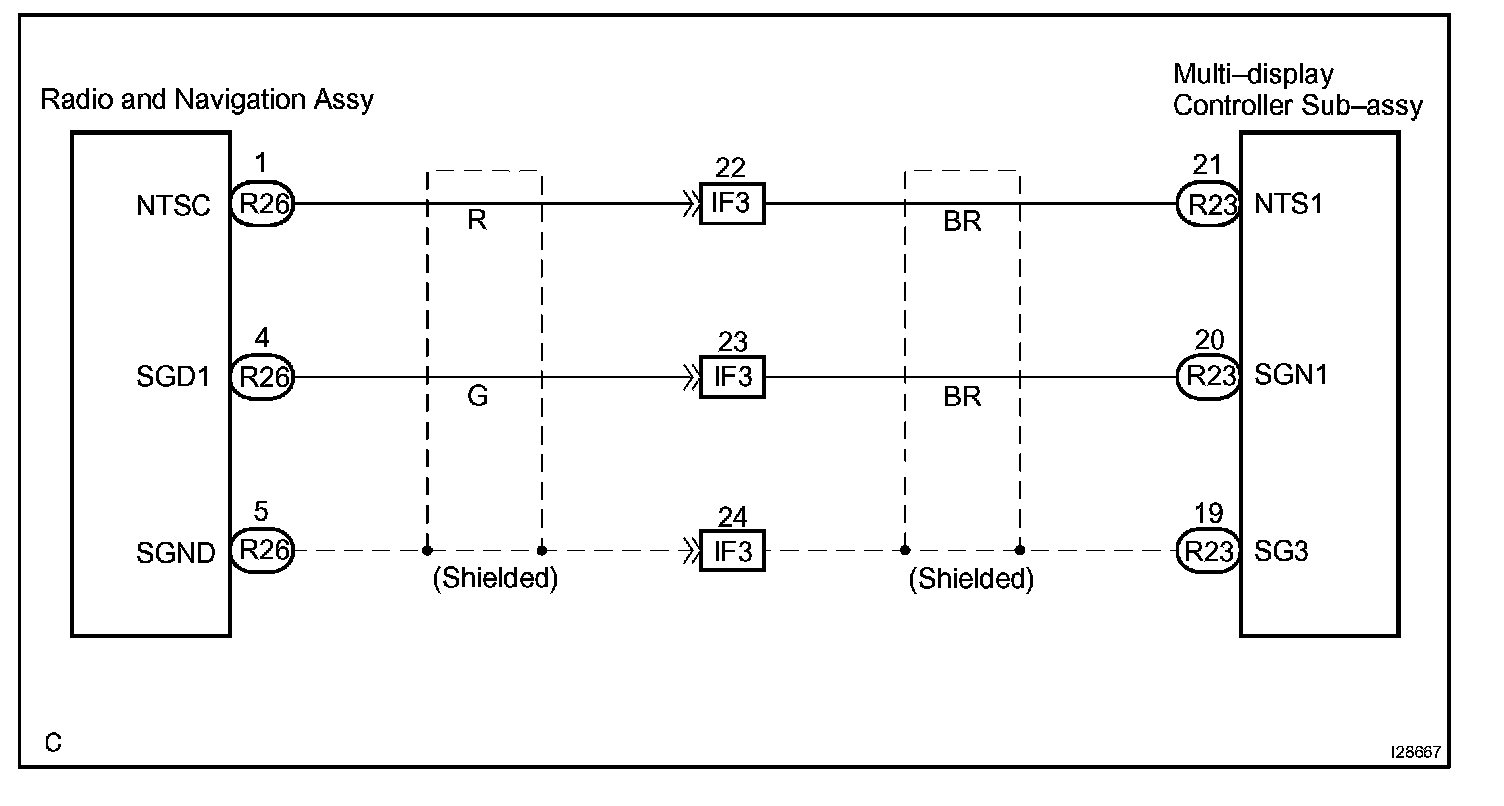

This is the display signal circuit from the multi-display controller sub-assy to the radio and navigation assy.
