Display Signal Circuit (Multi-Display Controller Sub-Assy - VTR Terminal)

DISPLAY SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - VTR TERMINAL)

CIRCUIT DESCRIPTION

This is the display signal circuit from the multi-display controller sub-assy to the VTR terminal.

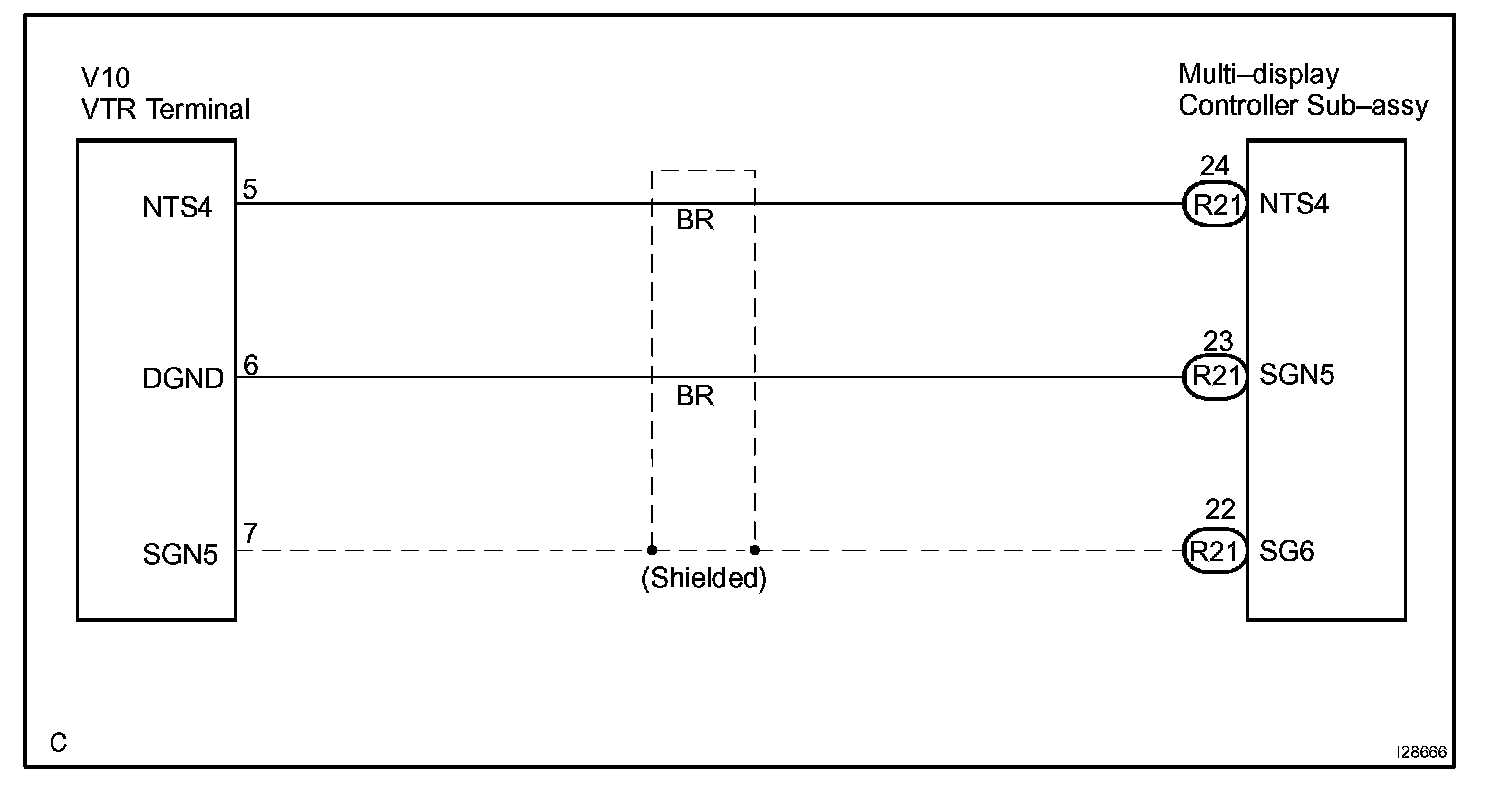

Wiring Diagram:

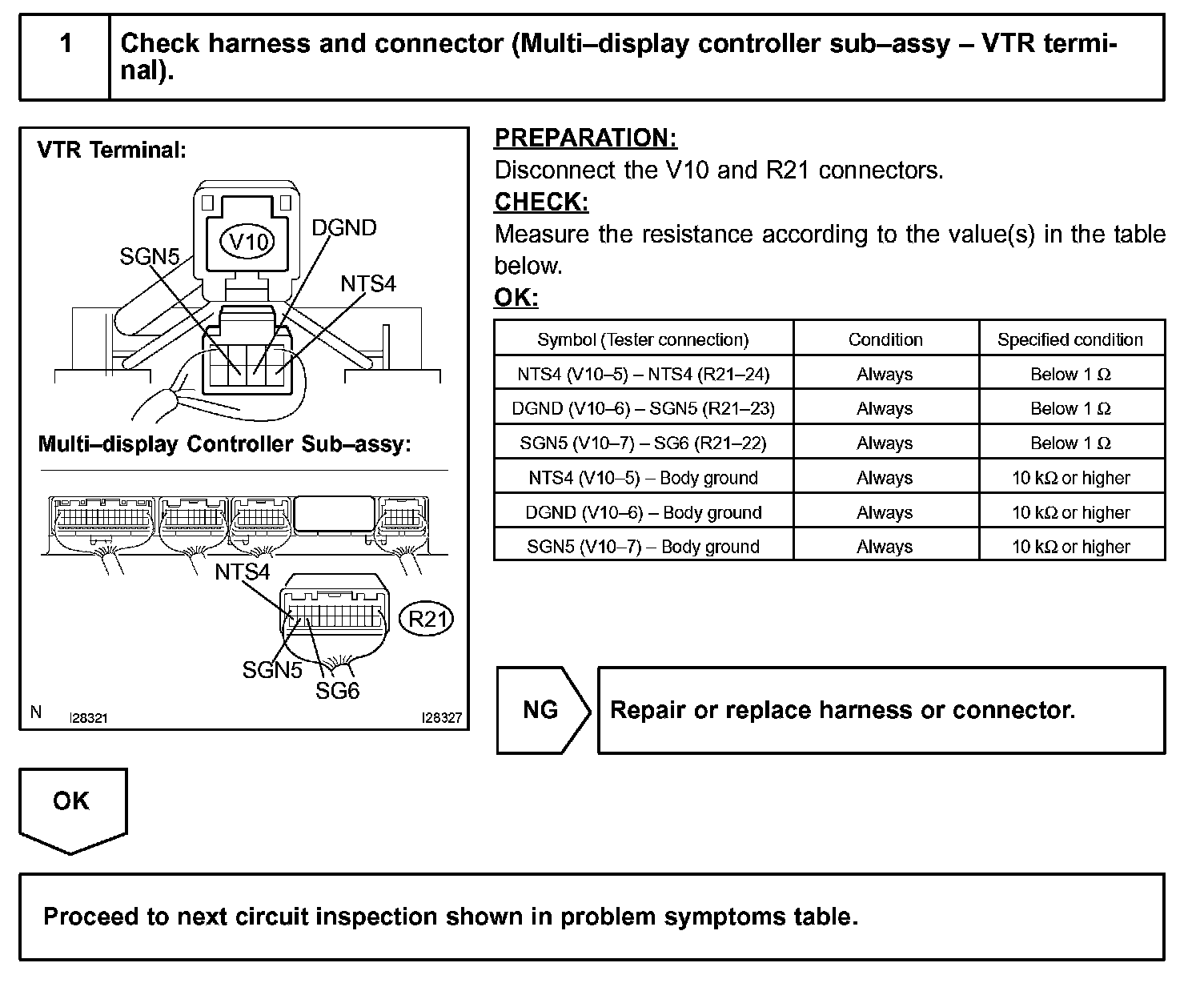

Step 1:

INSPECTION PROCEDURE
