Display Signal Circuit (Multi-Display Controller Sub-Assy - Television Display Assy)

DISPLAY SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - TELEVISION DISPLAY ASSY)

CIRCUIT DESCRIPTION

This is the display signal circuit from the multi-display controller sub-assy to the television display assy.

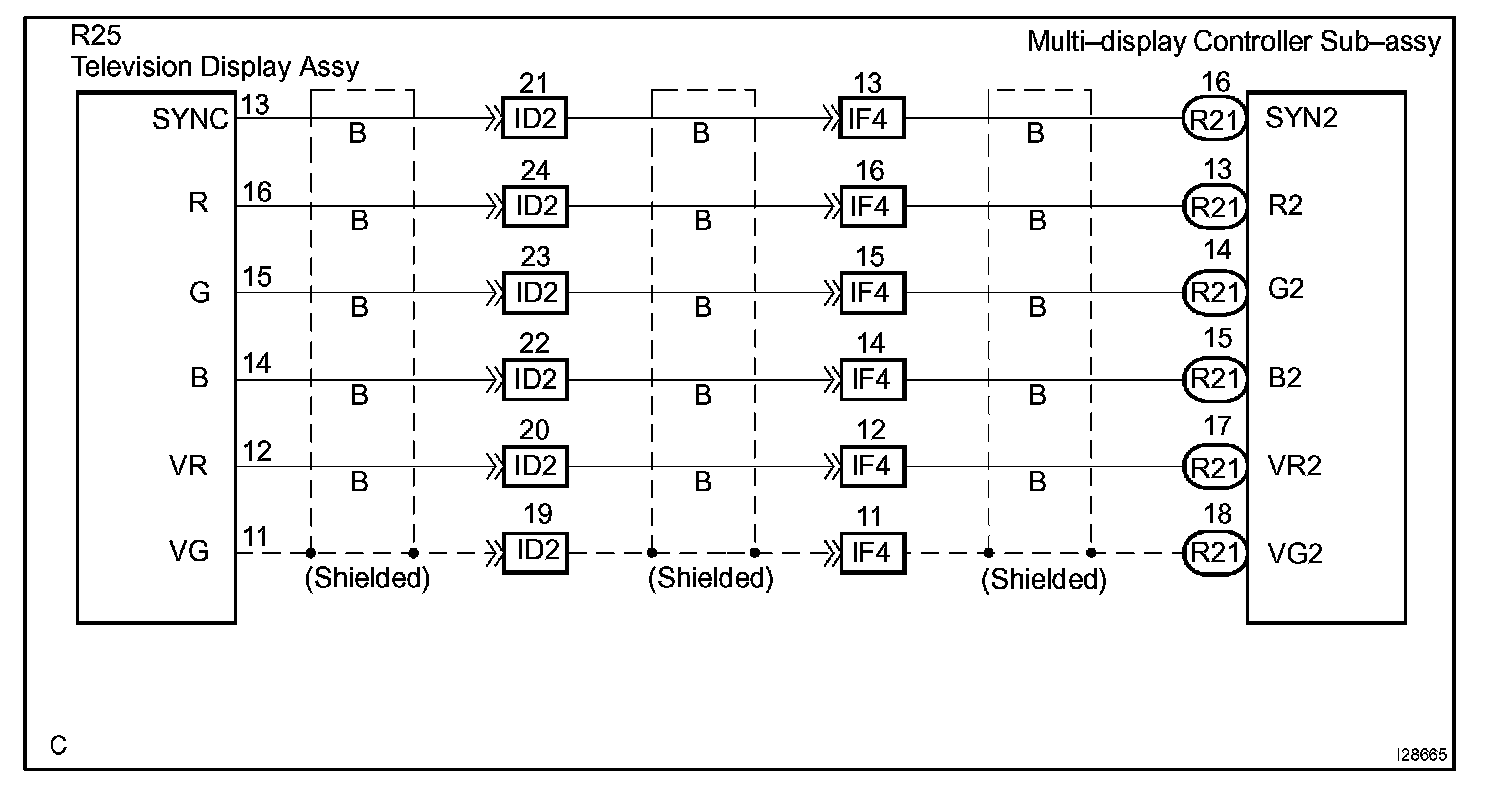

Wiring Diagram:

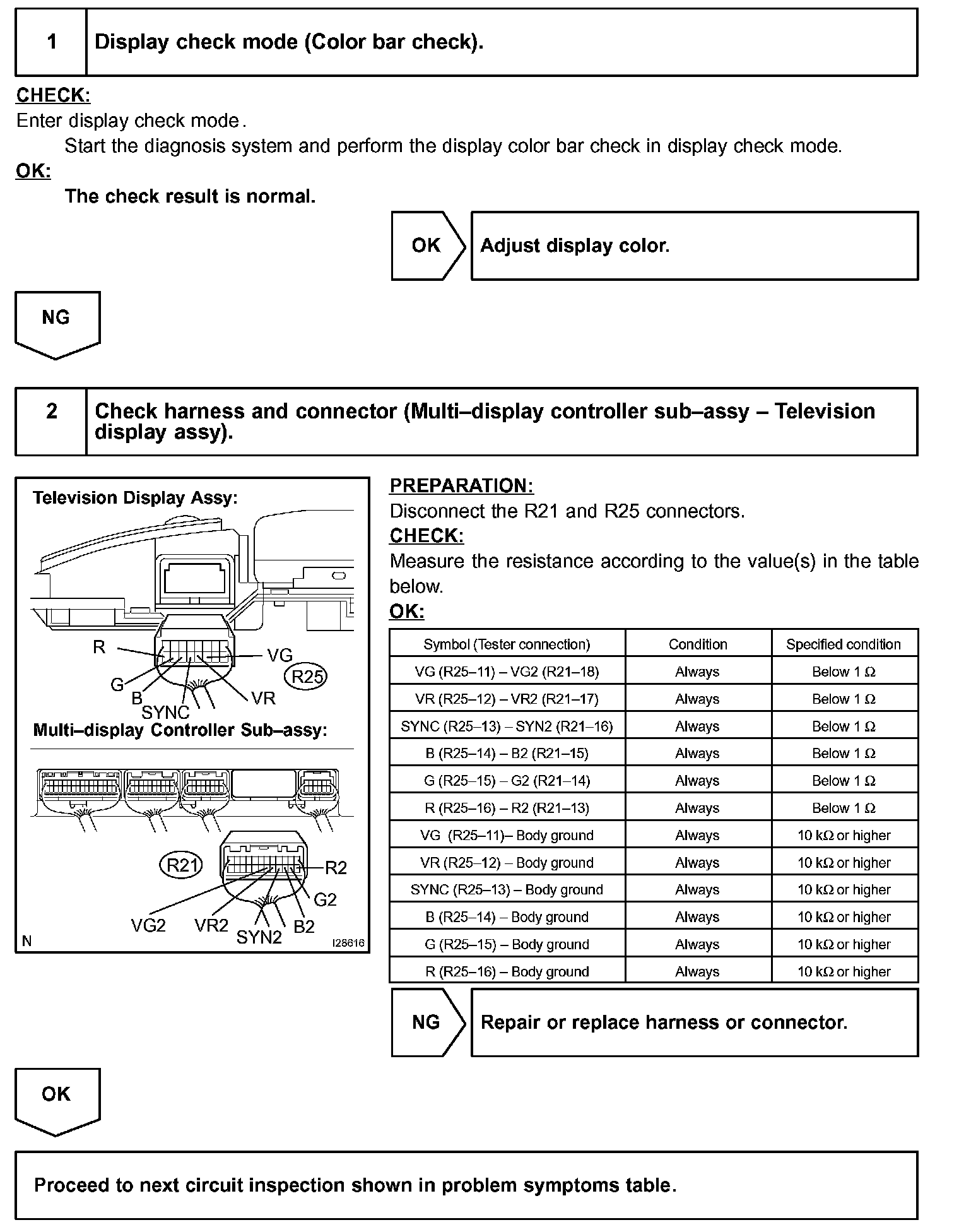

Step 1 - 2:

INSPECTION PROCEDURE
