Display Signal Circuit (Multi-Display Controller Sub-Assy - Disc Player Controller)

DISPLAY SIGNAL CIRCUIT (MULTI-DISPLAY CONTROLLER SUB-ASSY - DISC PLAYER CONTROLLER)

CIRCUIT DESCRIPTION

This is the display signal circuit from the disc player controller to the multi-display controller sub-assy.

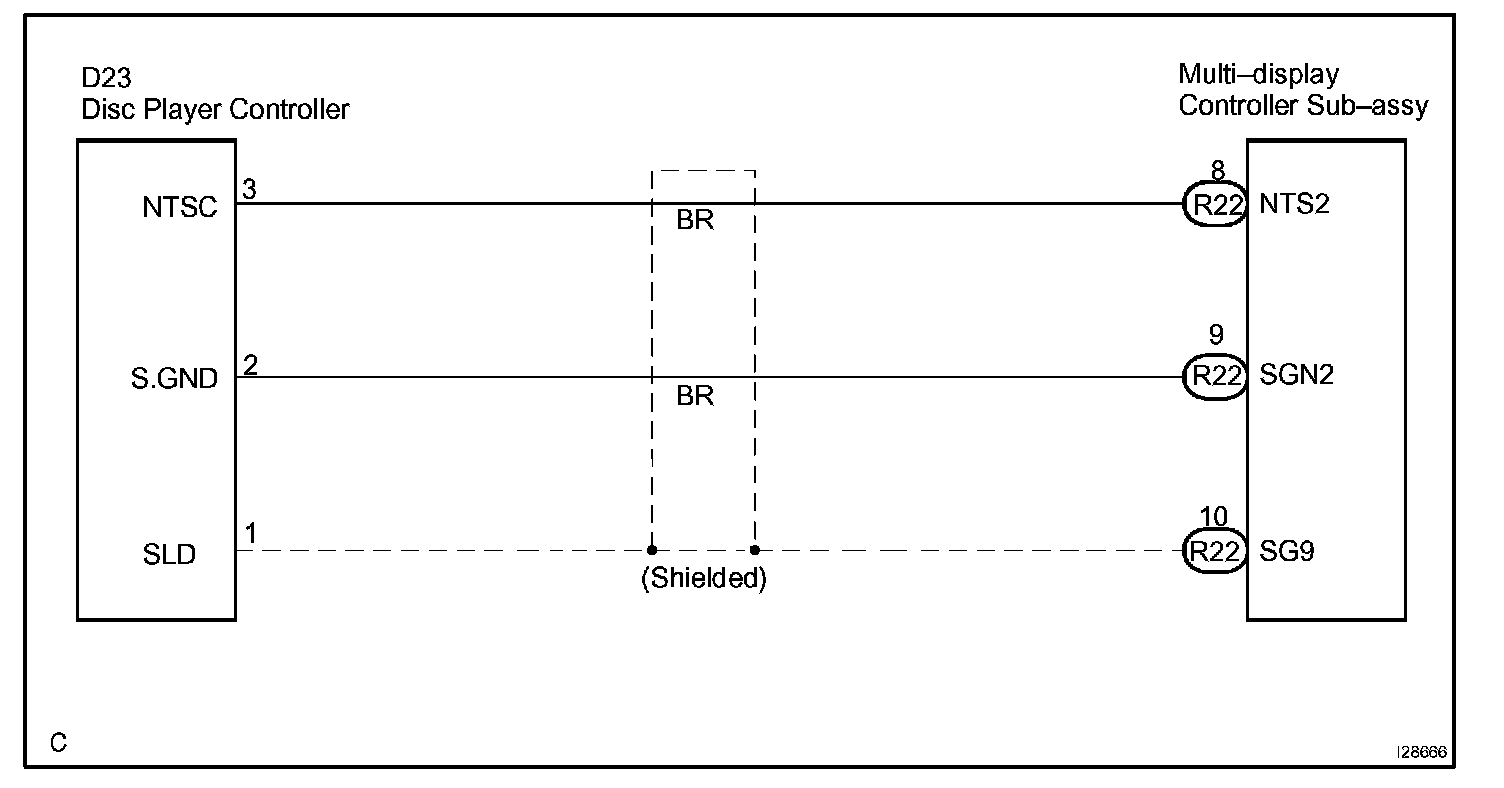

Wiring Diagram:

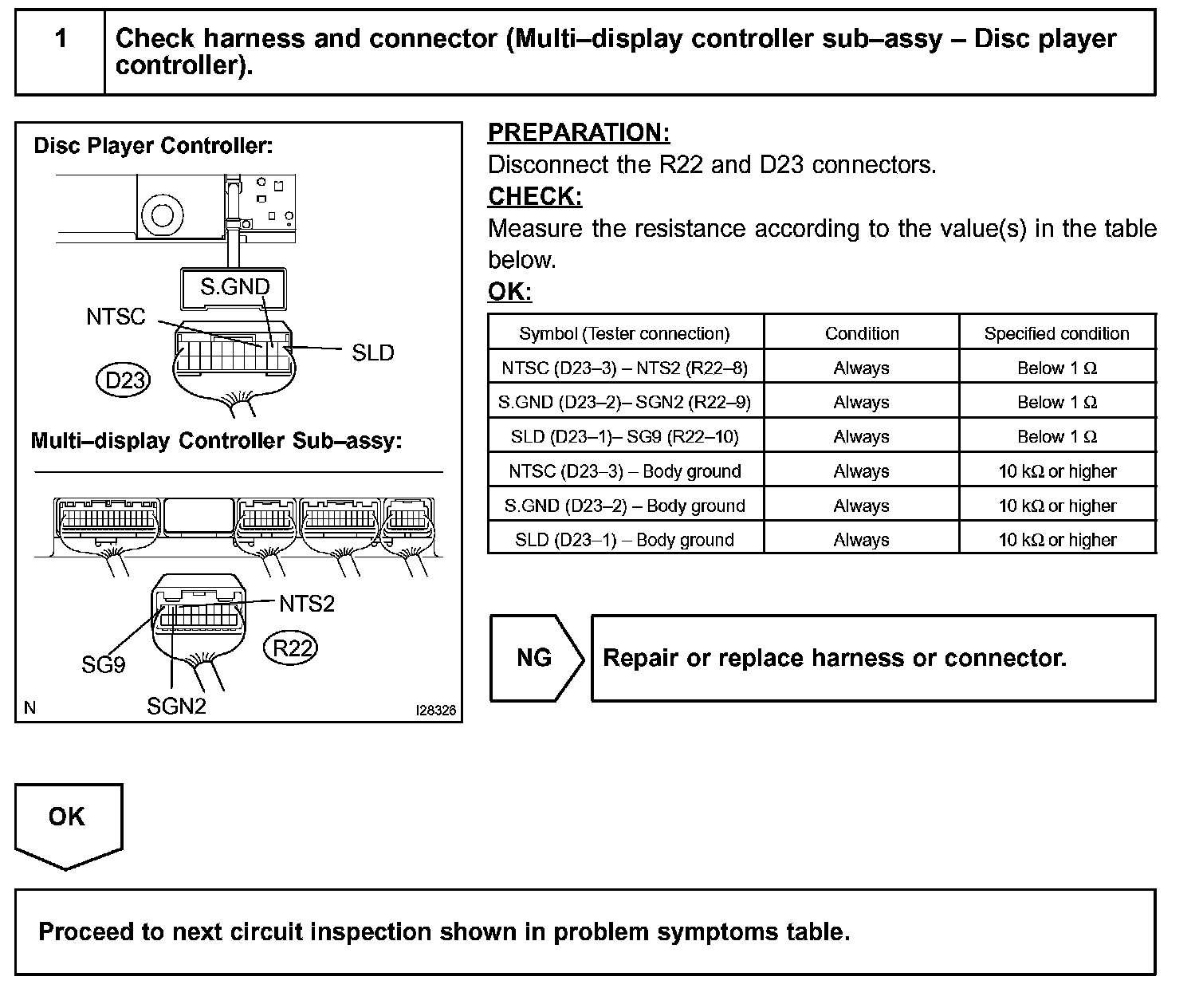

Step 1:

INSPECTION PROCEDURE
