Tire Pressure Warning System

DIAGNOSTIC TROUBLE CODE CHART

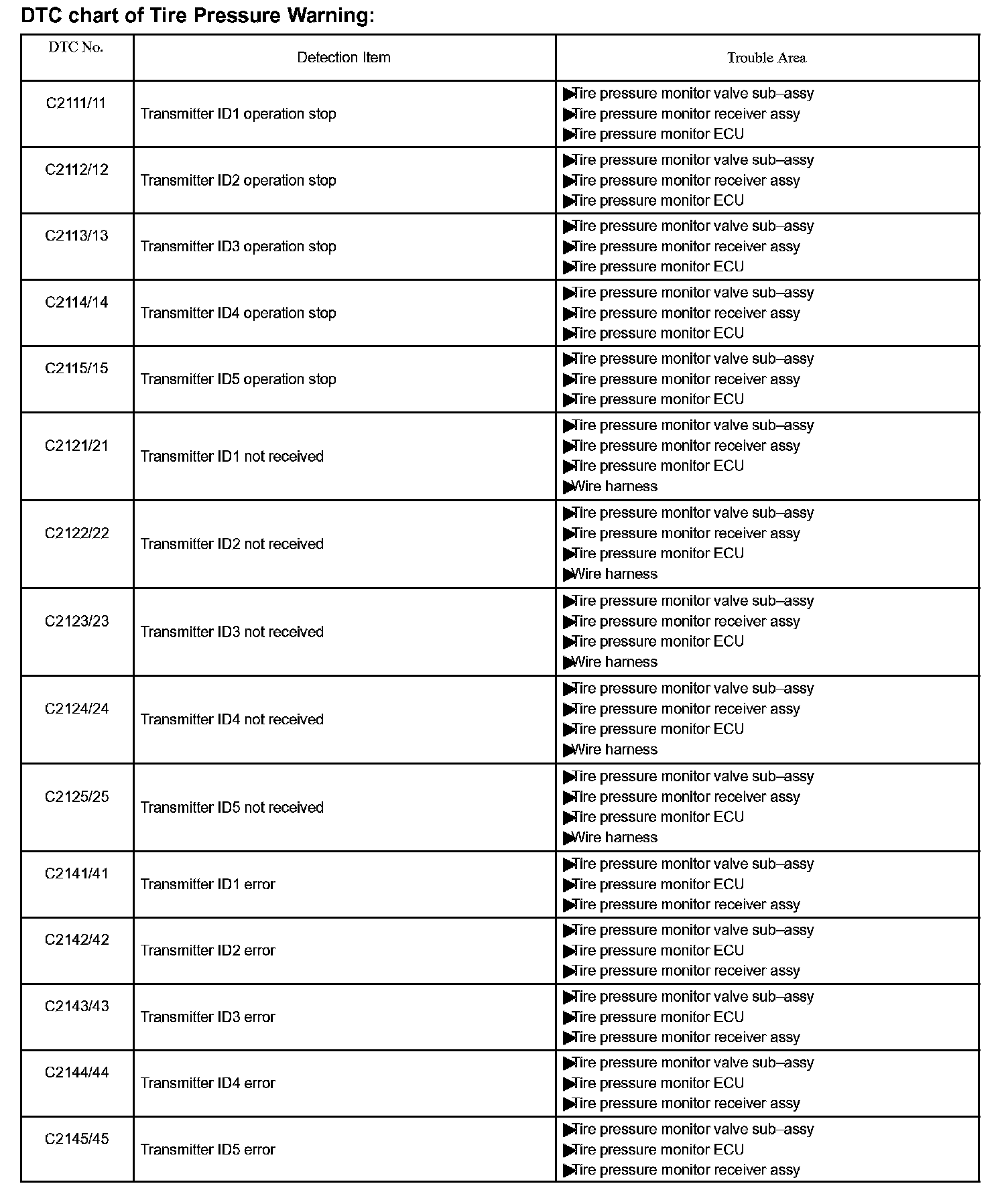

C2111/11 - C2145/45:

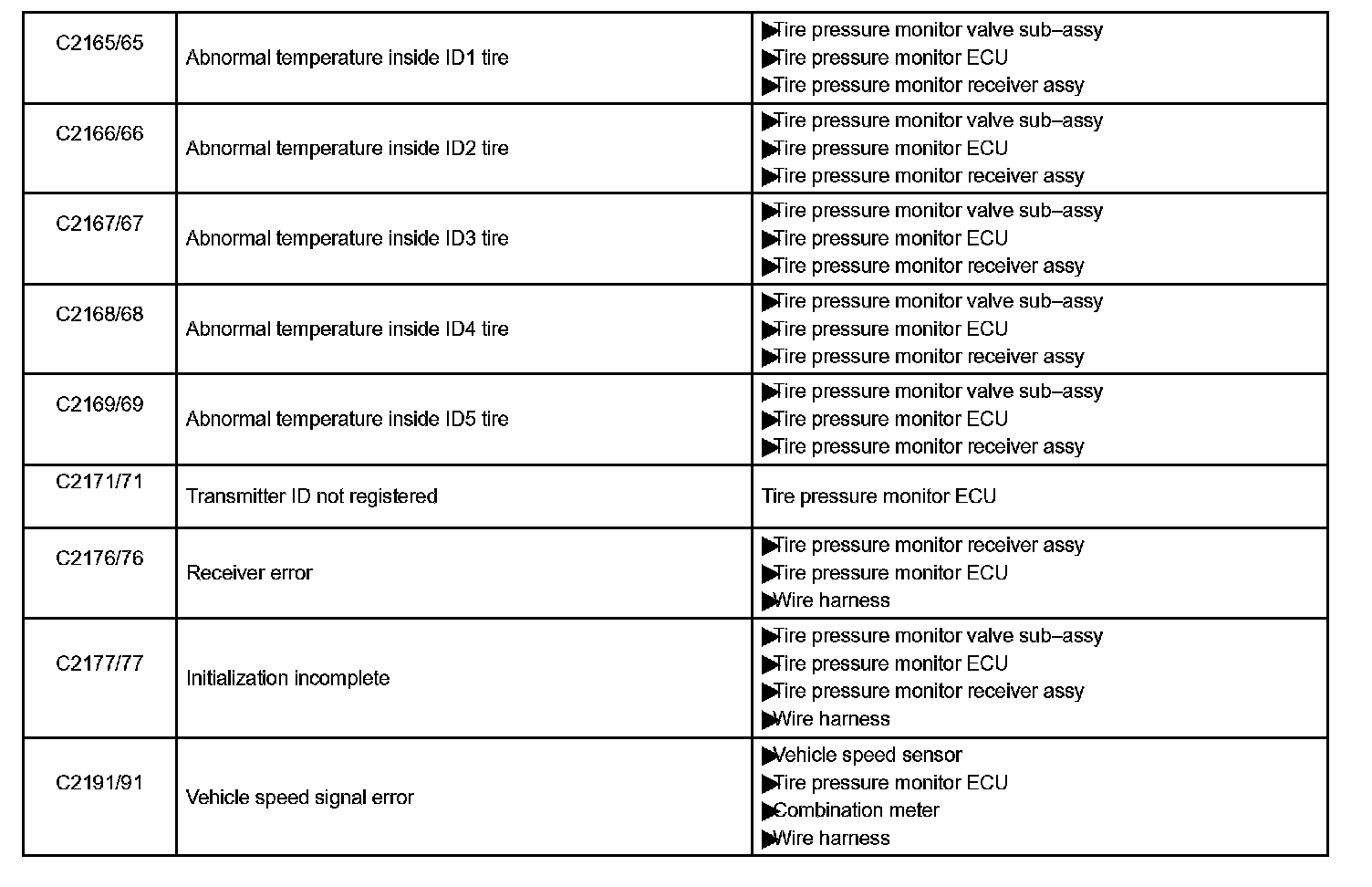

C2165/65 - C2191/91:

HINT:
- If no abnormality is found when the parts are inspected, inspect the tire pressure monitor ECU.
- If a malfunction code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the respective "DTC No." in the DTC chart.
