Entertainment Systems

DIAGNOSTIC TROUBLE CODE CHART






HINT: DTC of the device which is directly connected via AVC-LAN, is displayed on the "audio system or navigation system" and the "television display assy" respectively.

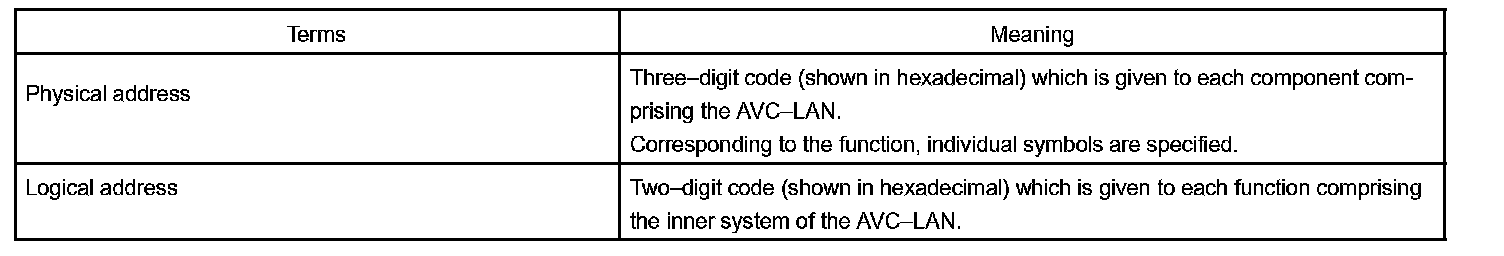

Titles for each unit are stated in the following order: parts name (physical address) [Name indicated by DTC]

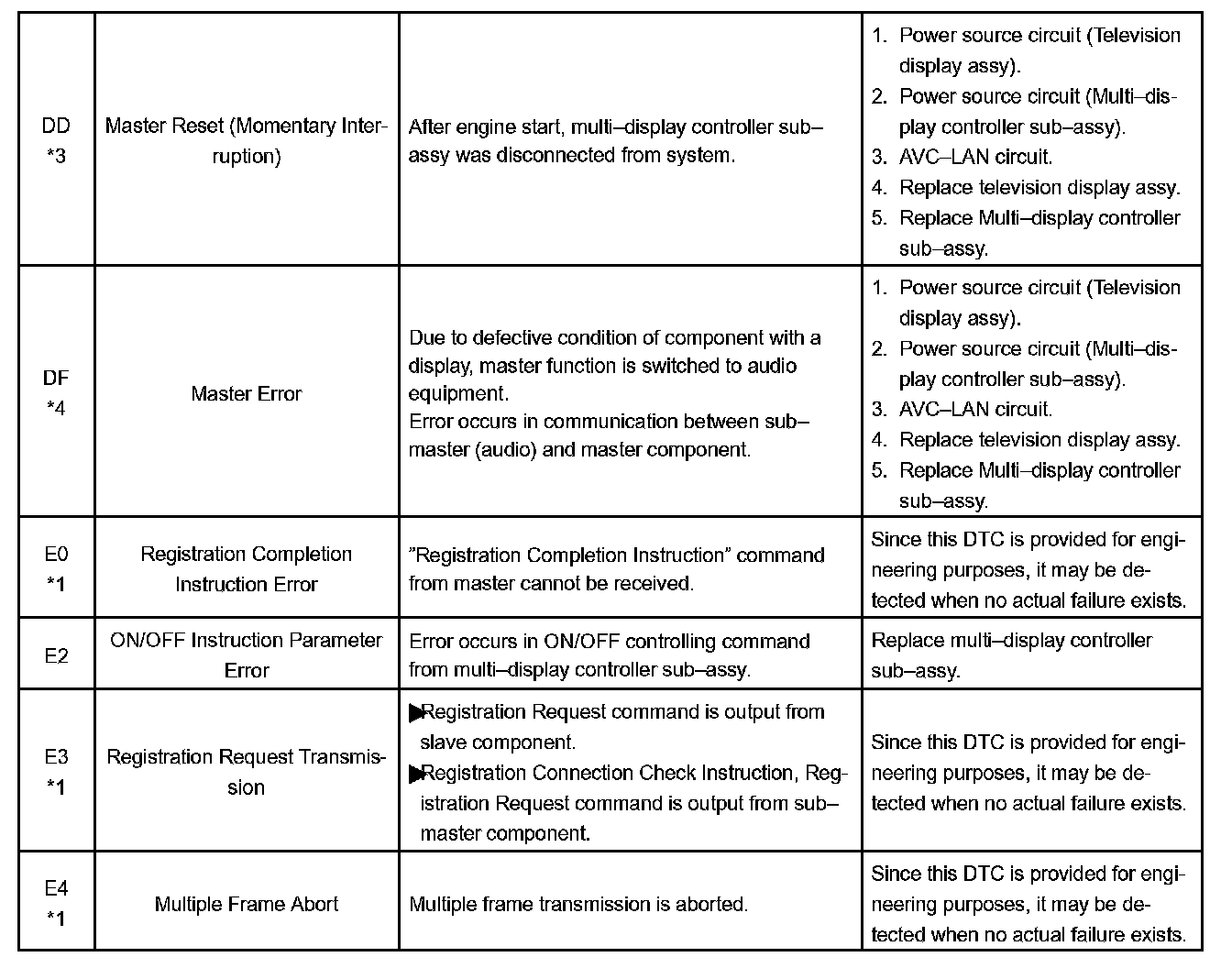

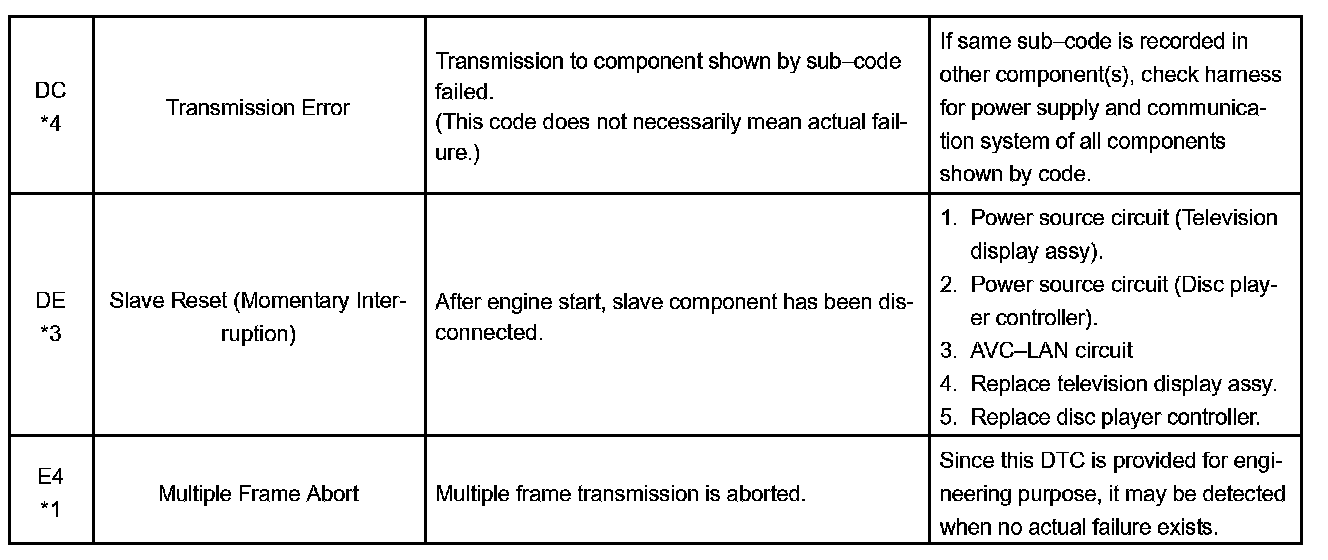

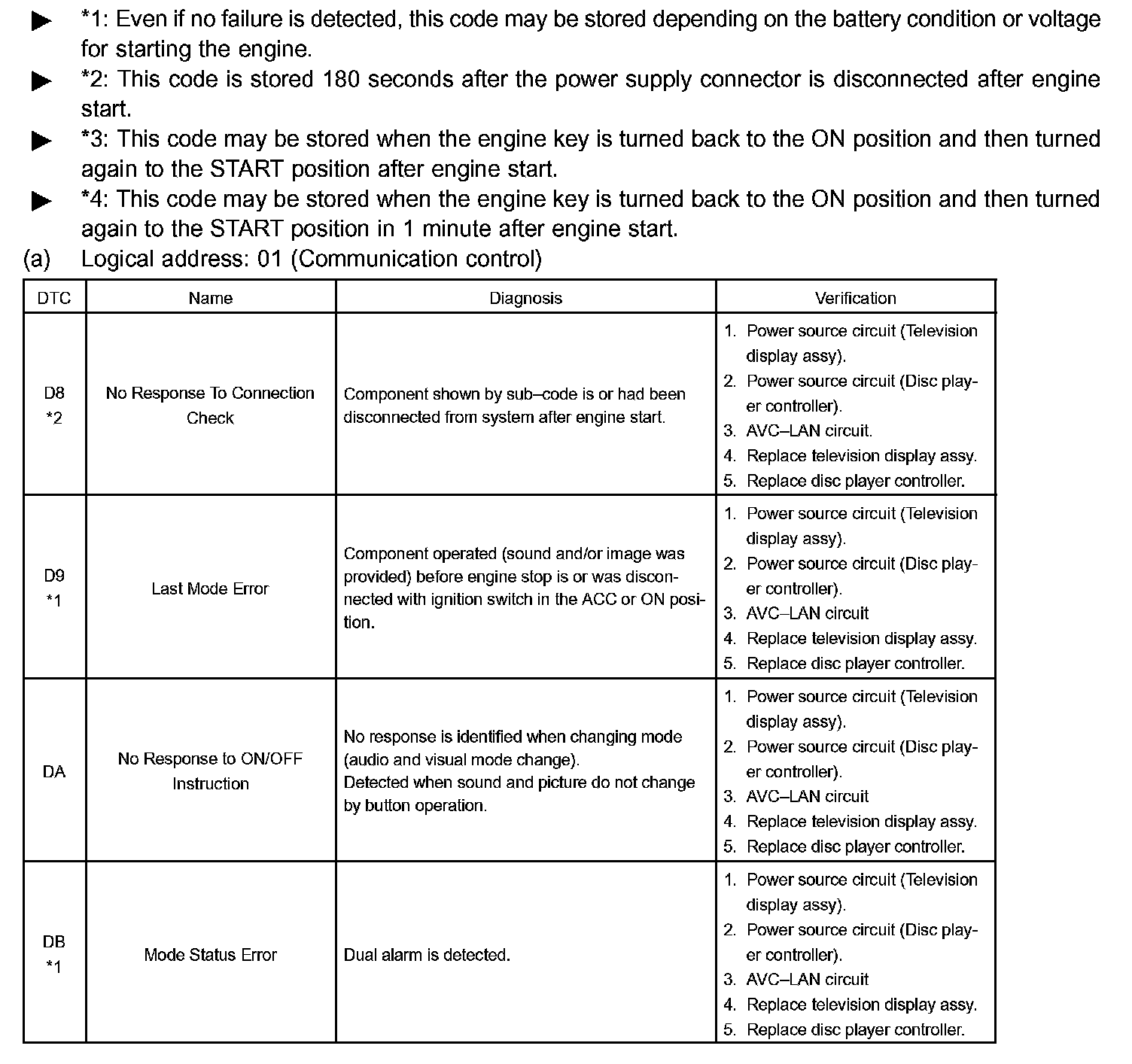

1. MULTI-DISPLAY CONTROLLER SUB-ASSY (Physical address: 16C, 16D) [RSE-ECU]

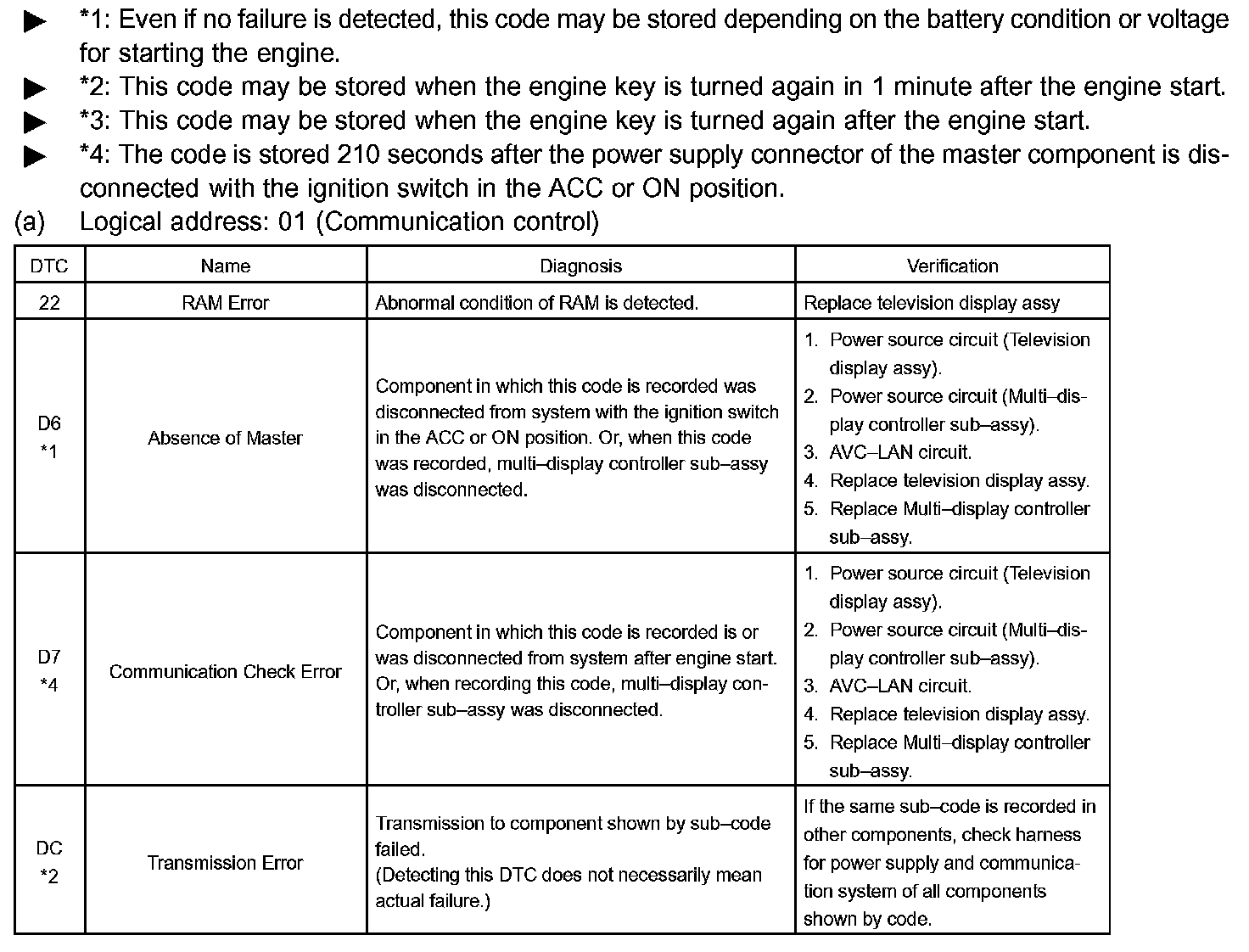

2. Television display assy (Physical address: 1B0) [Rr-TV]

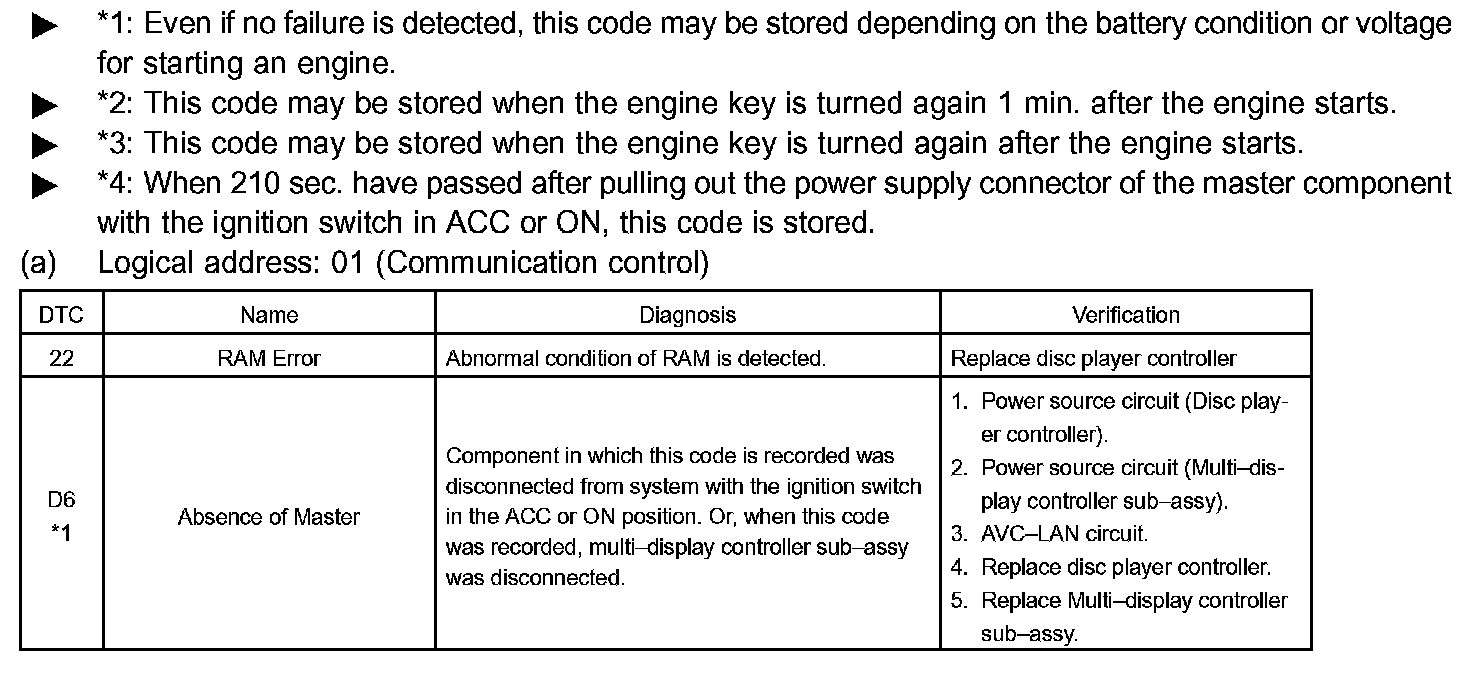

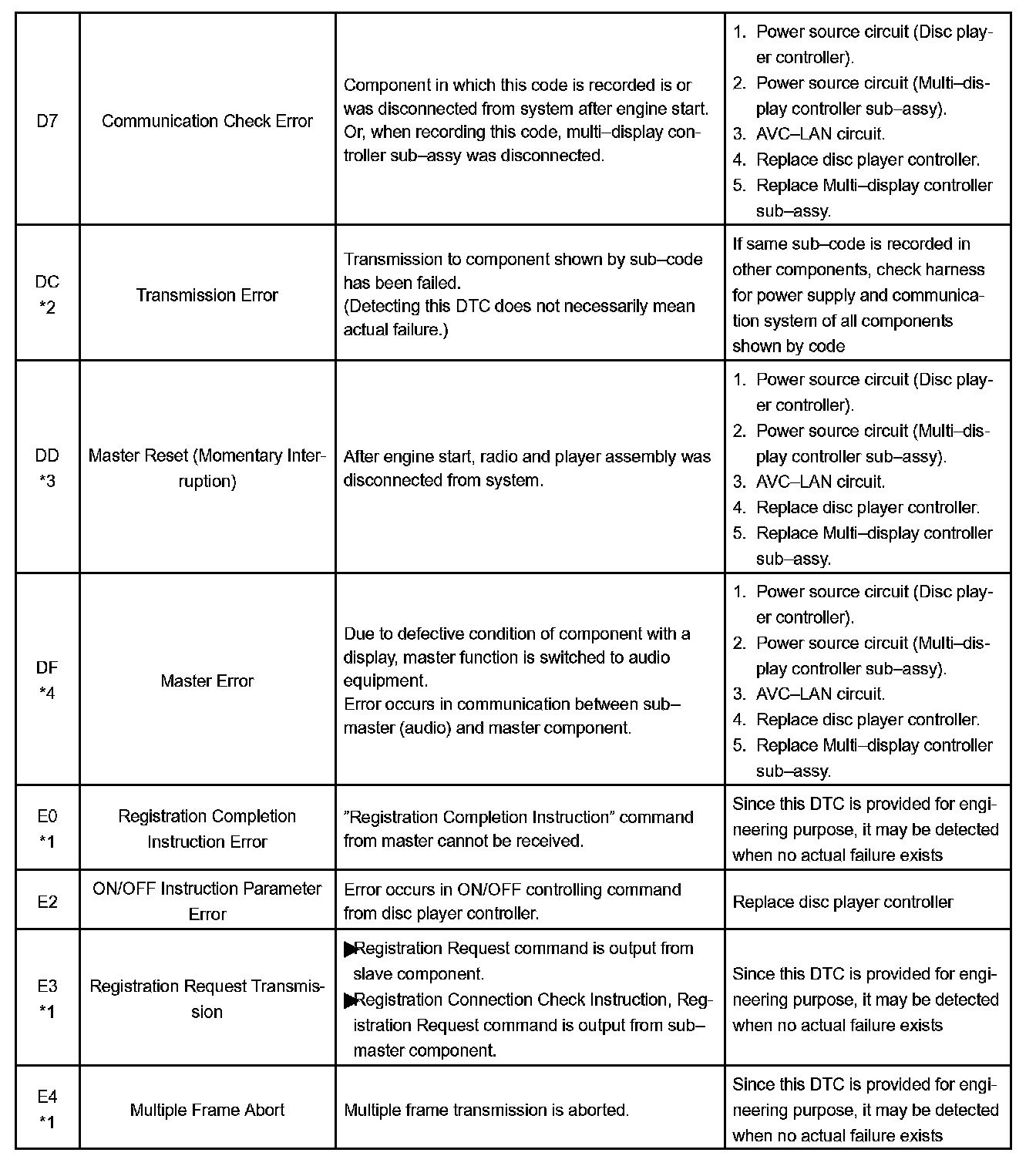

3. Disc player controller (Physical address: 1A0) [DVD-P]

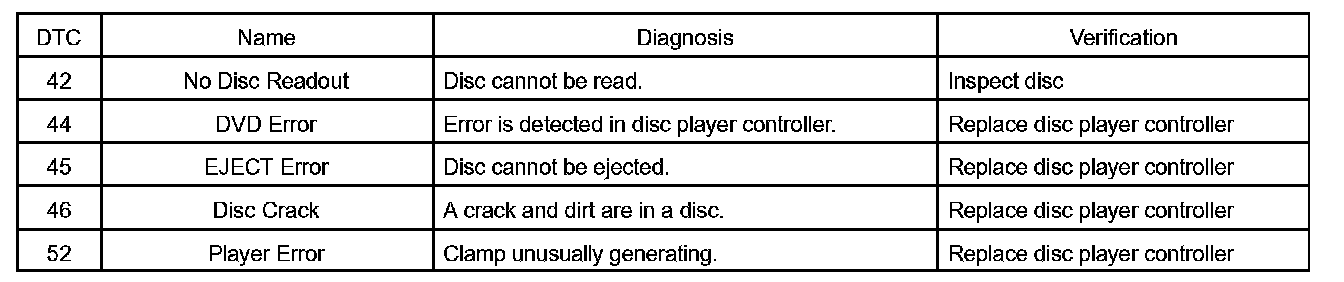

b. Logical address: 44 (DVD)
