Engine Immobiliser System
Engine Immobiliser System
DIAGNOSTIC TROUBLE CODE CHART
99:

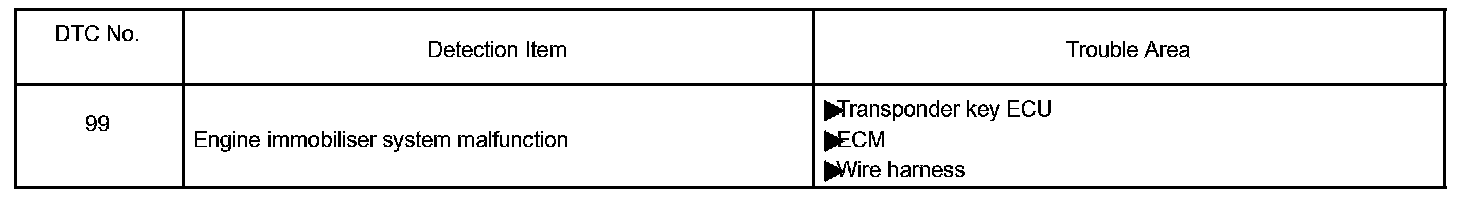

ECM DIAGNOSTIC TROUBLE CODE CHART (MIL)
11 - 34:

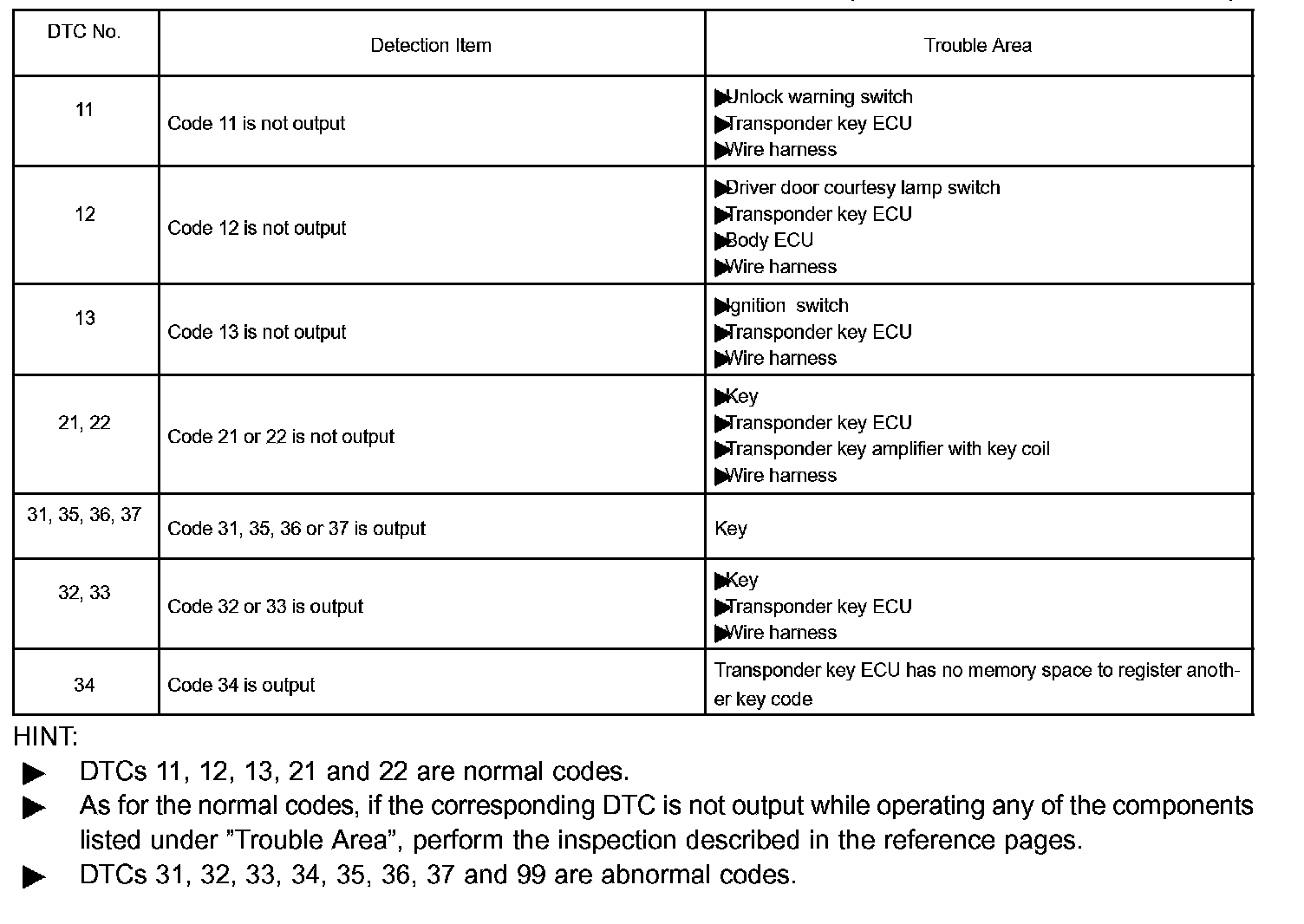

TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART (SECURITY INDICATOR LIGHT)
