Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

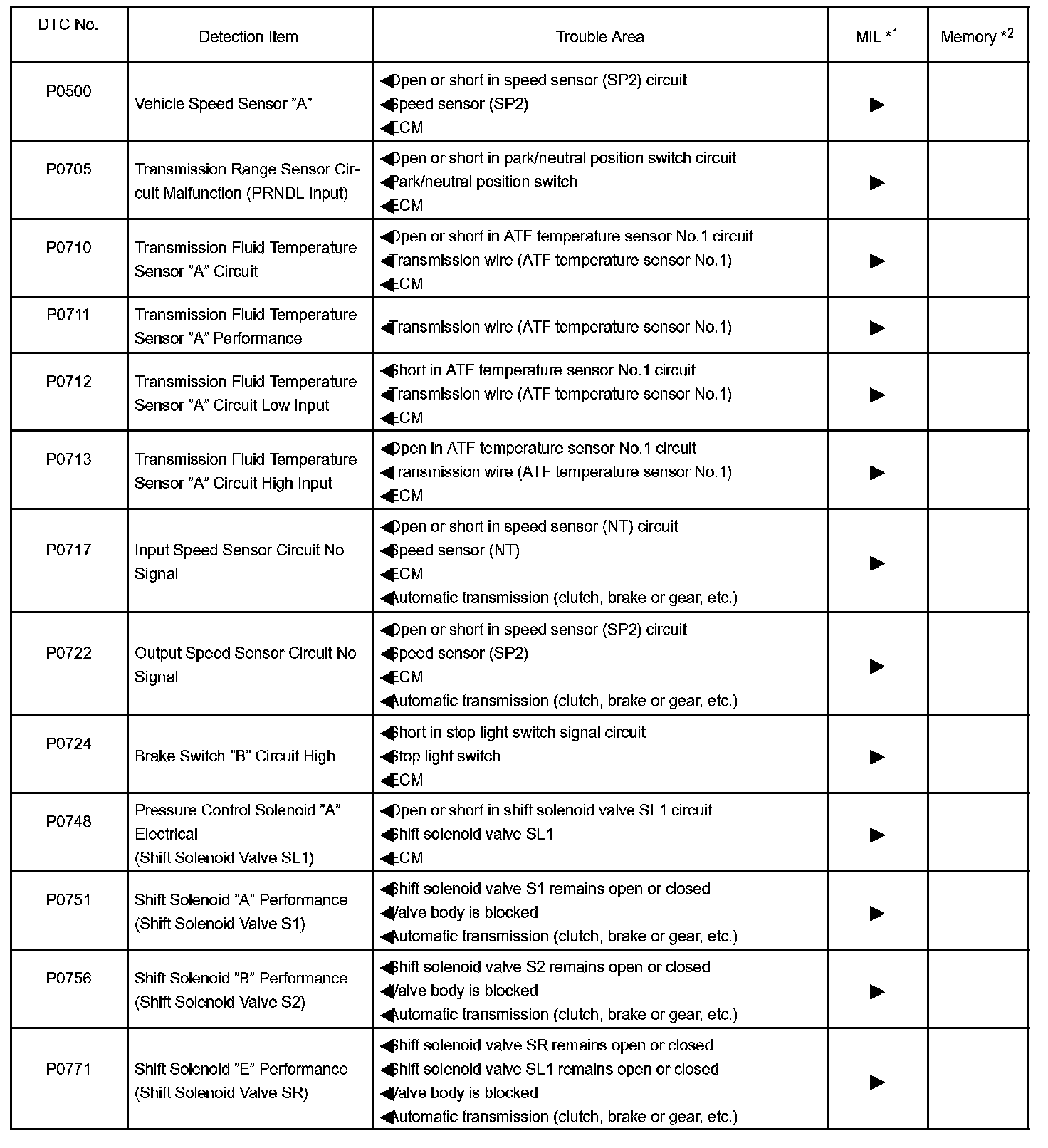

P0500 - P0771:

P0776 - P2759:

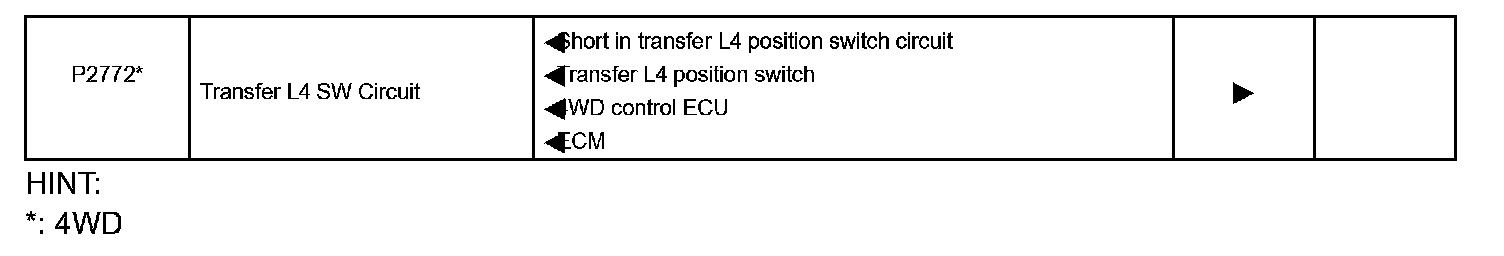

P2772:

If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the relevant trouble shooting.

HINT:
- *1 : -> ... The MIL (Malfunction Indicator Lamp) lights up
- *2 : ... The ECM memorizes the trouble code if the ECM detects the DTC detection condition.
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
