Audio System

DIAGNOSTIC TROUBLE CODE CHART






HINT: Titles for each unit are stated in the following order: parts name (physical address) and [Name indicated on the DTC display]

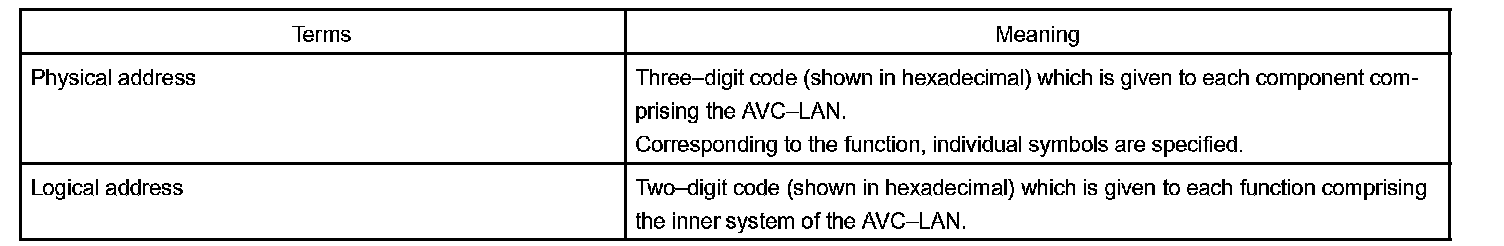

1. Radio receiver assy (physical address: 190) [AUDIO H/U]

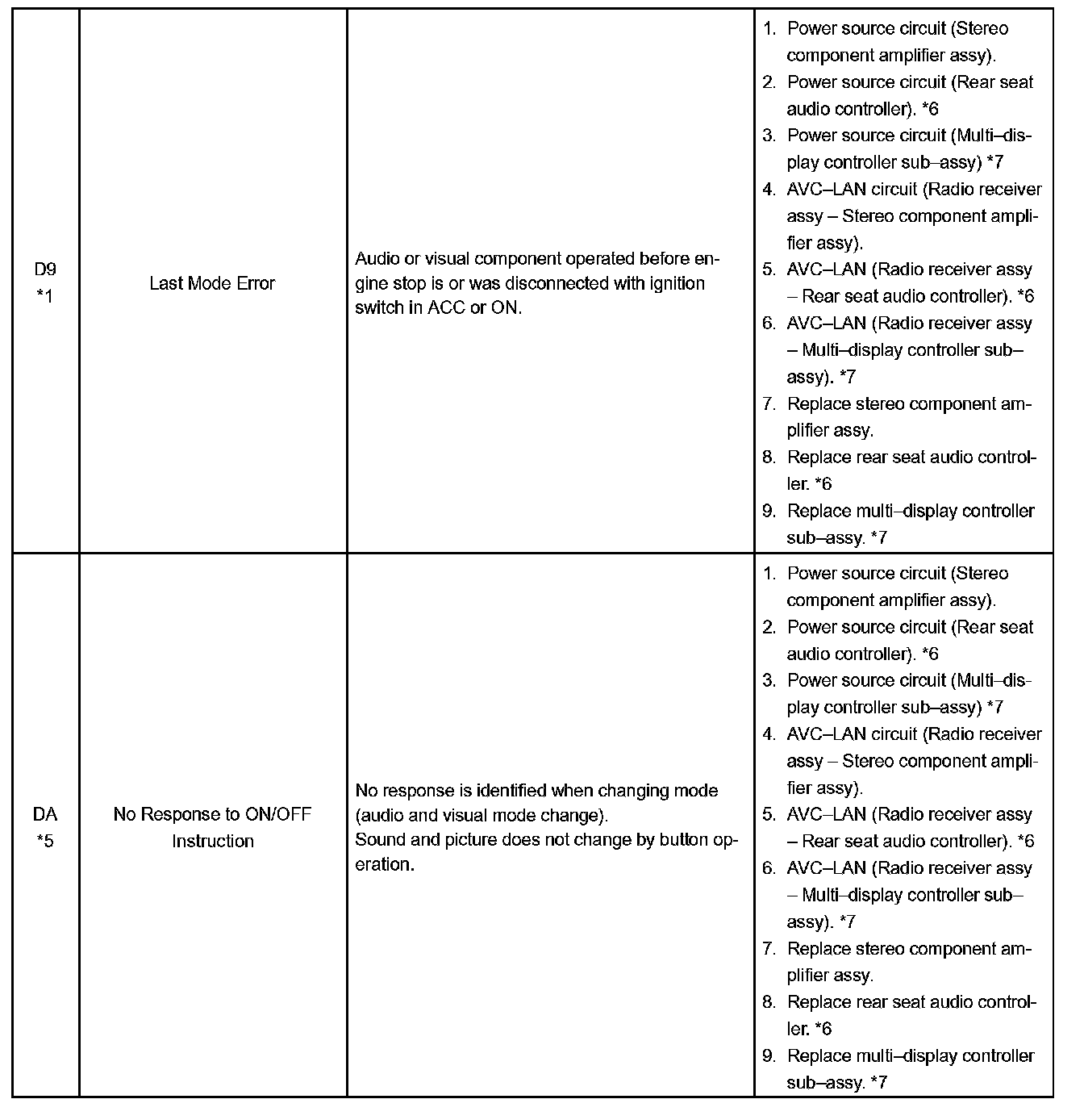

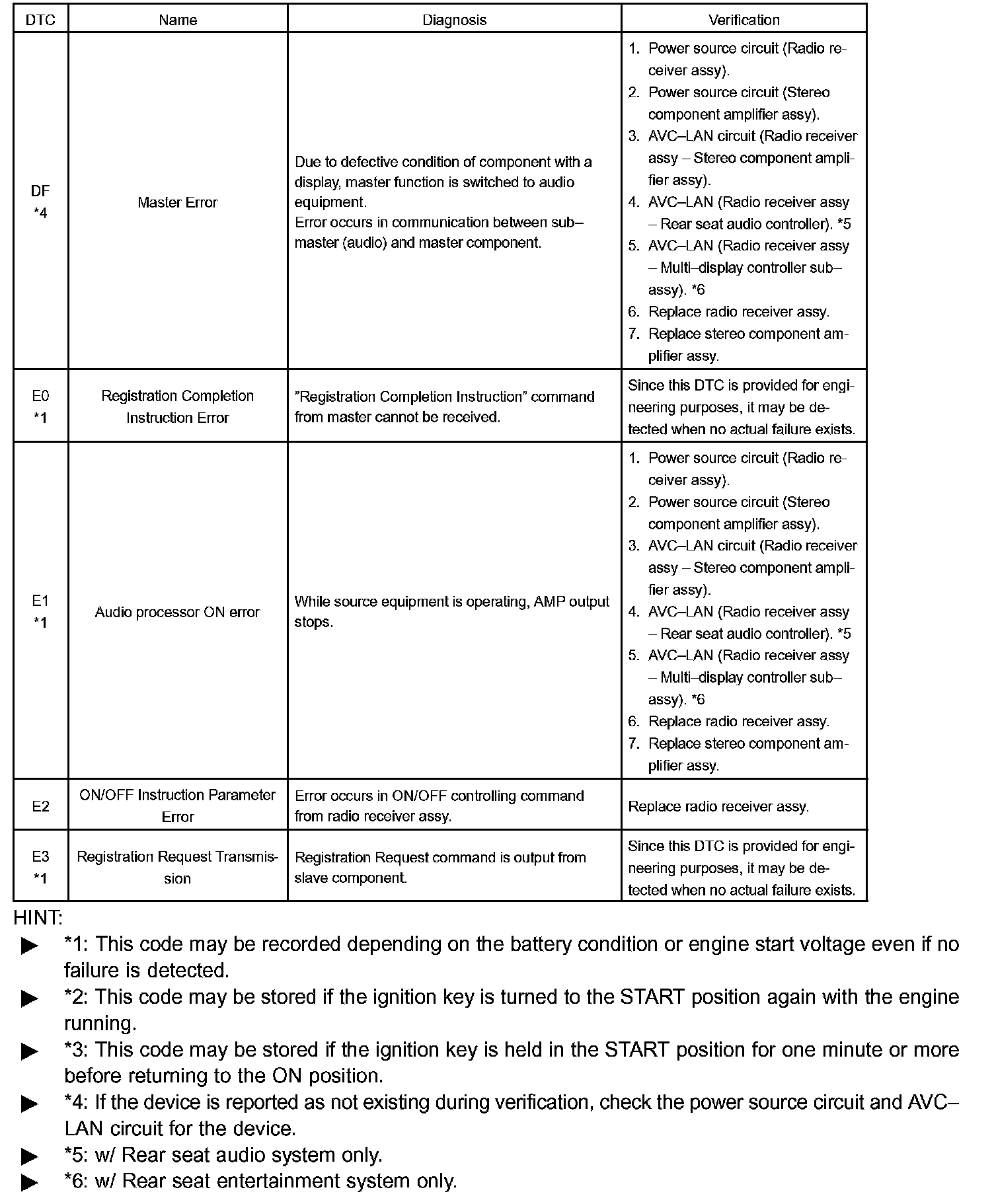

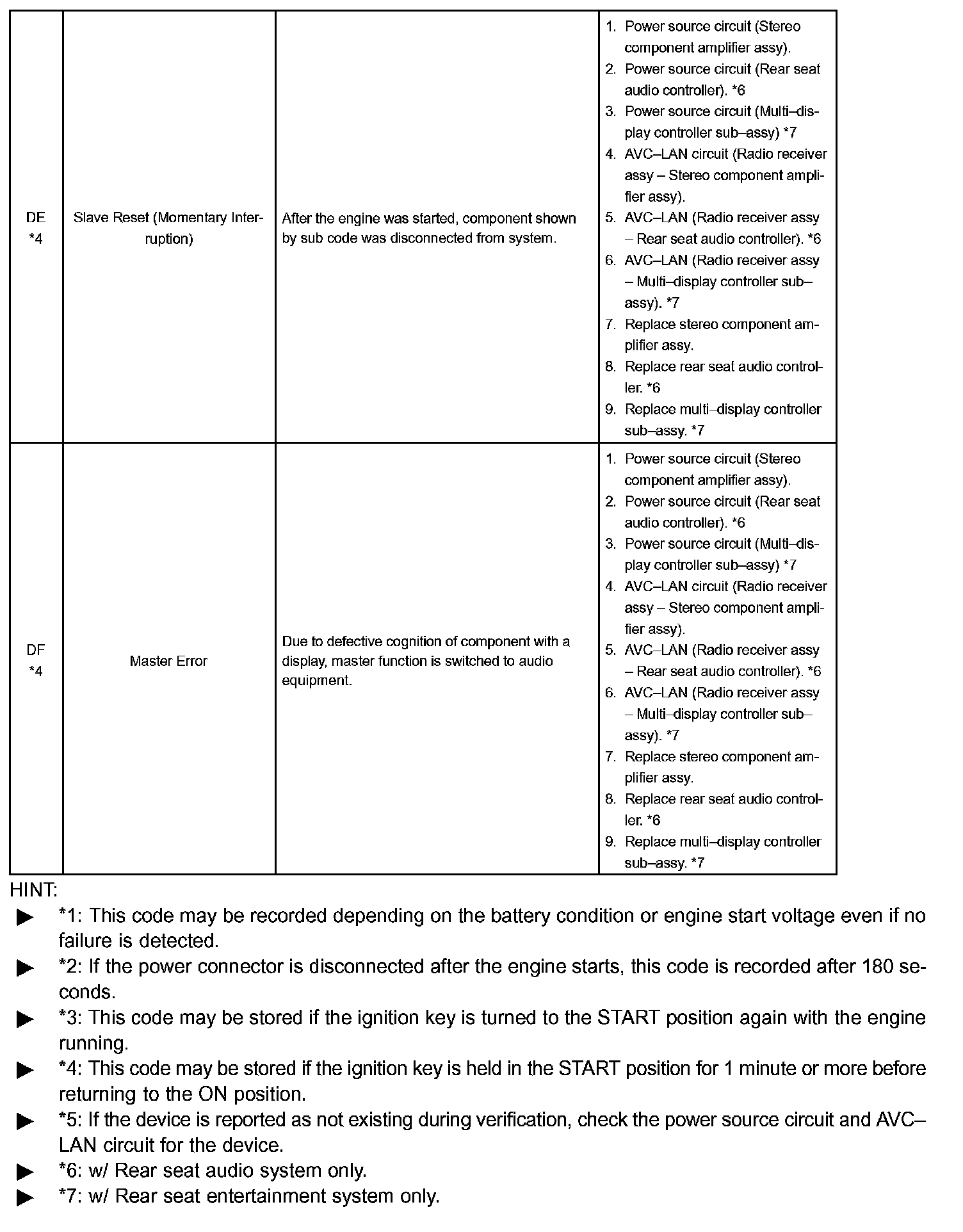

a. Logical address: 01 (Communication control)

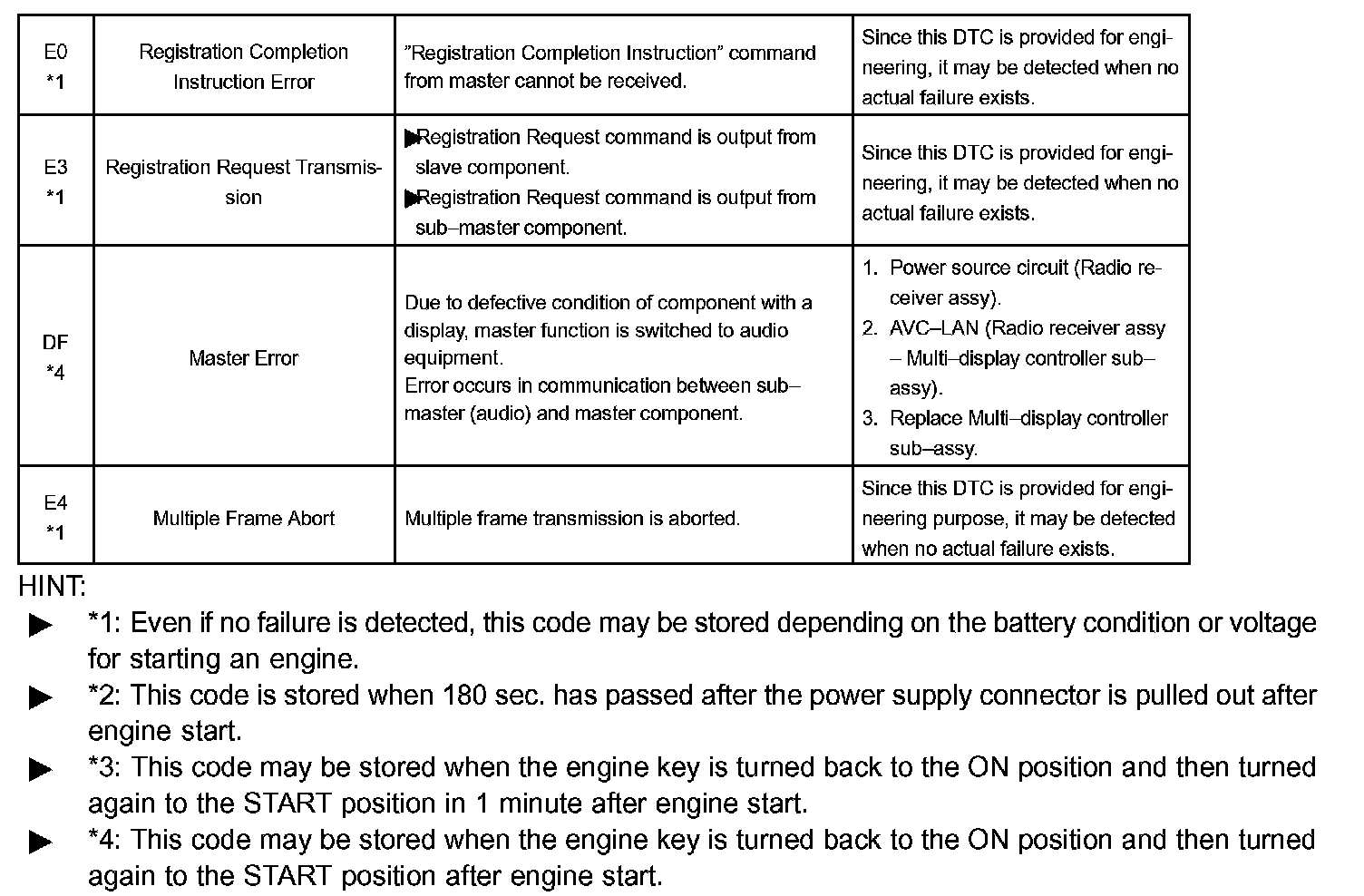

Logical address: 01 (Communication control) continued

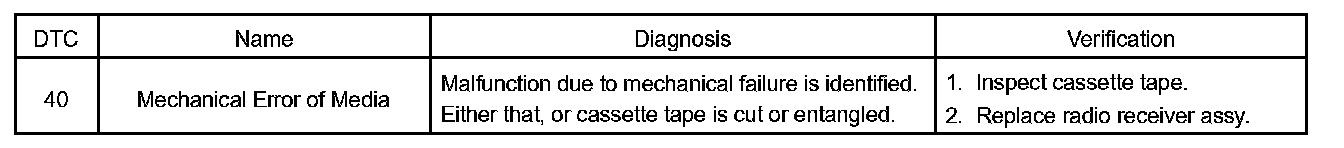

b. Logical address: 61 (Cassette switch)

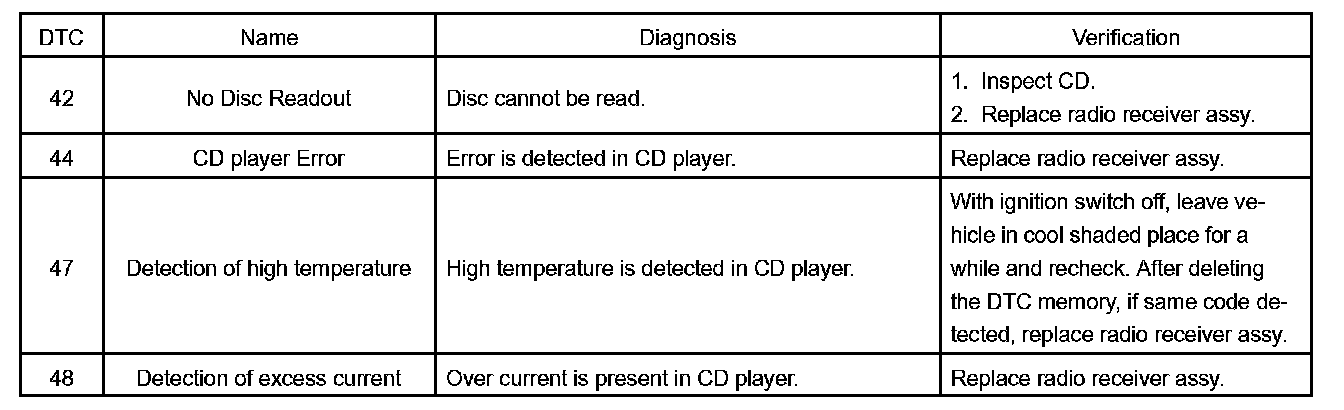

c. Logical address: 62 (CD player)

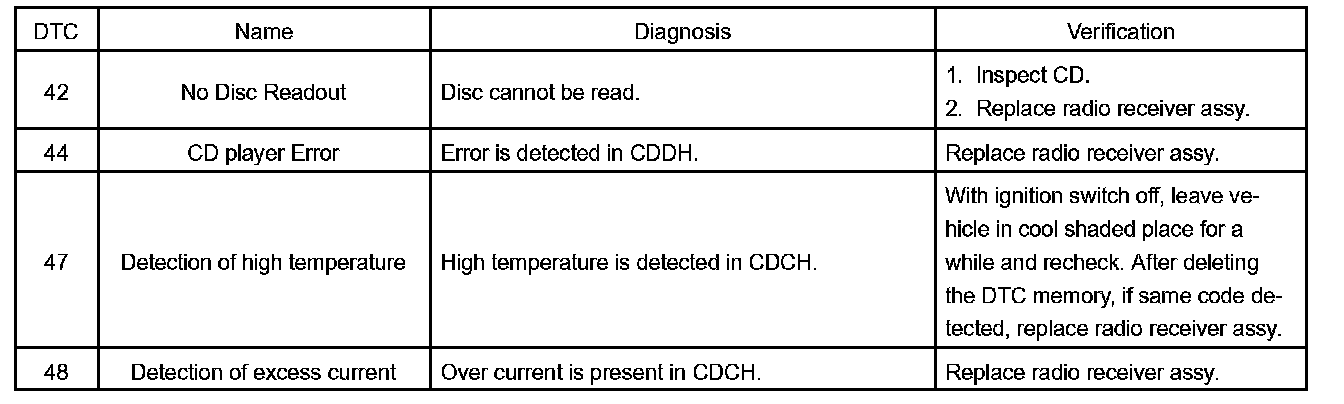

d. Logical address: 63 (In-dash CD changer)

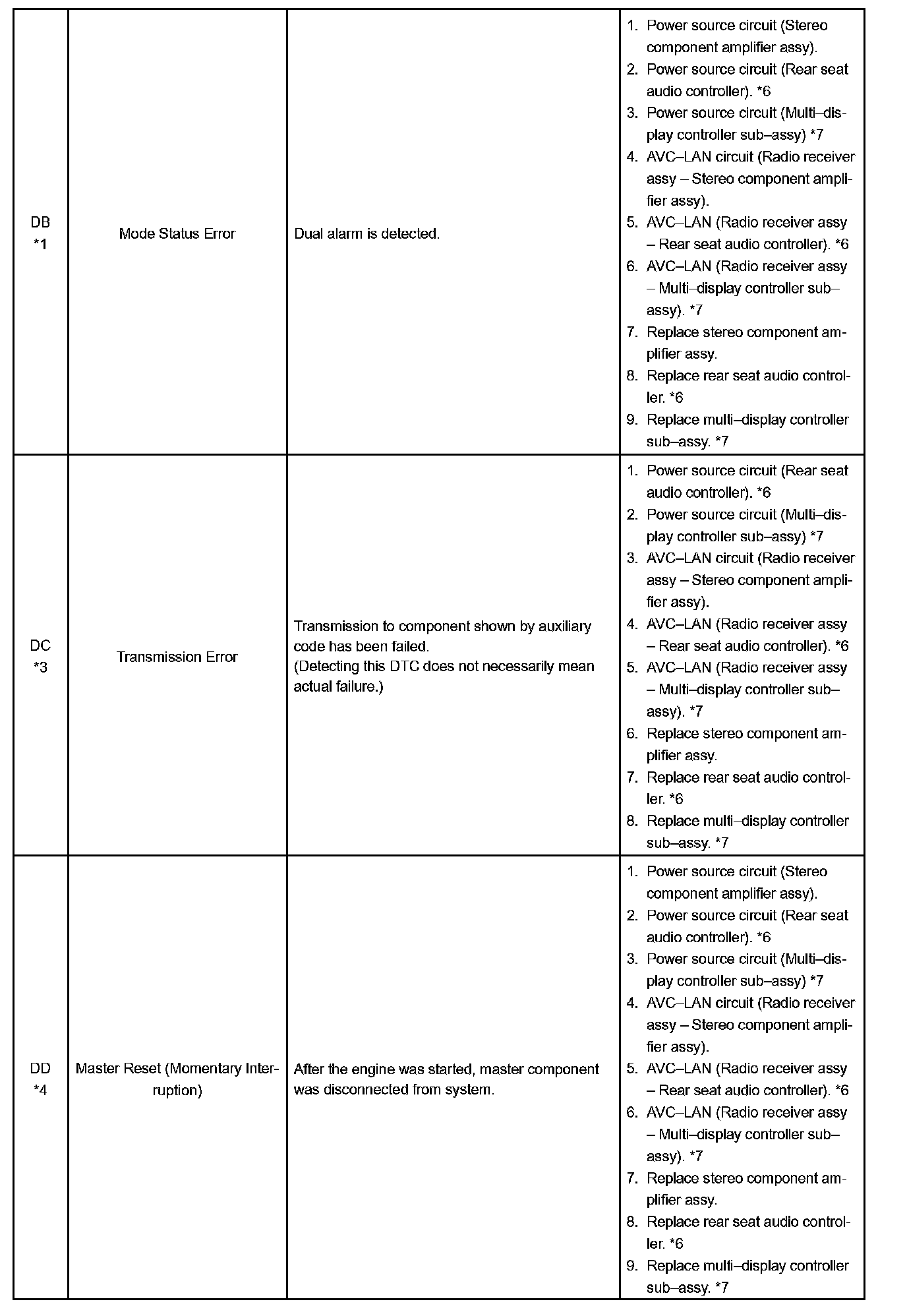

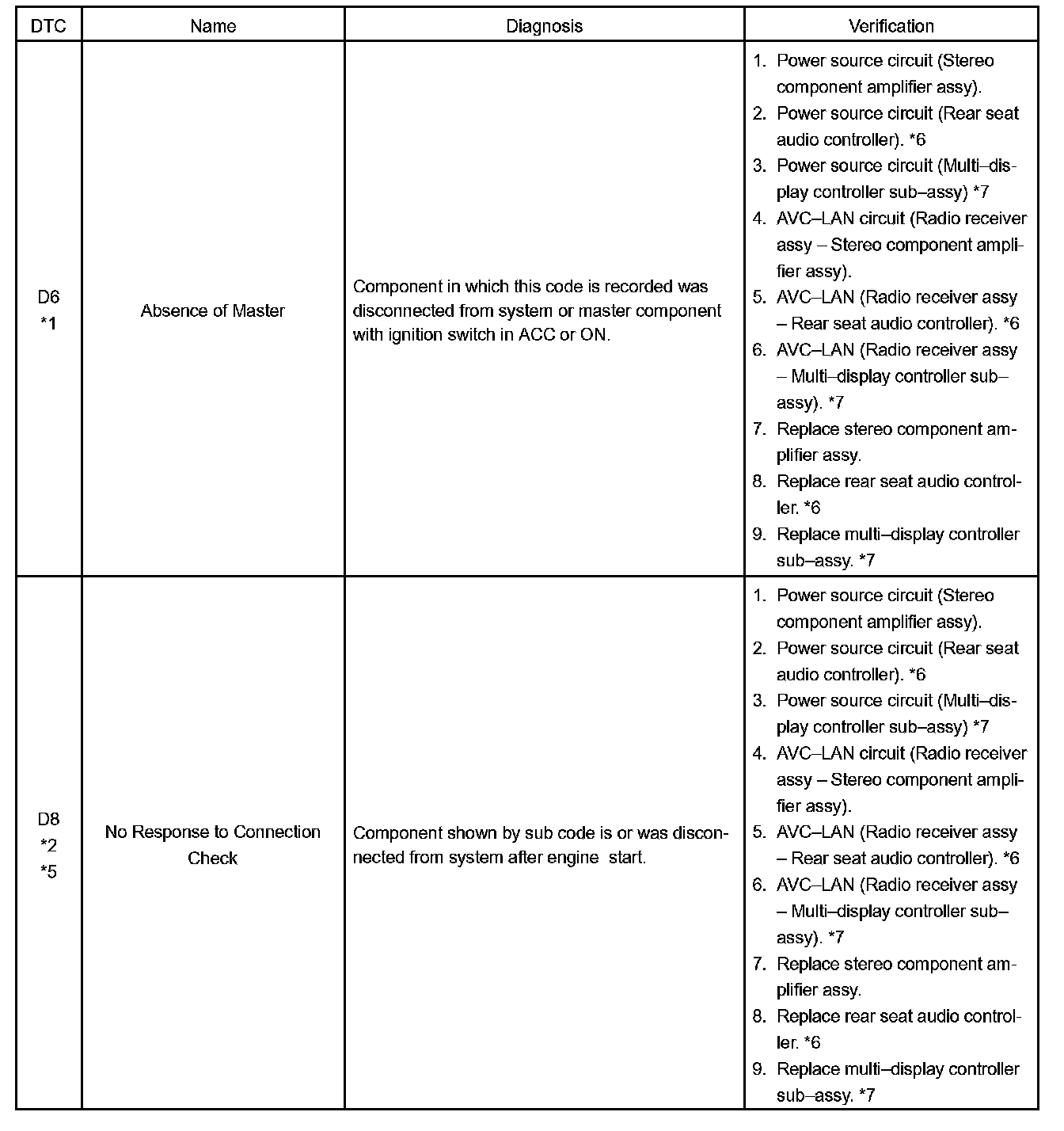

2. Stereo component amplifier assy (physical address: 440) [DSP-AMP]

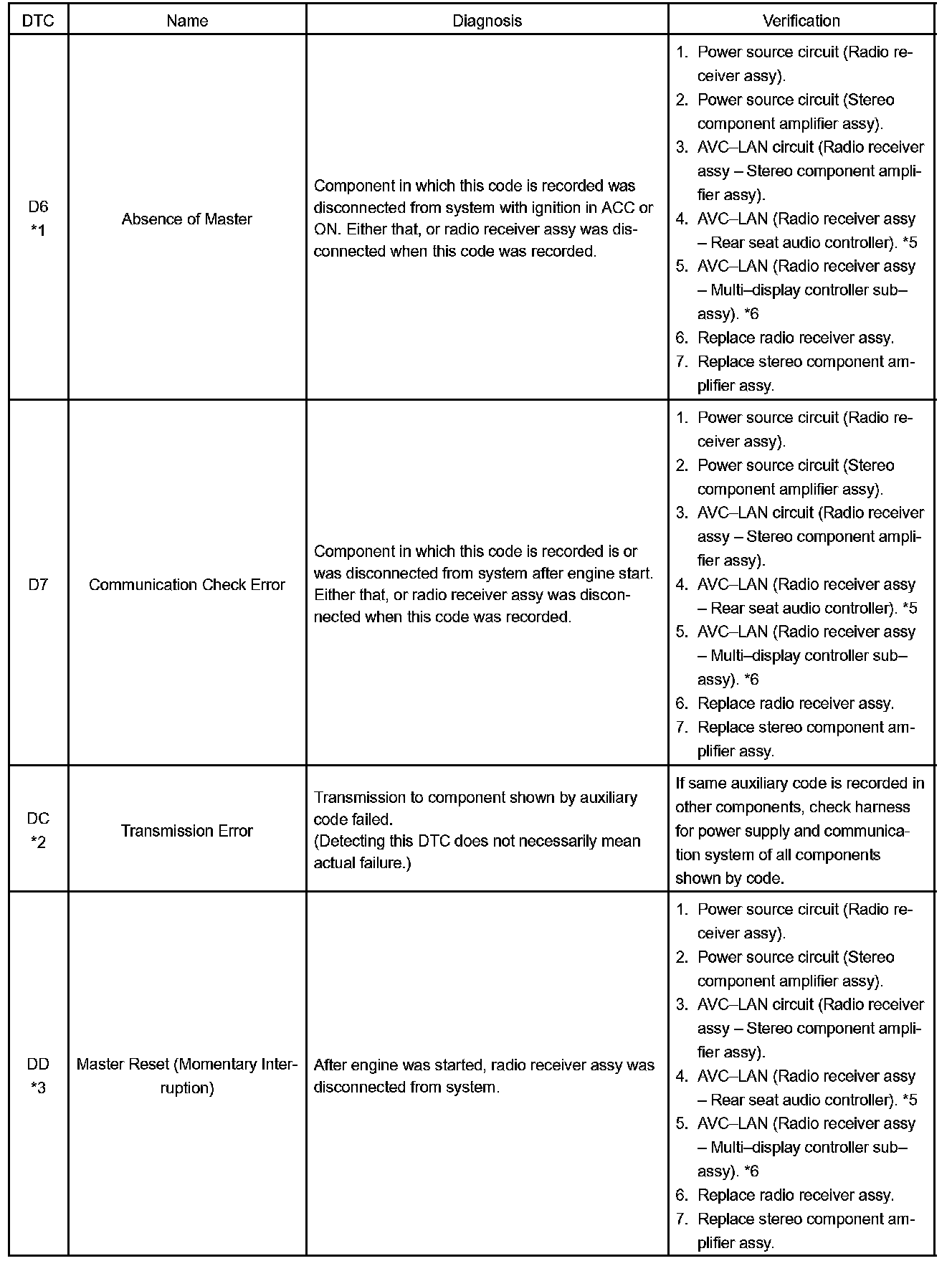

Logical address: 01 (Communication control)

3. Multi-display controller sub-assy (Physical address: 1F6) [RSE ECU, MAIN]

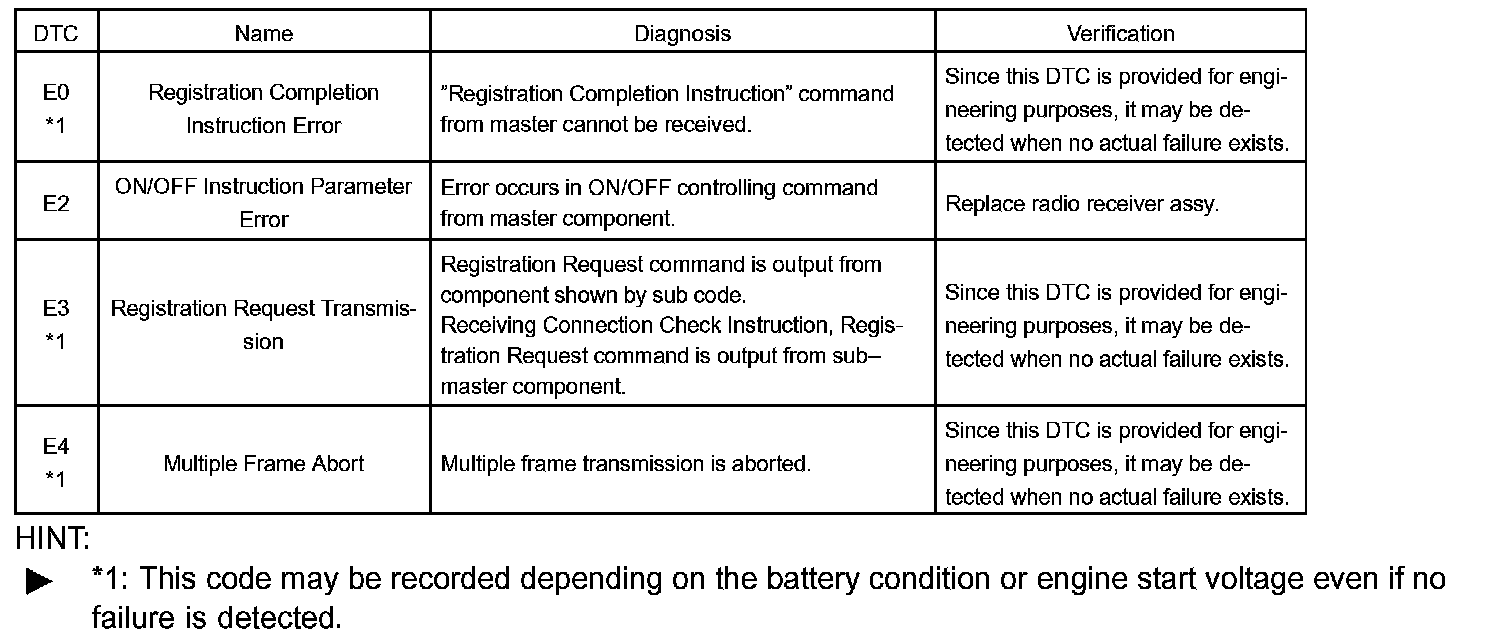

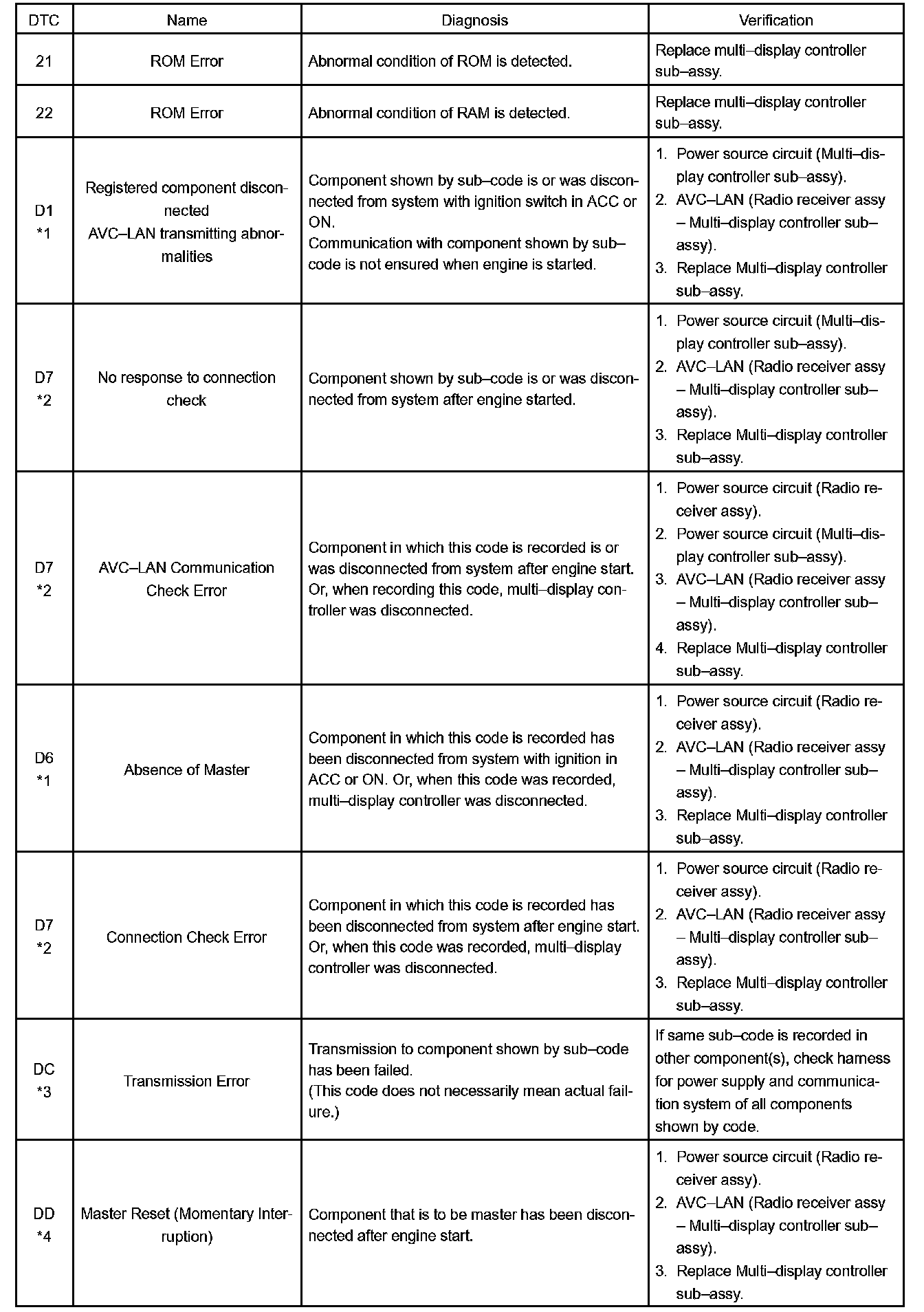

a. Logical address: 01 (Communication control)

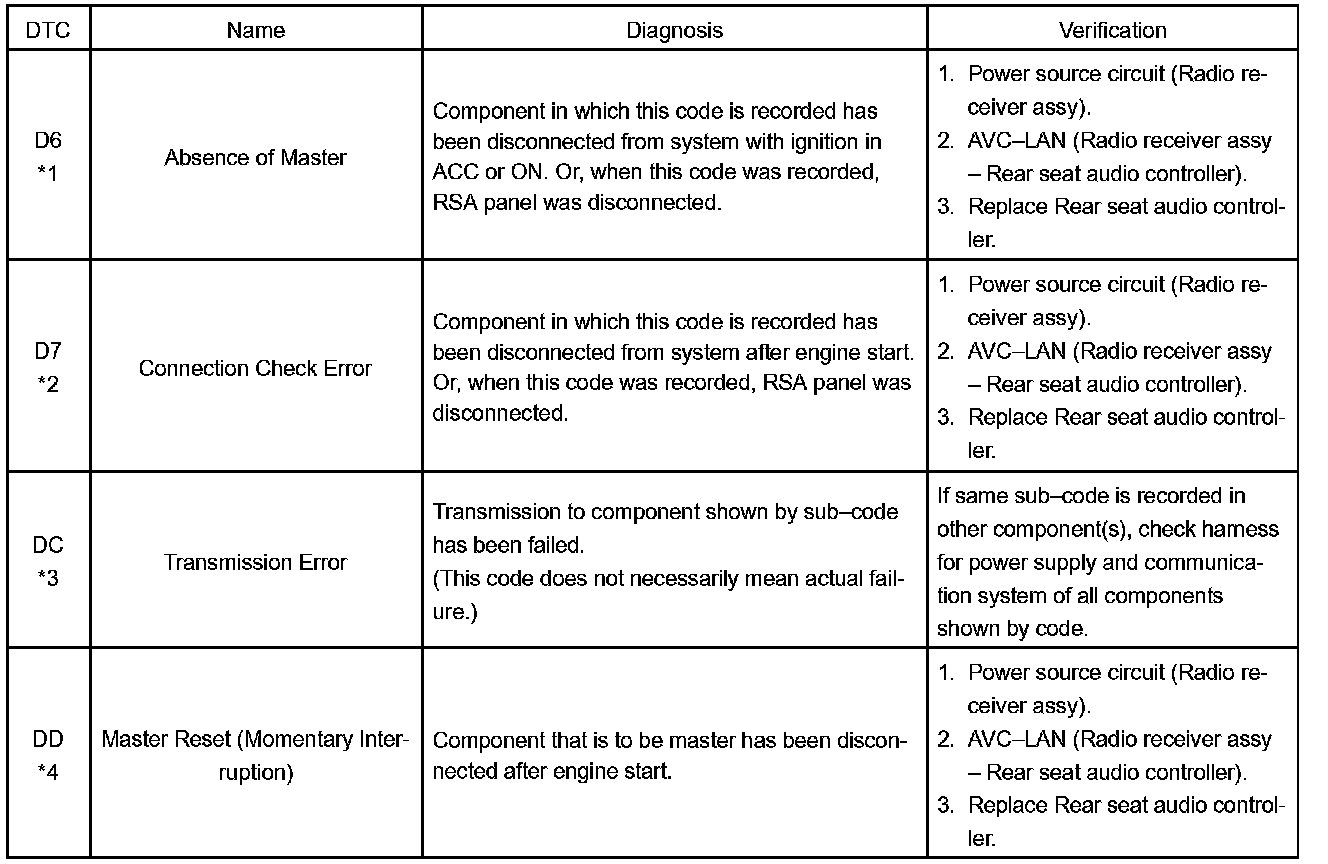

Rear seat audio controller (Physical address: 1F4) [RSA]

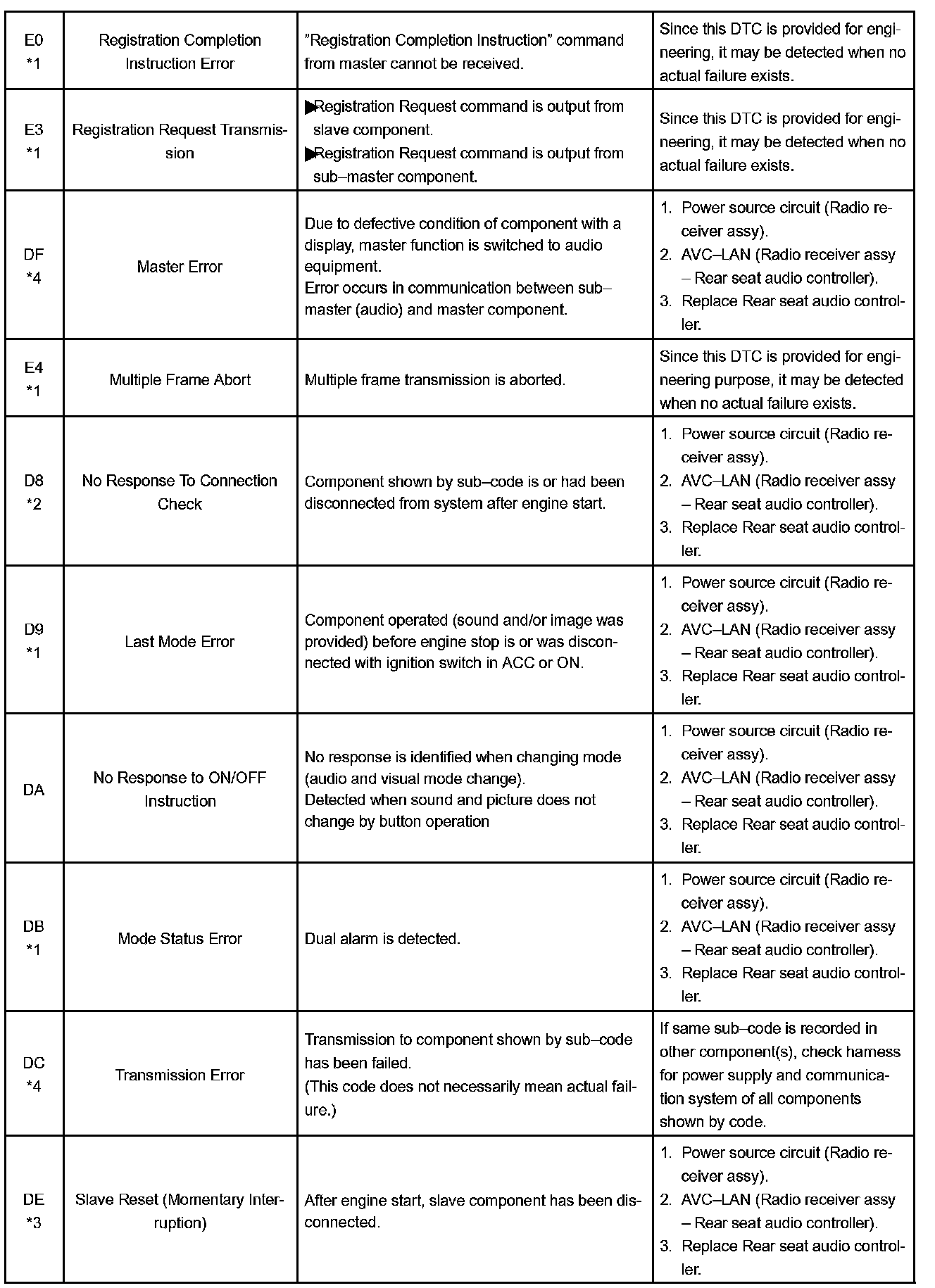

a. Logical address: 01 (Communication control)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: This code may be stored when the engine key is turned 1 min. again after engine start.
- *4: This code may be stored when the engine key is turned again after engine start.
