POWER WINDOW CONTROL SYSTEM TROUBLESHOOTING

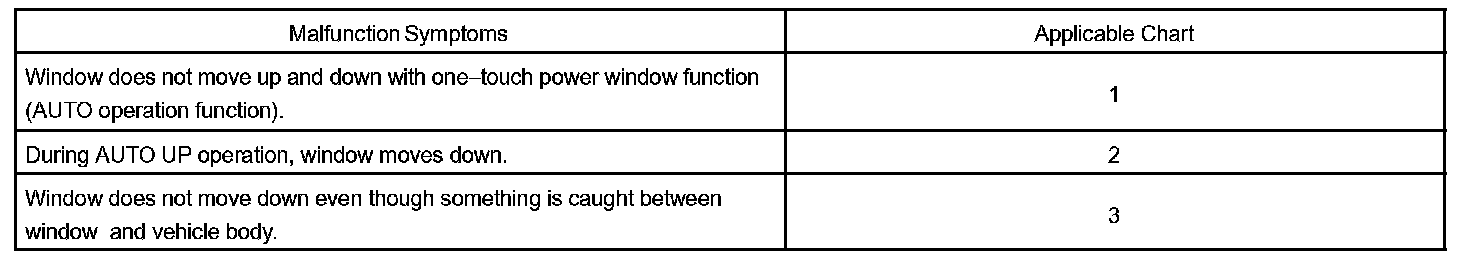

Malfunction Symptoms:
Terminal Location (Wire Harness Side):

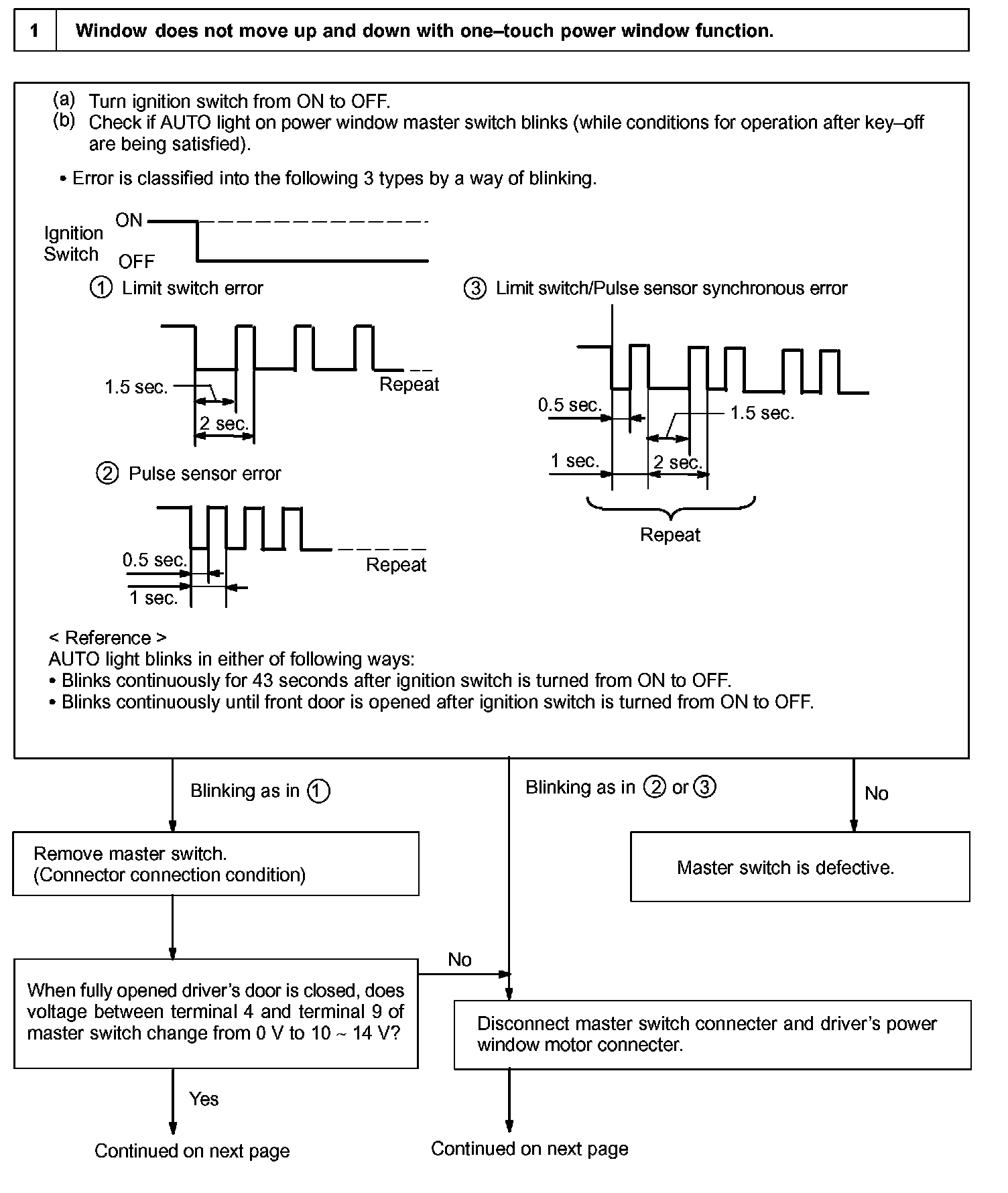

Chart 1:

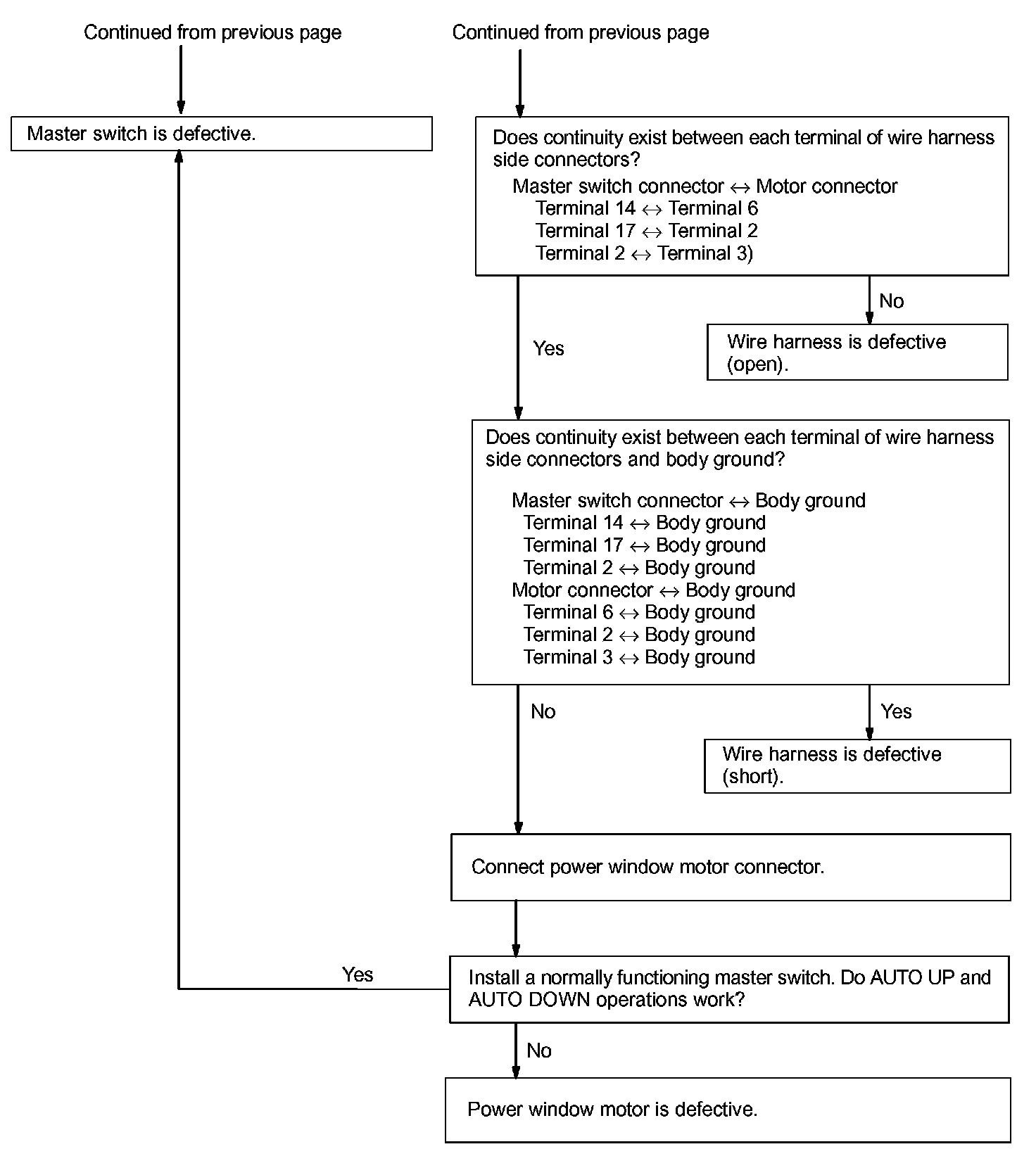

Chart 1 (continued):

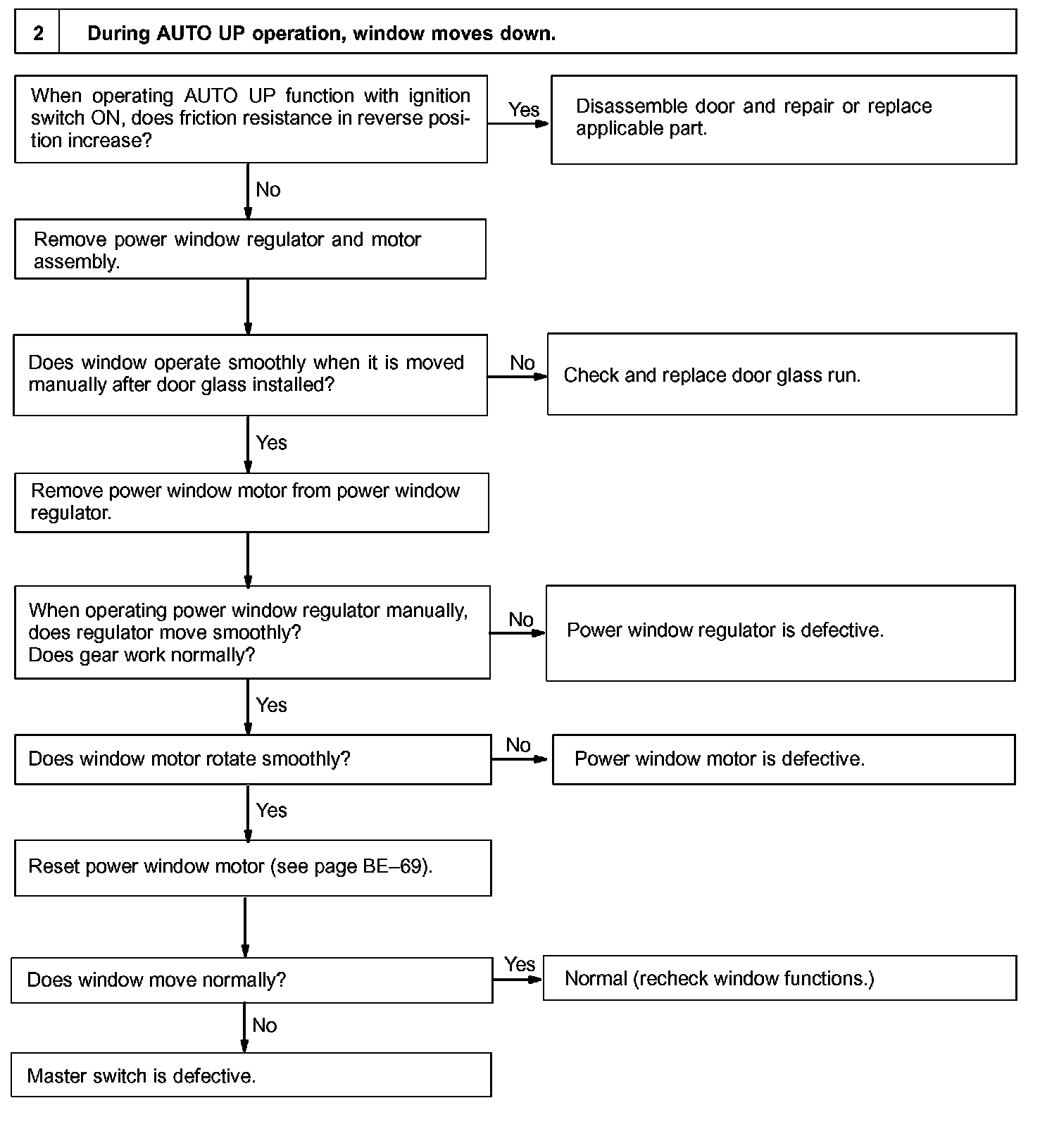

Chart 2:

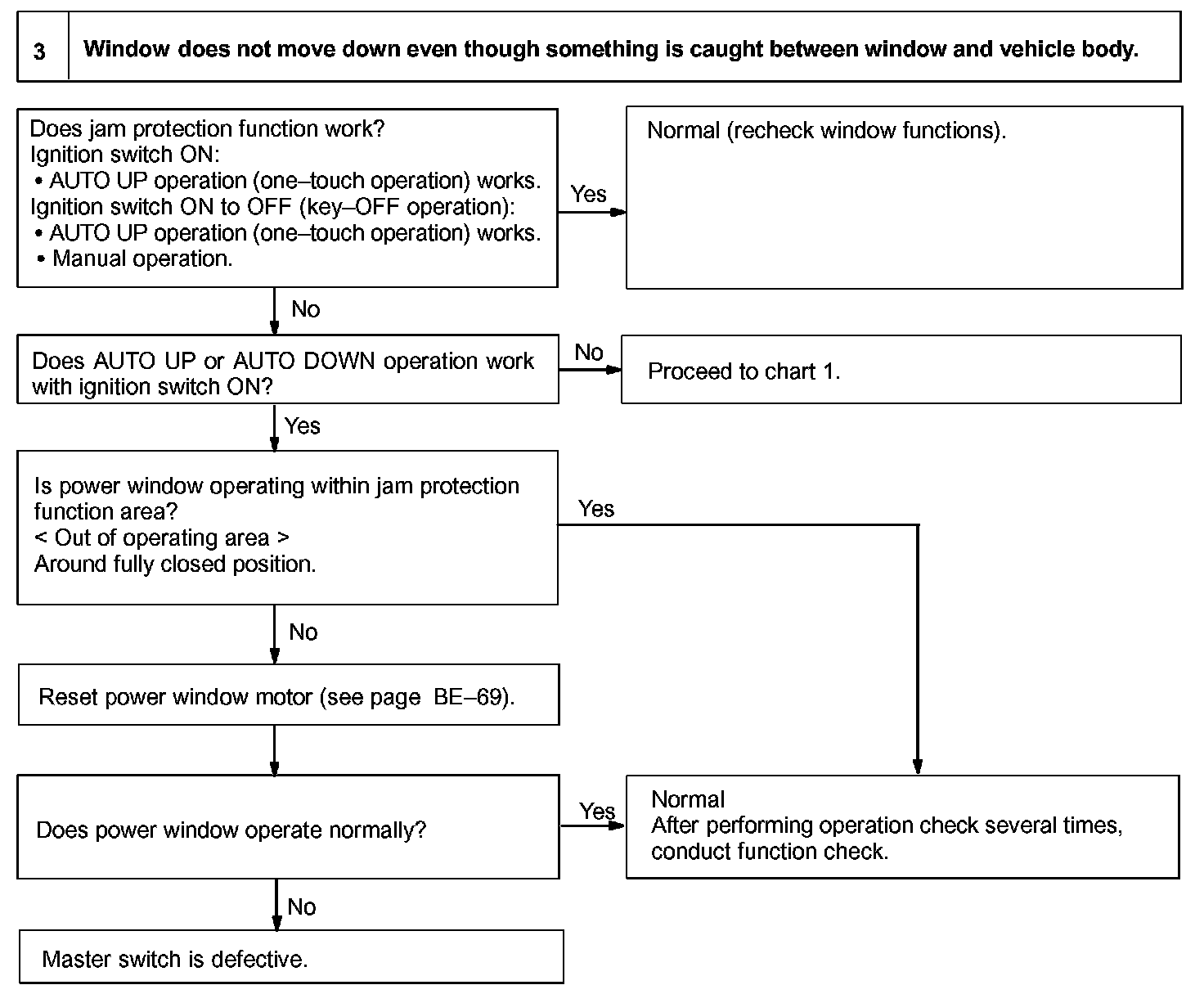

Chart 3:
