Removal and Installation

REMOVAL
1. REMOVE DRIVE SHAFTS

HINT: Support the drive shafts securely.

2. REMOVE PROPELLER SHAFT

HINT: Support the propeller shaft securely.

3. DRAIN DIFFERENTIAL OIL

Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

4. REMOVE DIFFERENTIAL







a. Support the differential with a jack.

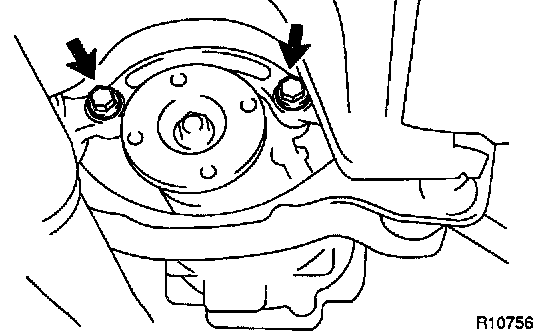

b. Remove the 2 rear mounting bolts.

Torque: 65 Nm (660 kgf-cm, 48 ft. lbs.)

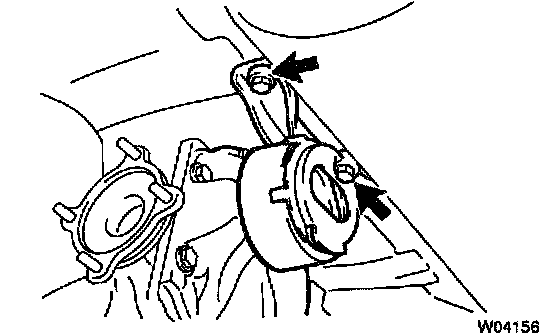

c. Remove the 2 front mounting bolts and differential.

Torque: 117 Nm (1,190 kgf-cm, 86 ft. lbs.)

d. Remove the 2 bolts and differential rear mount cushion from the differential.

Torque: 137 Nm (1,400 kgf-cm, 101 ft. lbs.)


INSTALLATION
Installation is in the reverse order of removal procedure.

HINT: After installation, fill the differential with differential oil.
