Shift Interlock: Testing and Inspection

SHIFT LOCK SYSTEM [U140F]:

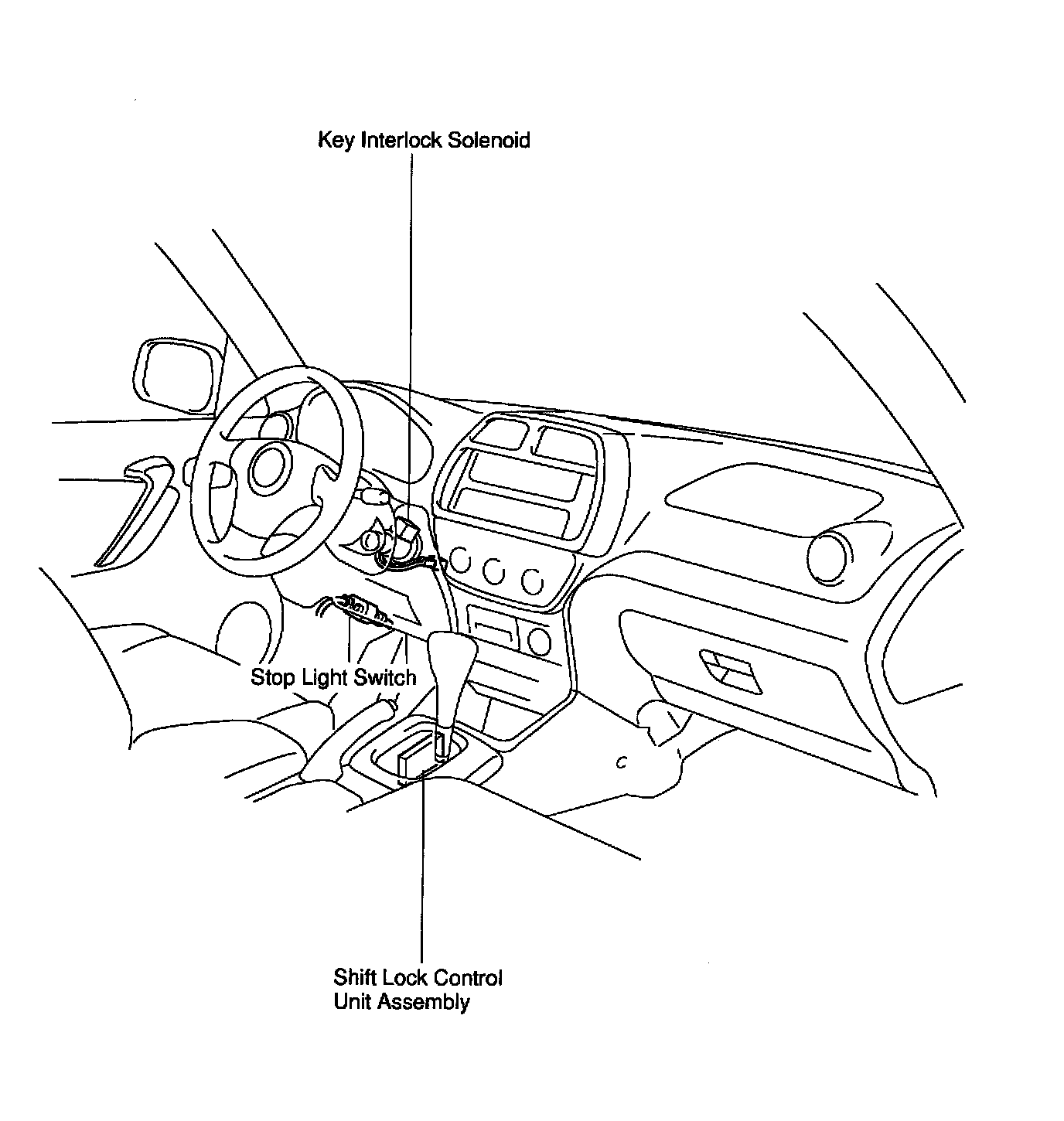

SHIFT LOCK CONTROL SYSTEM
INSPECTION
1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

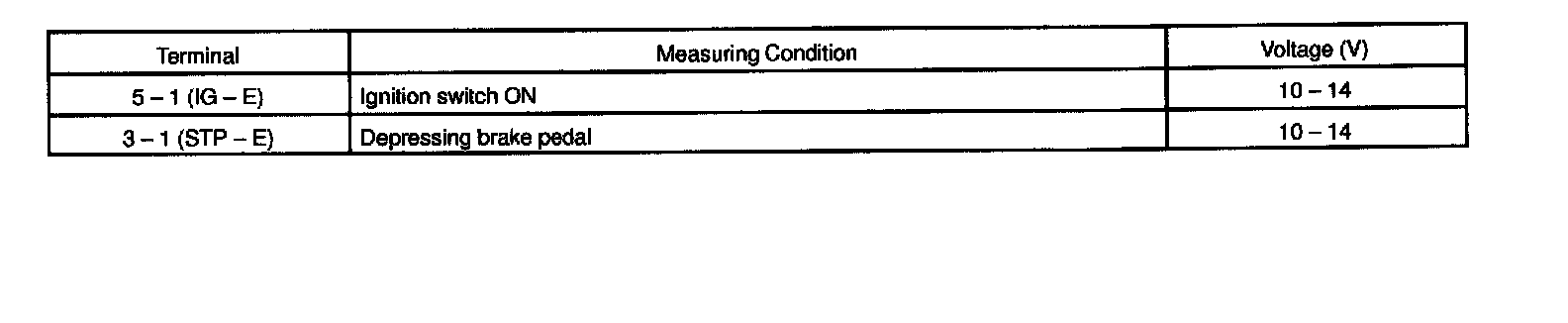

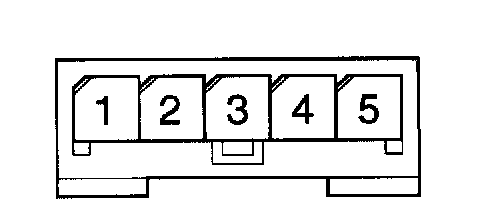

Using a voltmeter, measure the voltage at each terminal.

HINT: Do not disconnect the shift lock control unit assembly connector.

2. INSPECT KEY INTERLOCK SOLENOID







a. Disconnect the solenoid connector.

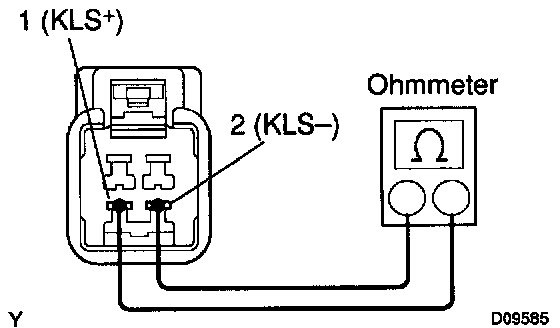

b. Using an ohmmeter, measure resistance between terminals.

Standard resistance: 12.5 - 16.5 ohms

If resistance value is not as specified, replace the solenoid.

c. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid. If the solenoid does not operate, replace the solenoid.
