Fuse: Application and ID

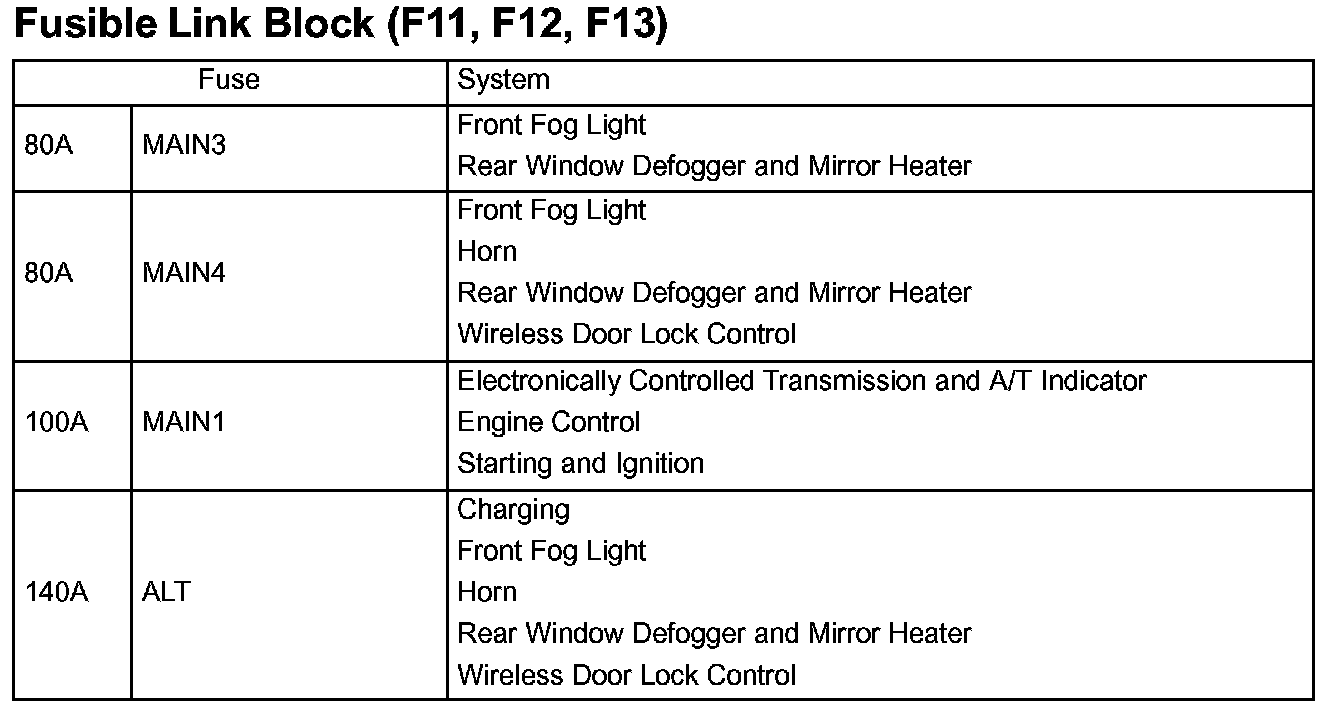

Fusible Link Block (F11, F12, F13):

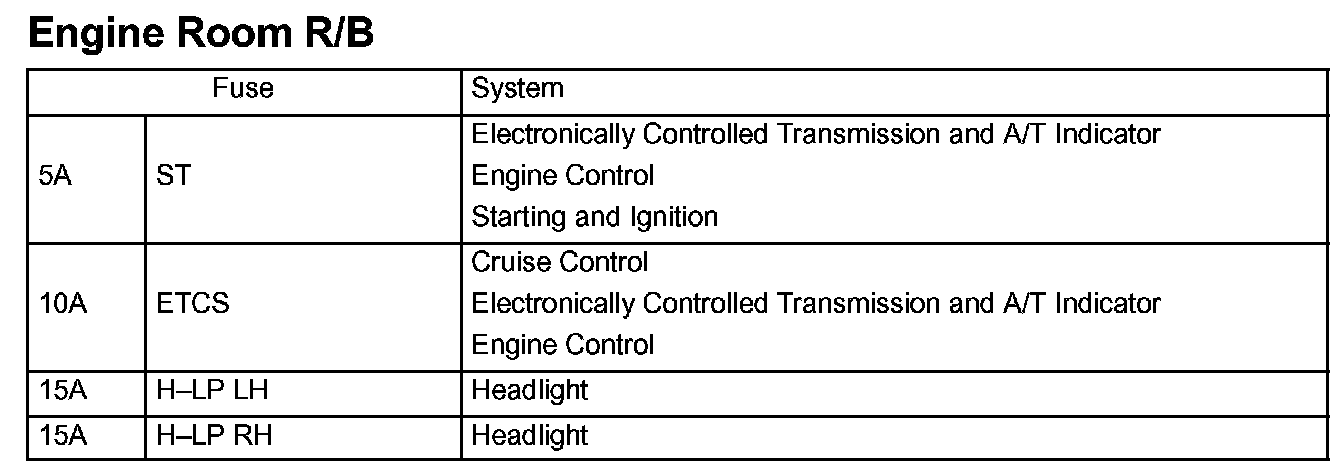

Engine Room R/B:

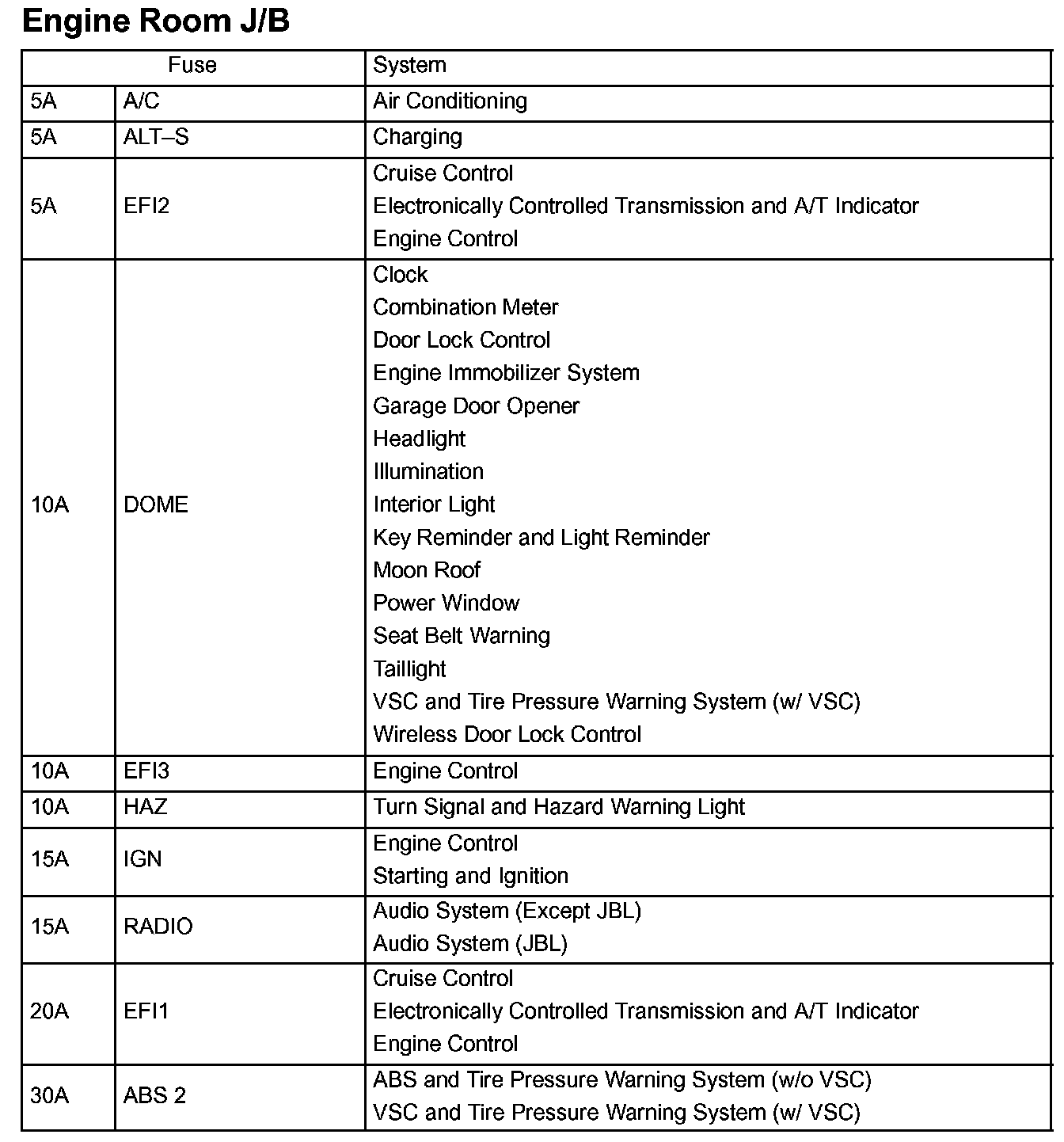

Engine Room J/B Part 1:

Engine Room J/B Part 2:

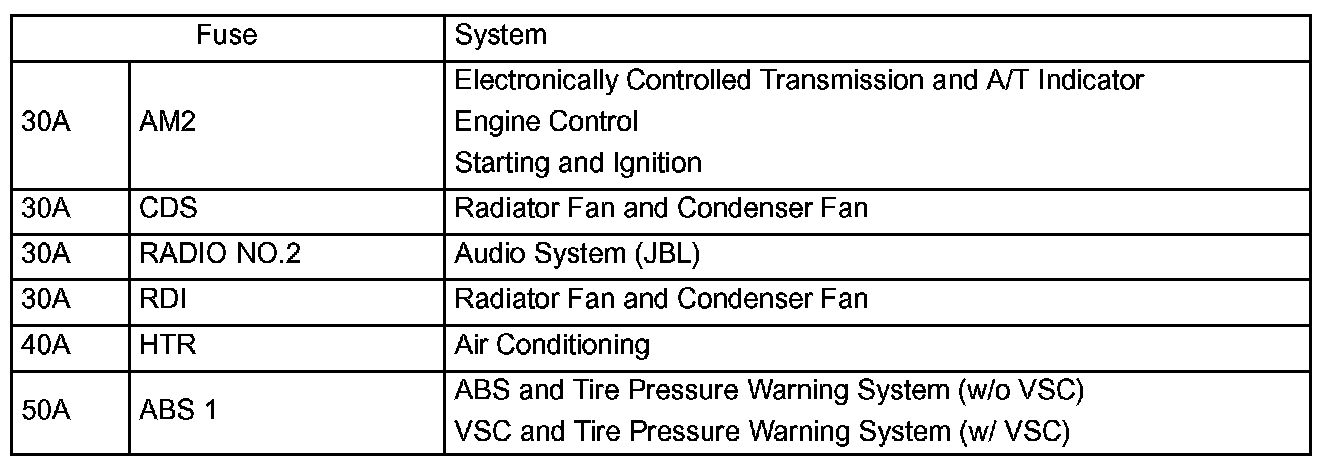

Engine Room Fuse Details

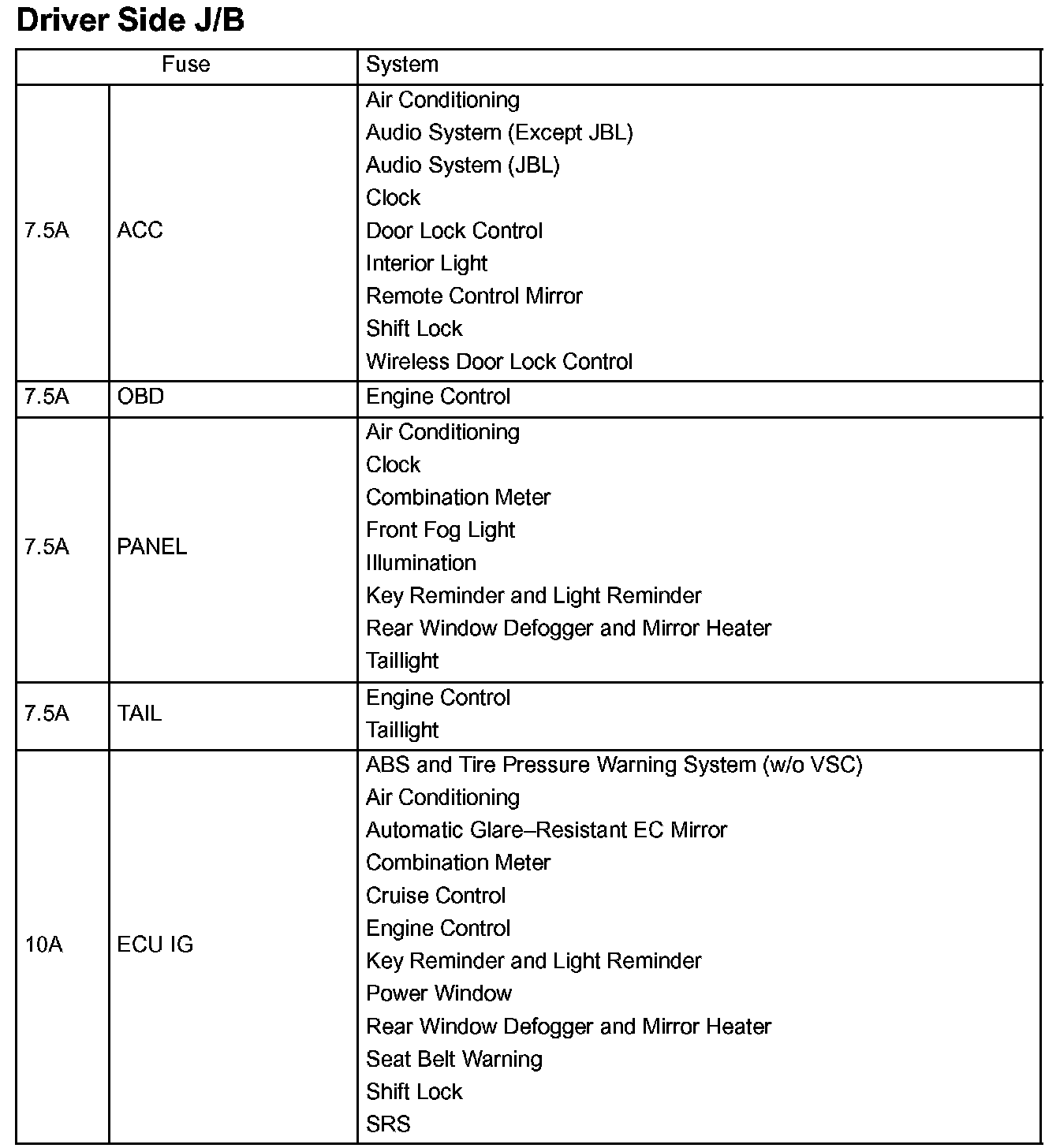

Driver Side J/B Part 1:

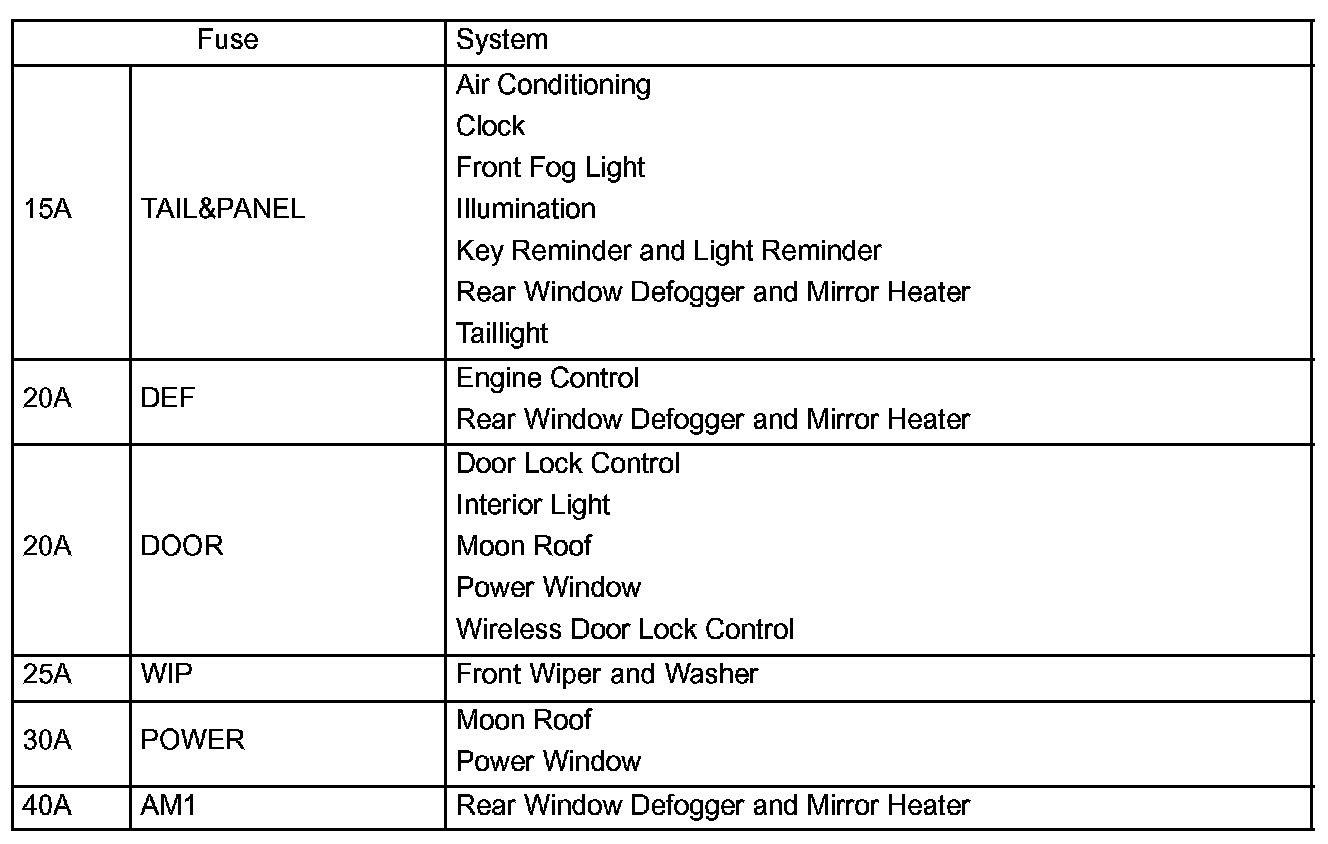

Driver Side J/B Part 2:

Driver Side J/B Part 3:

Interior Panel Fuse Details
