Valve Clearance

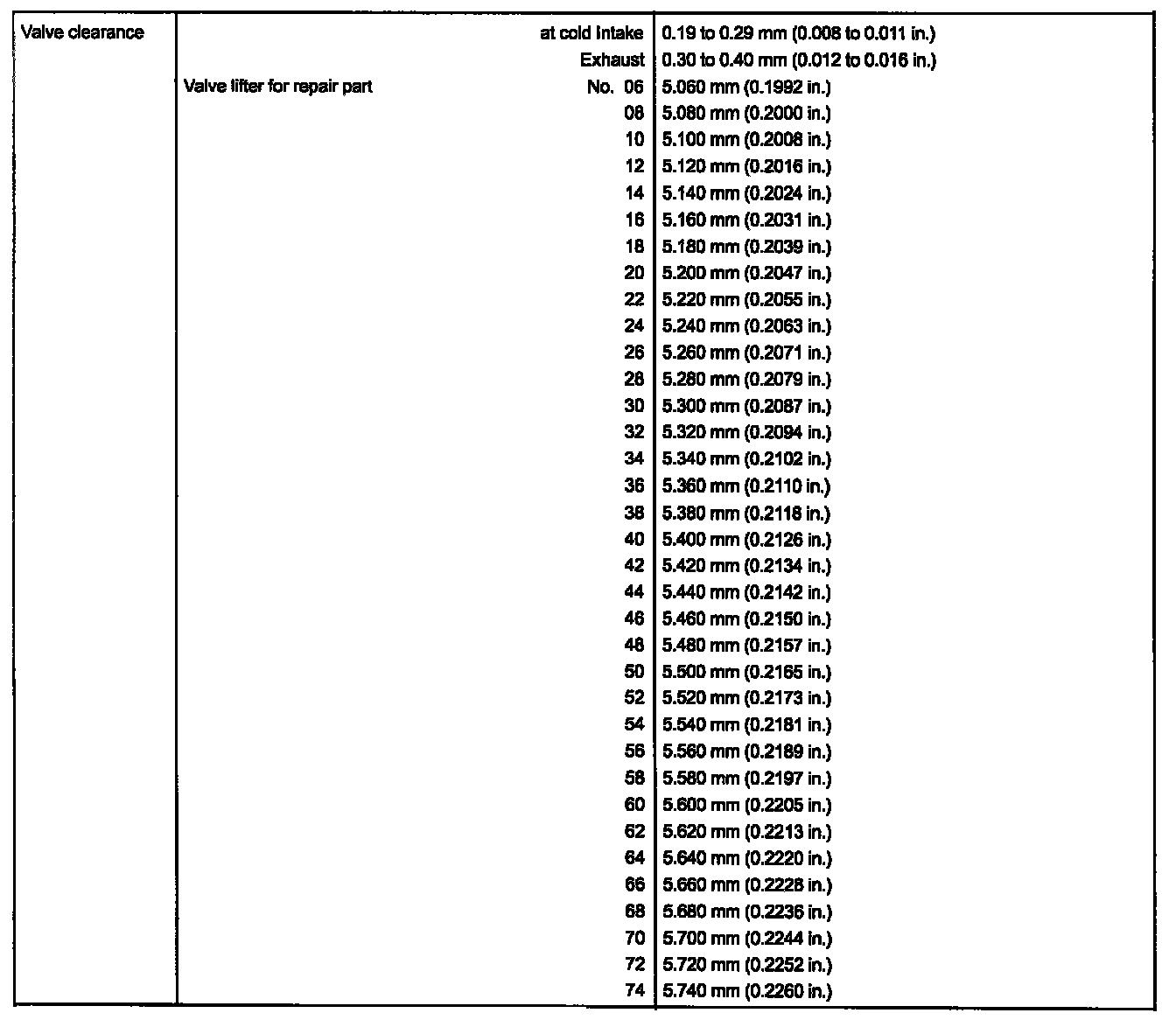

VALVES AND VALVE CLEARANCE

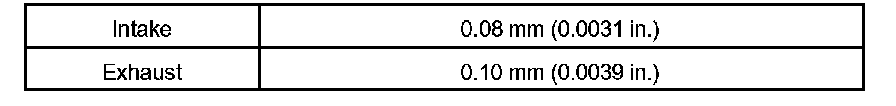

Valve Clearance:

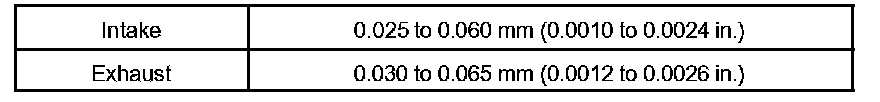

STANDARD OIL CLEARANCE:






MAXIMUM OIL CLEARANCE:

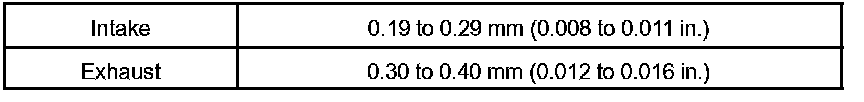

Valve Clearance (cold):

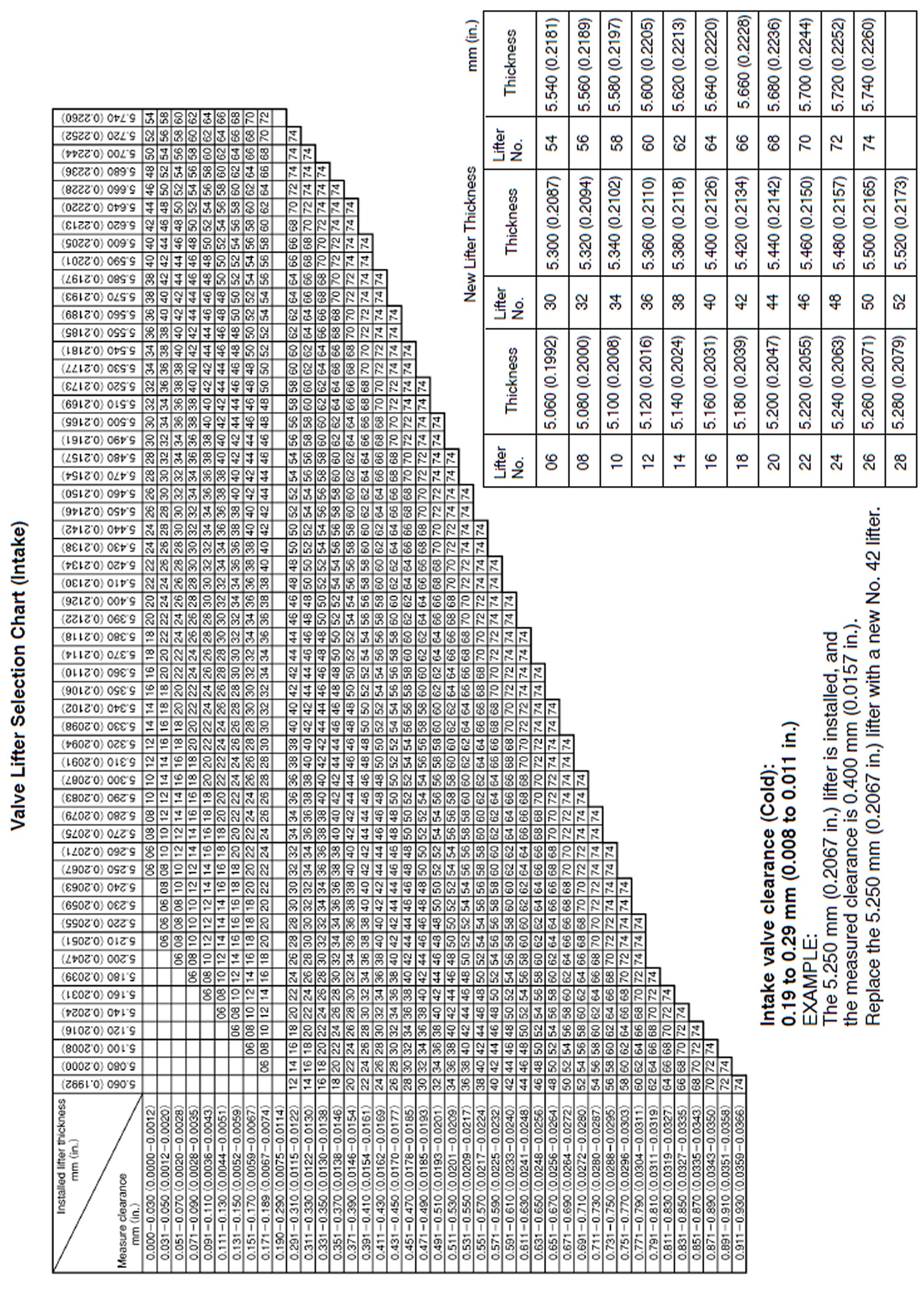

Valve Lifter Selector Chart (Intake):

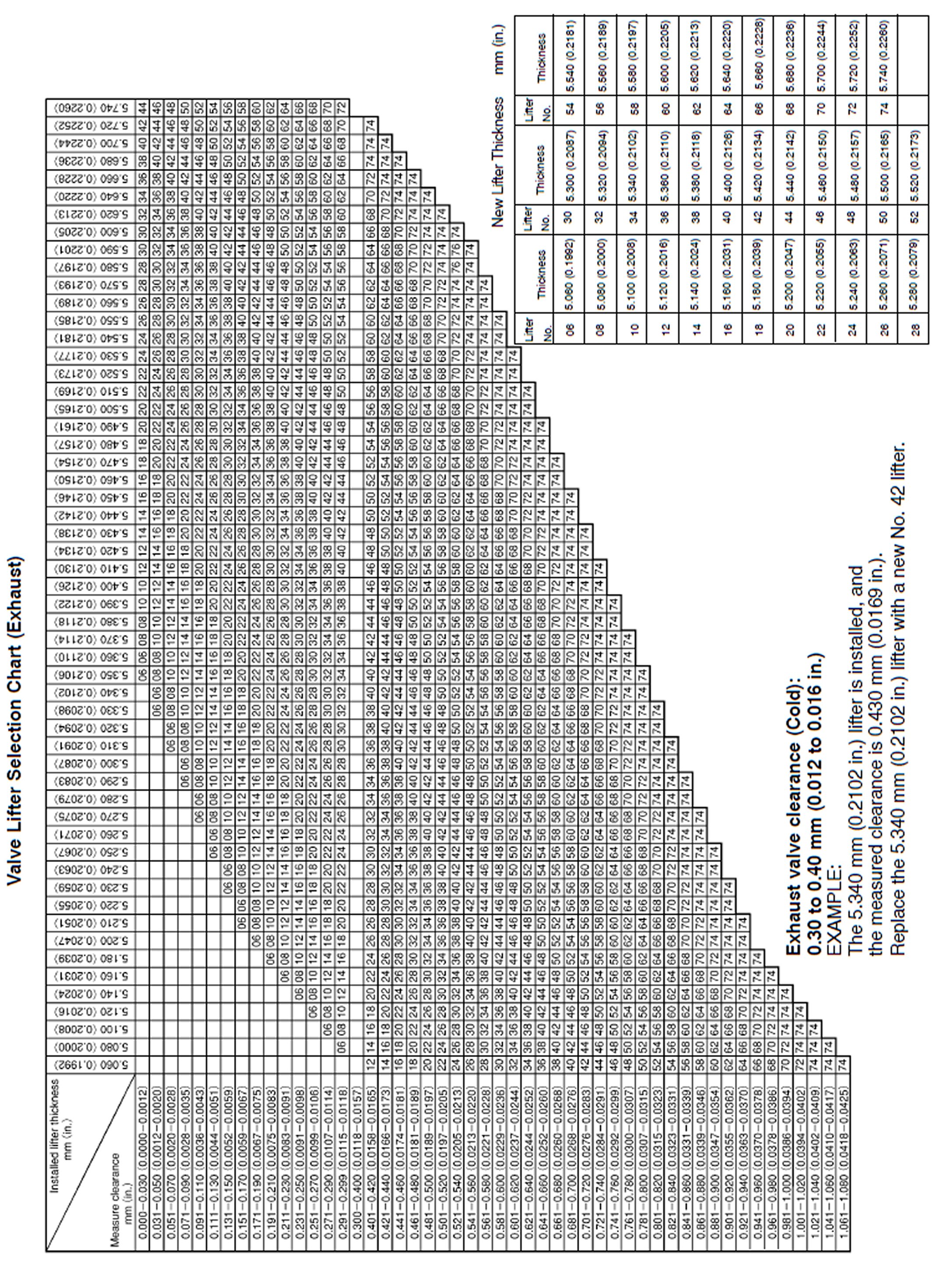

Valve Lifter Selector Chart (Exhaust):
