Crankshaft Gear/Sprocket

Timing Chain, Sprocket, Tensioner, Slipper, And Vibration Damper:

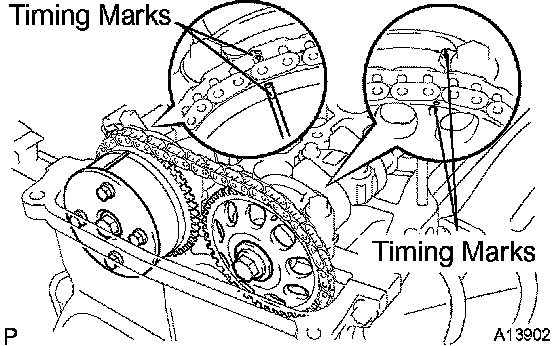

Timing marks of the camshaft timing sprocket and VVT timing sprocket are aligned with the timing marks of the No. 1 and No. 2 bearing caps as shown in the illustration.
If not, turn the crankshaft 1 revolution (360°) and align the marks as above.

Crankshaft Pulley Bolt 180 Nm (1,836 kgf-cm, 132 ft. lbs.)
