Camshaft Bearing
BEARING CAP BOLTS

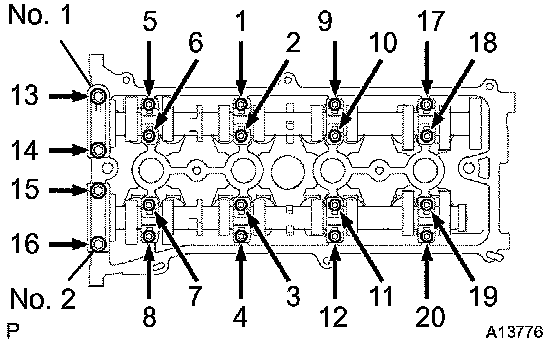

Install and uniformly tighten the 20 bearing cap bolts in several passes, in the sequence shown.
Torque:
No. 1 and No. 2 29.5 Nm (301 kgf-cm, 22 ft. lbs.)
No. 3 - 20 9.0 Nm (92 kgf-cm, 80 inch lbs.)
Install and uniformly tighten the 20 bearing cap bolts in several passes, in the sequence shown.
Torque:
No. 1 and No. 2 29.5 Nm (301 kgf-cm, 22 ft. lbs.)
No. 3 - 20 9.0 Nm (92 kgf-cm, 80 inch lbs.)
