Seat Occupant Sensor: Testing and Inspection





Passenger's seat only:

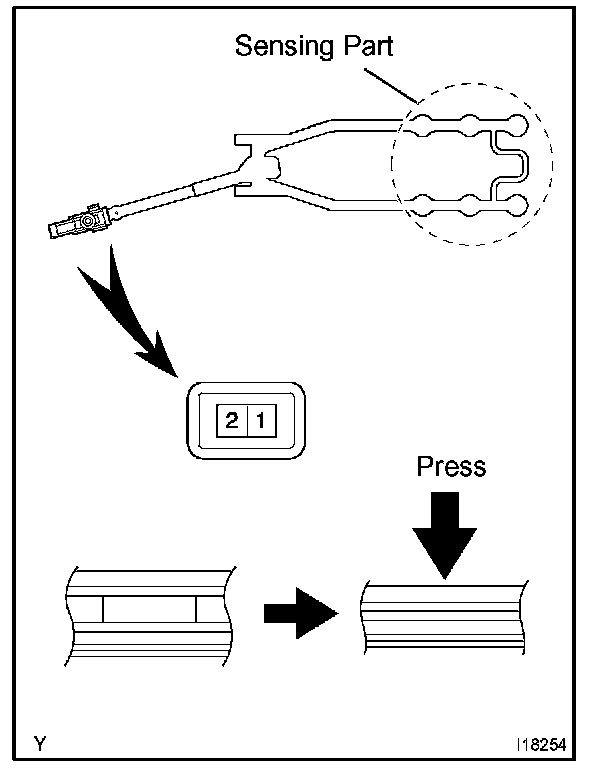

INSPECT SEAT BELT WARNING OCCUPANT DETECTION SENSOR CONTINUITY
Press the sensing part and check if continuity exists between terminals 1 and 2.
If the continuity is not as specified, replace the seat cushion pad with sensor.
