Heated Glass Element Relay: Testing and Inspection

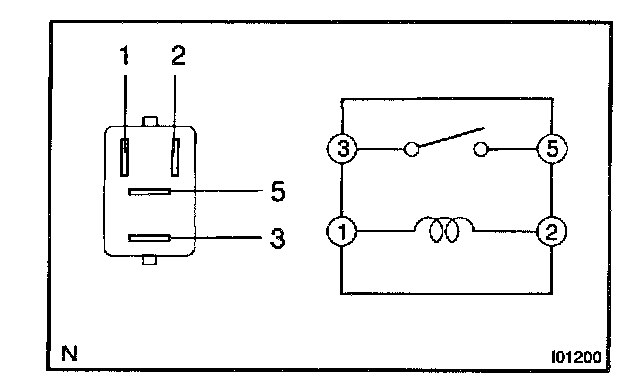

2. INSPECT REAR DEFOGGER RELAY CONTINUITY

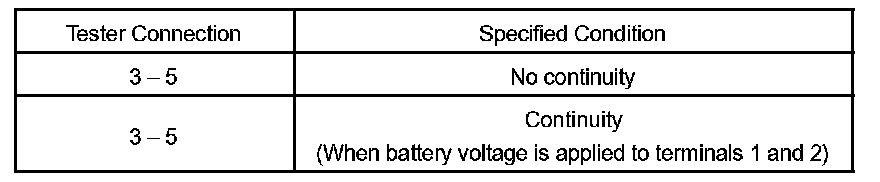

If the continuity is not as specified, replace the relay.
