Fog/Driving Lamp Relay: Testing and Inspection

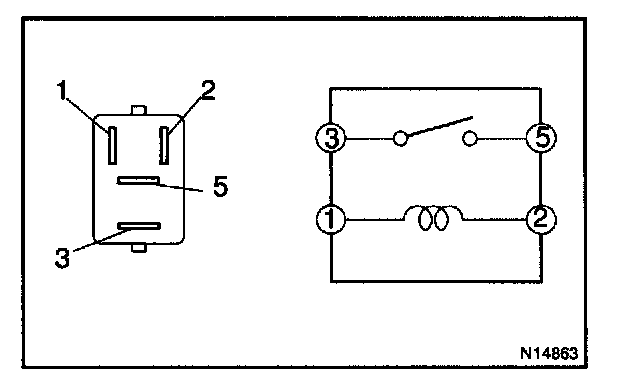

INSPECT FRONT FOG LIGHT RELAY CONTINUITY

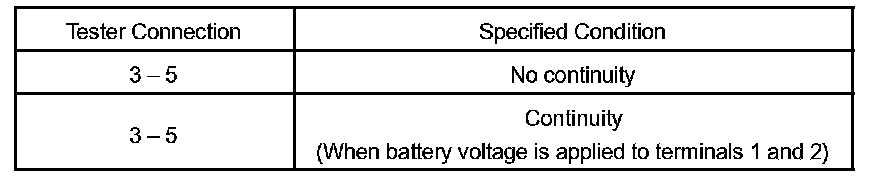

If the continuity is not as specified, replace the relay.
