Toyota Truck
>>
2005
>>
RAV4 4WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters

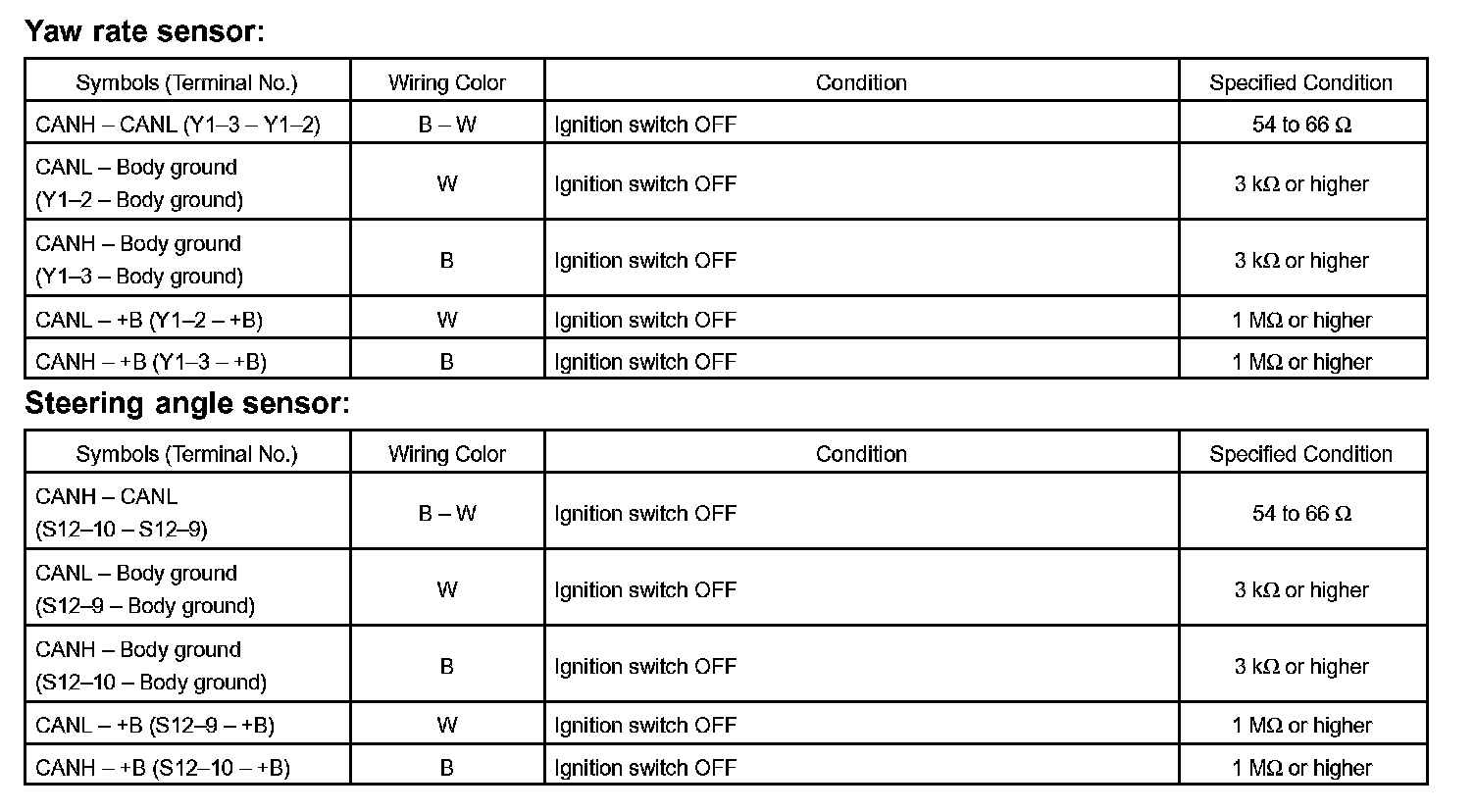

Pinout Values and Diagnostic Parameters
Terminals Of Control Module/Pinouts Part 1:
Terminals Of Control Module/Pinouts Part 2:
