Test Mode (Using Hand-Held Tester)

TEST MODE (USING HAND-HELD TESTER)

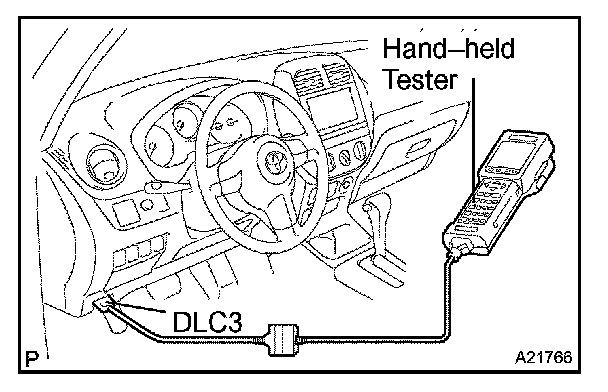

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Select "SIGNAL CHECK" on the hand-held tester.




d. Press the tire pressure warning reset switch.

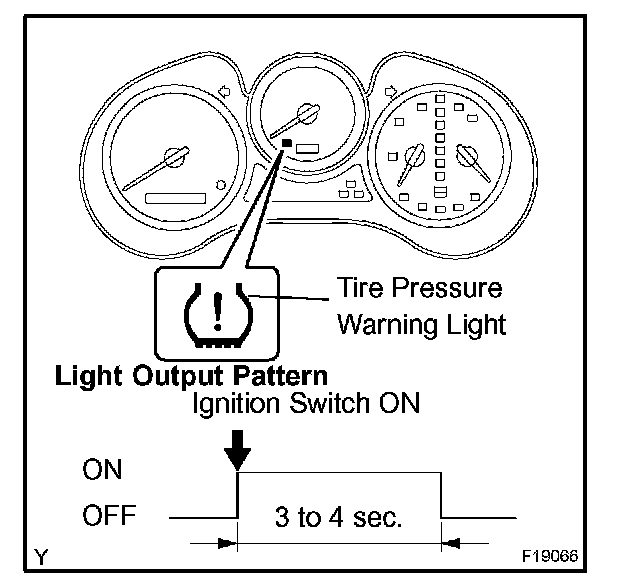

e. Check that the tire pressure warning light turns ON.

HINT:
- Unless above d. is done, the tire pressure warning light remains OFF while in test mode.
- When there is a problem with the tire pressure warning system, the tire pressure warning light blinks at 0.5 second intervals.

If the light output result is not normal, proceed to the problem symptoms table.

f. Turn the ignition switch OFF.




g. Turn the ignition switch ON.
h. Check that the tire pressure warning light turns OFF.
