Stop Light Switch Circuit

Stop Light Switch Circuit

CIRCUIT DESCRIPTION

w/o VSC:
The stop light switch monitors the brake pedal. When the brake pedal is depressed, the stop light switch sends signals to the ABS ECU with actuator.

w/ VSC:
The stop light switch monitors the brake pedal. When the brake pedal is depressed, the stop light switch sends signals to the skid control ECU with actuator.

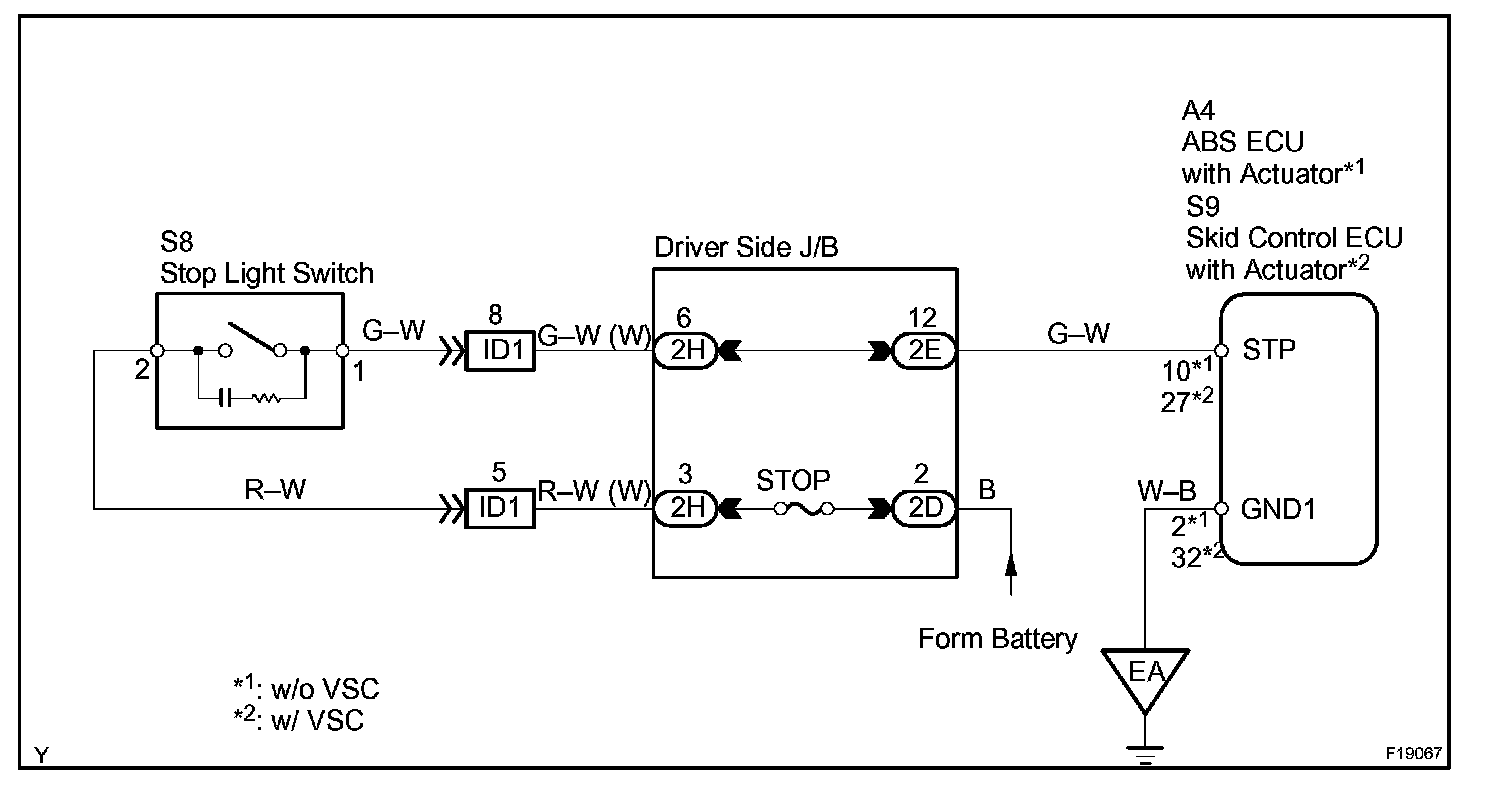

Wiring Diagram:

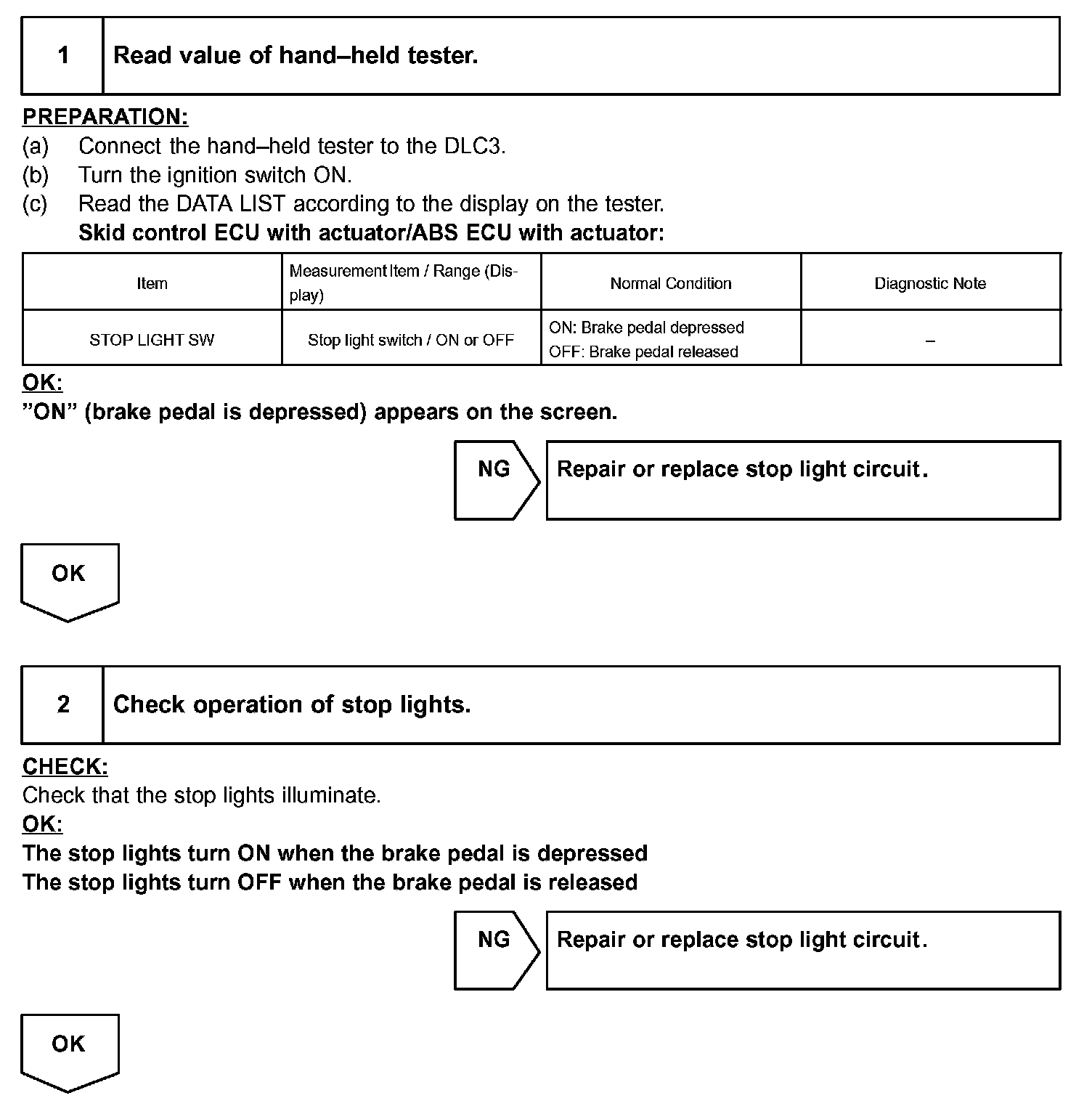

Step 1 - 2:

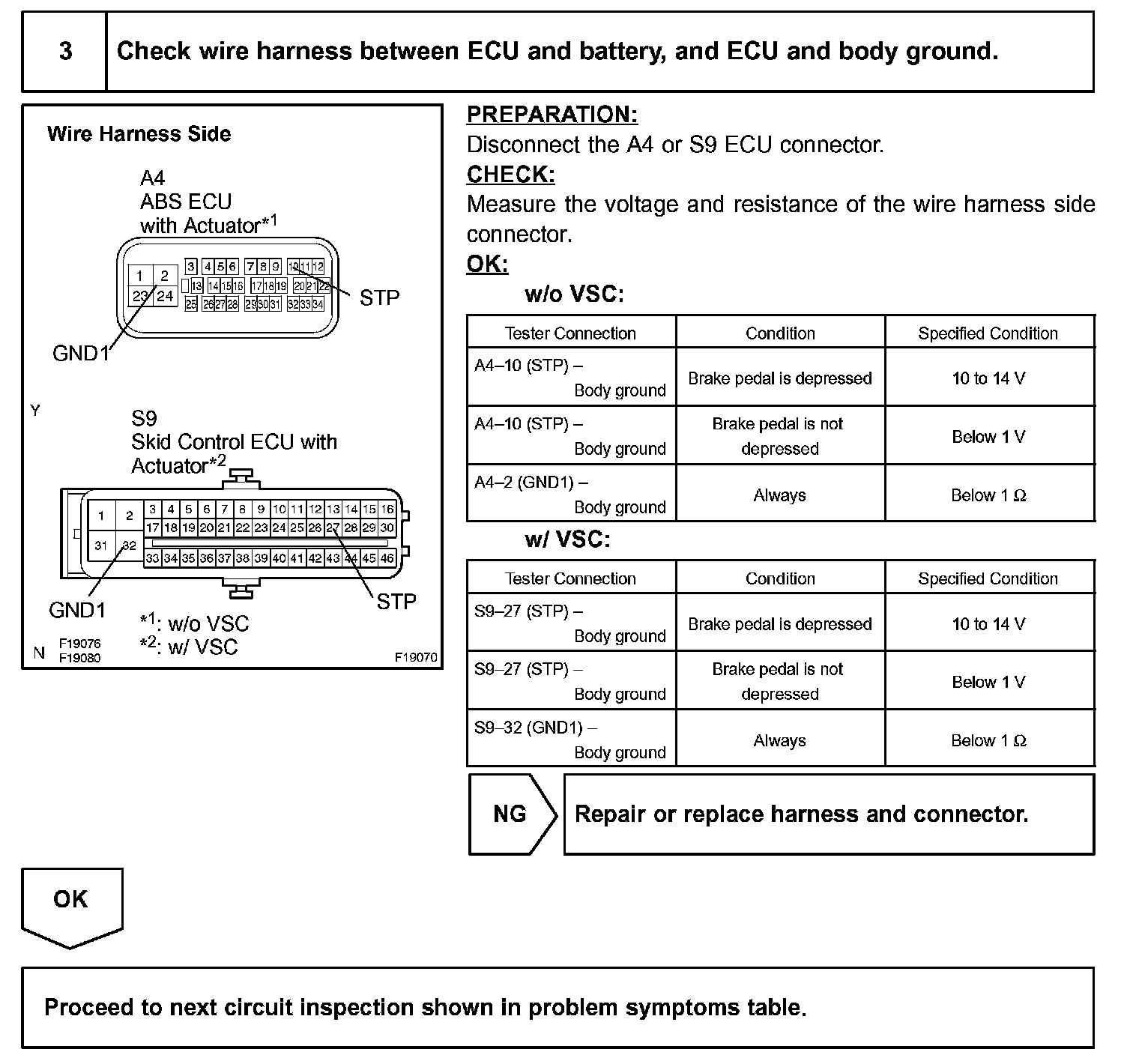

Step 3:

INSPECTION PROCEDURE
