Fluid - Transfer Case: Service and Repair

Manual Transaxle - Transfer

ON-VEHICLE REPAIR - REPLACING TRANSFER OIL
A. Loosen the filler plug.
B. Remove the drain plug.

HINT: Use a container to catch the transfer oil.

C. Remove the filler plug.
D. Reinstall the drain plug.

Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

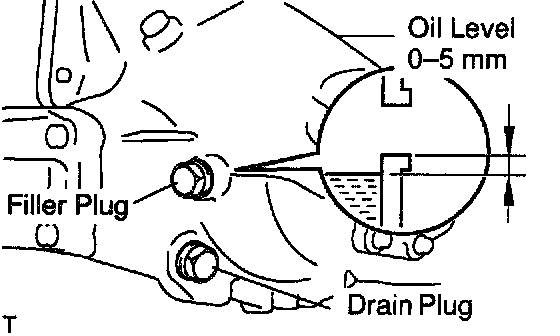

E. Refill new transfer oil as shown in the illustration.

Oil grade: API GL-5
Viscosity: SAE 90
Capacity: 0.9 liters (0.95 US qts, 0.79 Imp.qts)

F. Reinstall the filler plug.

Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
