Fluid - Differential: Service and Repair
ON-VEHICLE REPAIRREPLACE REAR DIFFERENTIAL OIL
a. Remove the filler plug and gasket.
b. Remove the drain plug and gasket, and drain the oil.
c. Reinstall the drain plug with a new gasket.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

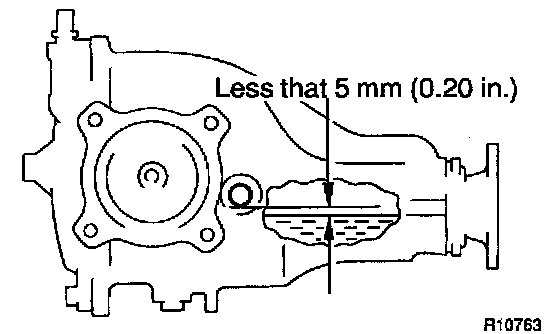

d. Fill new differential oil as shown in the illustration.
Capacity: 0.9 liter (1.0 US qts, 0.8 Imp. qts)
Oil grade: Hypoid gear oil API GL-5

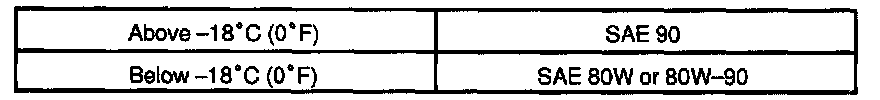

Recommended Oil Viscosity:
e. Reinstall the filler plug with a new gasket.
