Fog/Driving Lamp Switch: Testing and Inspection

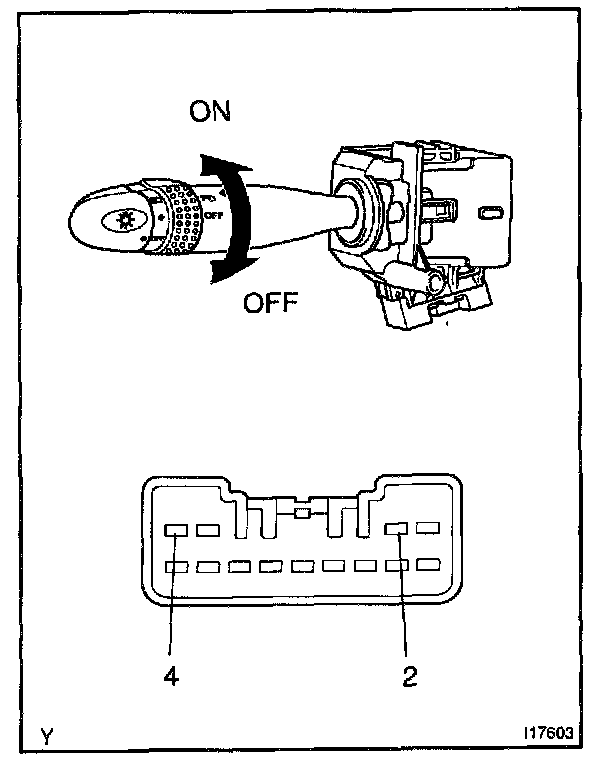

INSPECT FRONT FOG LIGHT SWITCH CONTINUITY

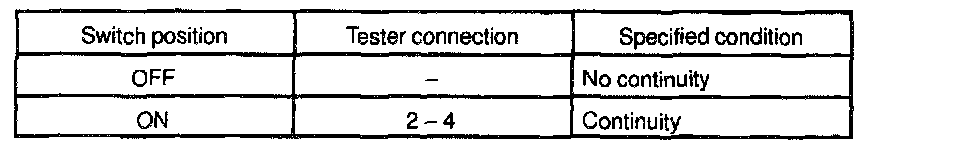

If continuity is not as specified, replace the switch.
