Home >> Toyota Truck >> 2005 >> RAV4 4WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Brake Light Switch >> Testing and Inspection

Brake Light Switch: Testing and Inspection

STOP LIGHT SYSTEM
INSPECTION

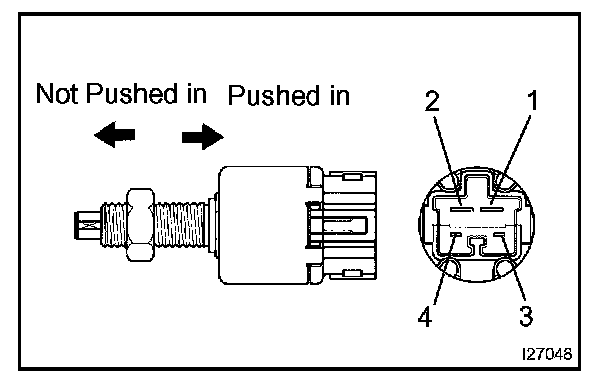

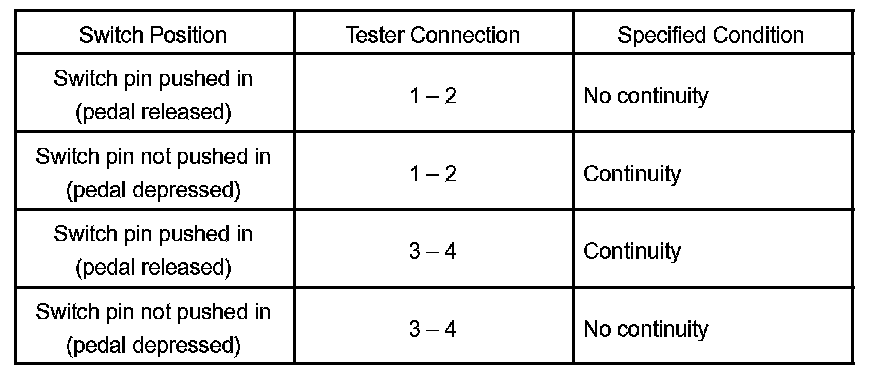

INSPECT STOP LIGHT SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.
