Ambient Temperature Sensor Circuit
Ambient Temperature Sensor CircuitCIRCUIT DESCRIPTION
w/o VSC:
The ambient temperature sensor sends outside temperature signals to the ABS ECU.
w/ VSC:
The ambient temperature sensor sends outside temperature signals to the skid control ECU.

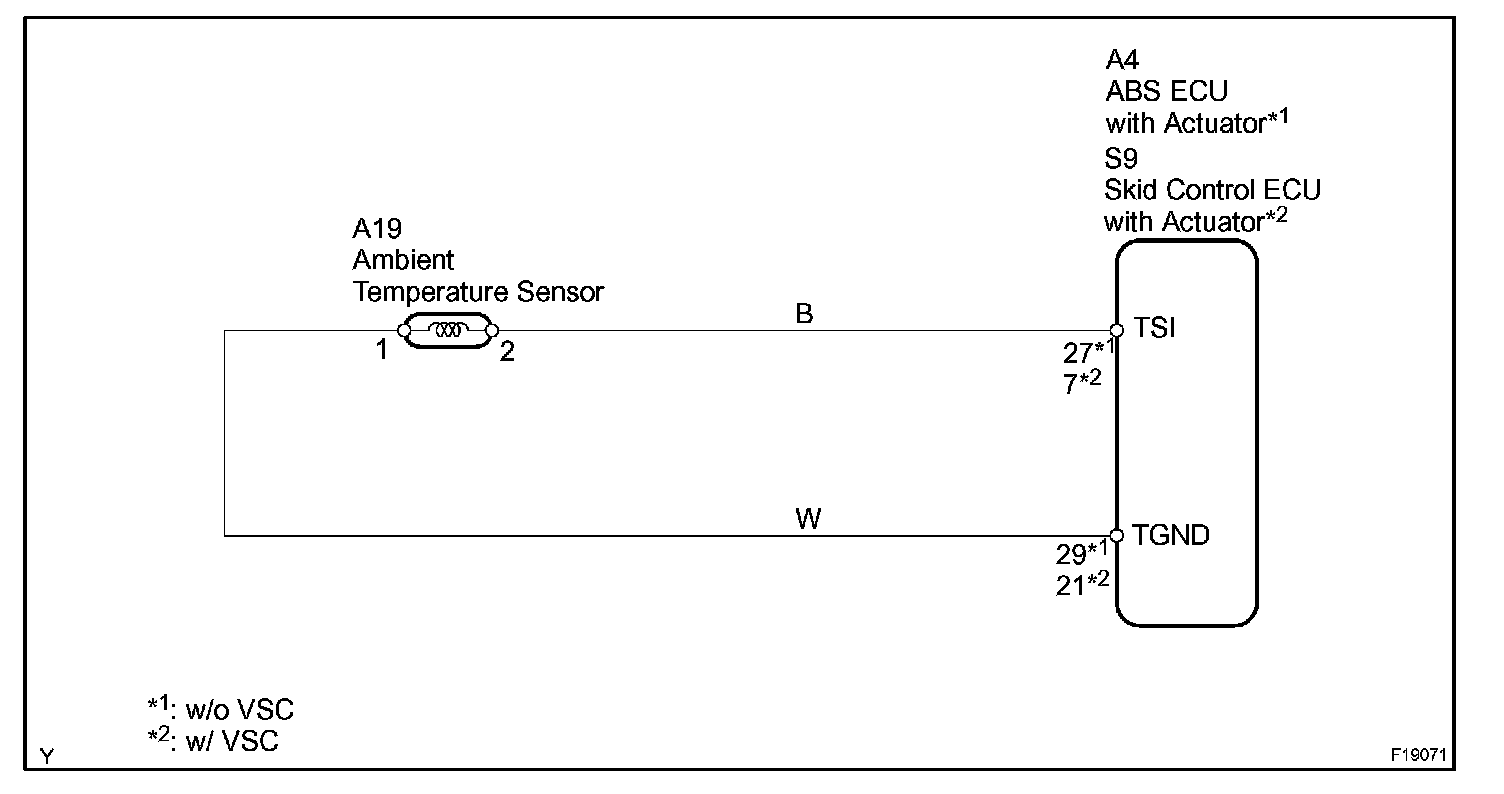

Wiring Diagram:

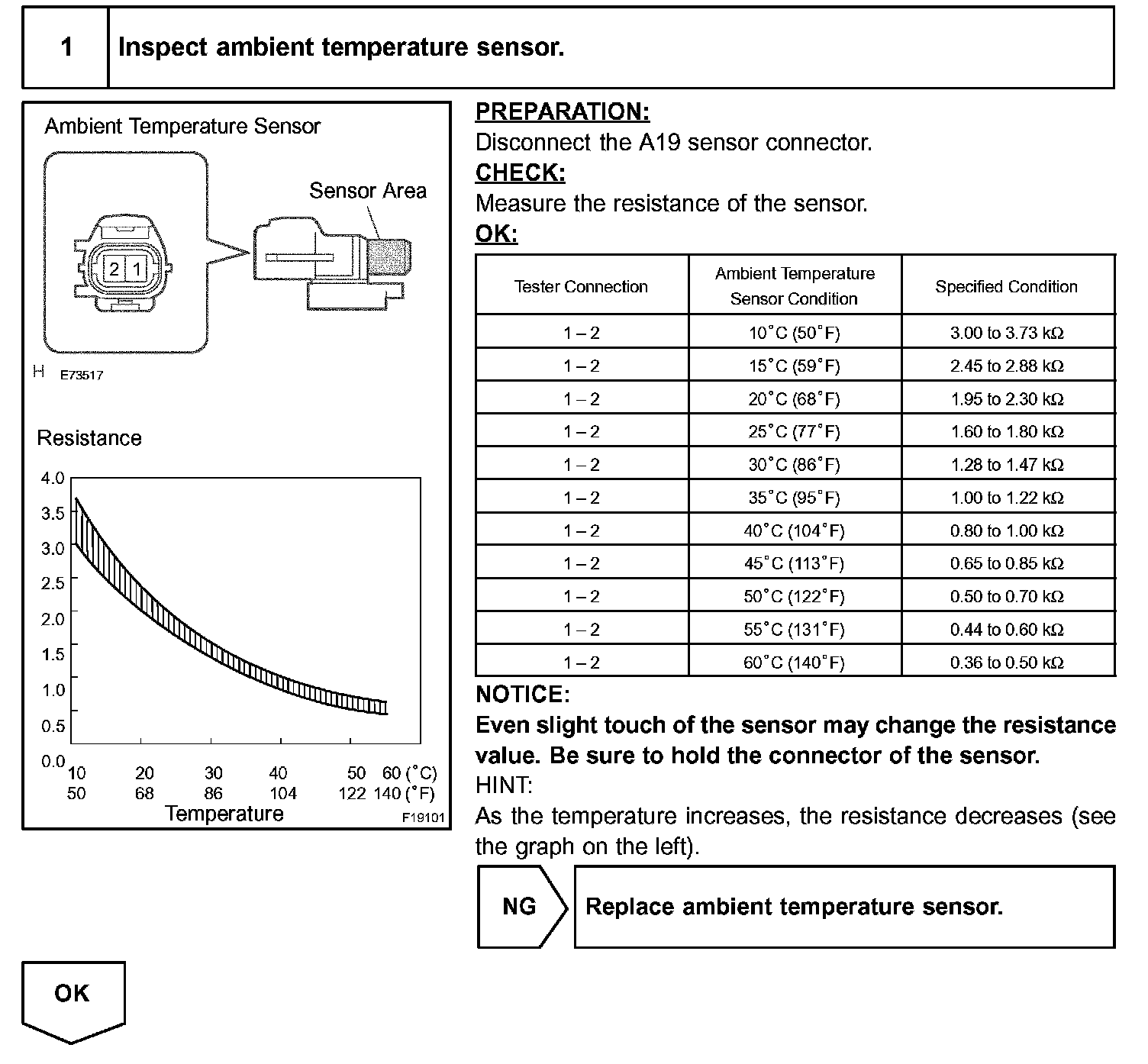

Step 1:

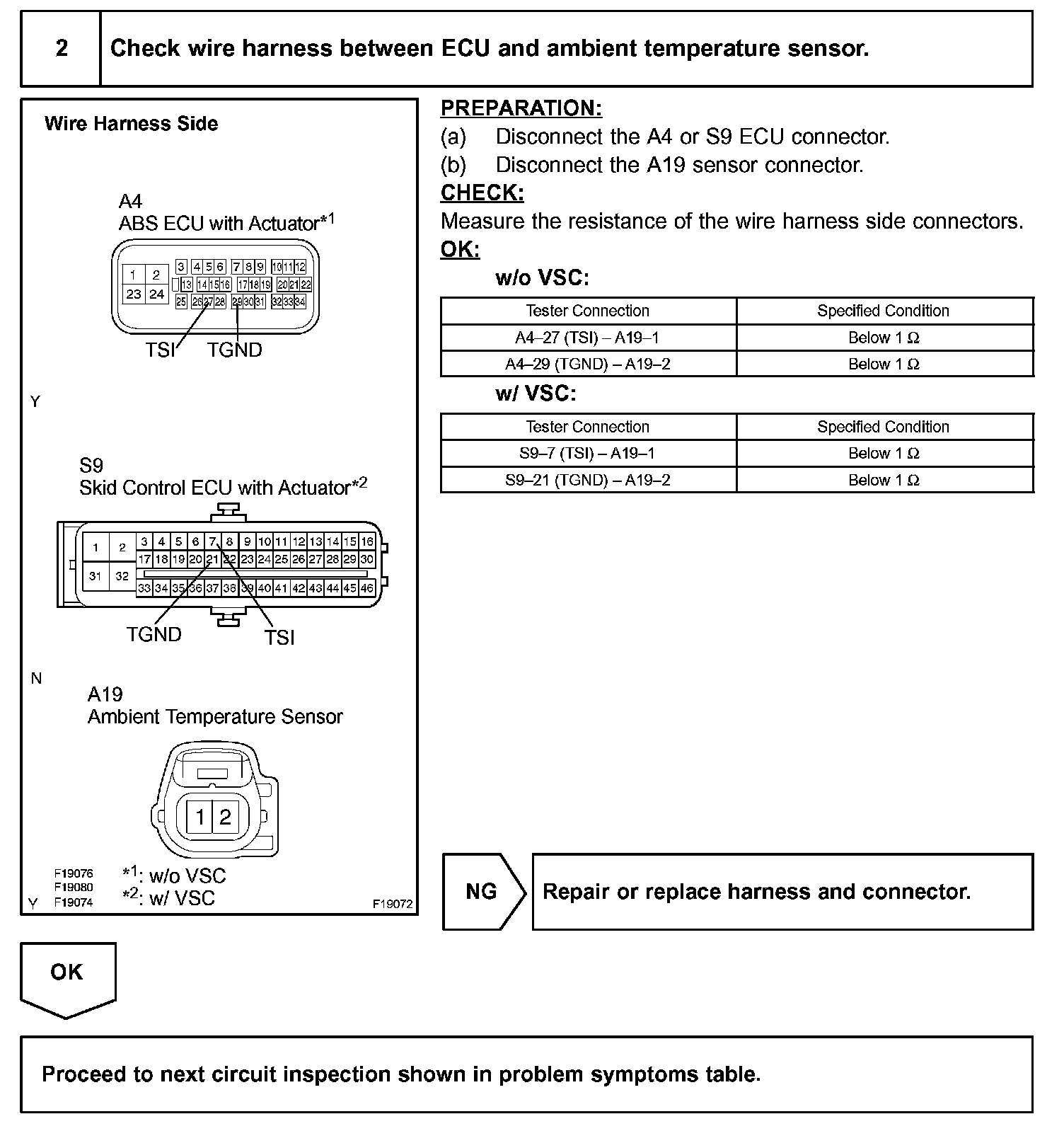

Step 2:
INSPECTION PROCEDURE
