Removal and Installation

Condenser Part 1:

Condenser Part 2:

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
2. REMOVE FRONT BUMPER

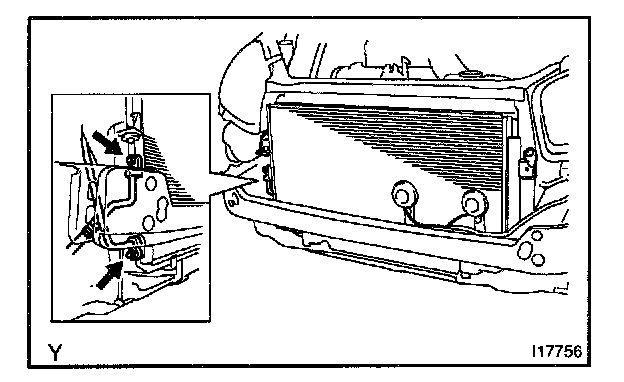

3. REMOVE LIQUID TUBE AND DISCHARGE TUBE
Remove the 2 bolts and both tubes.

NOTE: Cap the open fittings immediately to keep moisture out of the system.

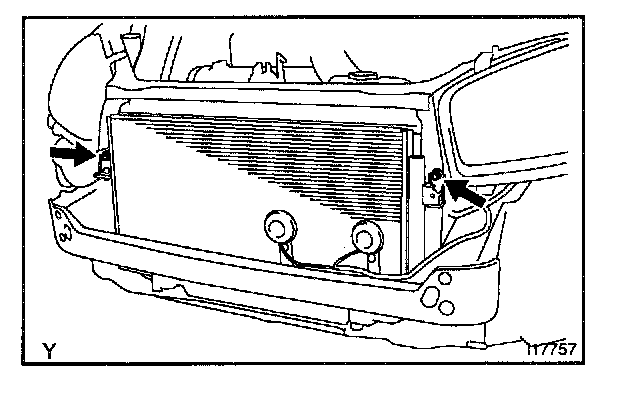

4. REMOVE CONDENSER
a. Remove the 2 bolts.
b. Pull up the condenser at upward.

NOTE: Be careful not to damage the radiator and condenser.

INSTALLATION




1. INSTALL CONDENSER
Install the condenser with the 2 bolts.

Torque: 7.35 N.m (75 kg.cm, 65 in.lb)

NOTE: Be careful not to damage the condenser and radiator.




2. INSTALL LIQUID TUBE AND DISCHARGE TUBE
a. Remove the cap.
b. Coat 2 new O-rings with compressor oil.
c. Install both tubes with the 2 bolts.

Torque: 5.4 N.m (55 kg.cm, 48 in.lb)

If condenser was replaced add compressor oil to the compressor.

Add: 40 cc (1.4 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

3. CHARGE REFRIGERANT TO REFRIGERATION SYSTEM
a. Evacuate air from the refrigeration system.
b. Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount: 500 ± 50 g (17.64 ± 1.76 oz.)
