Cabin Air Filter / Purifier: Locations

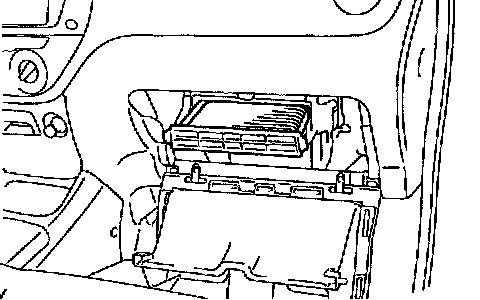

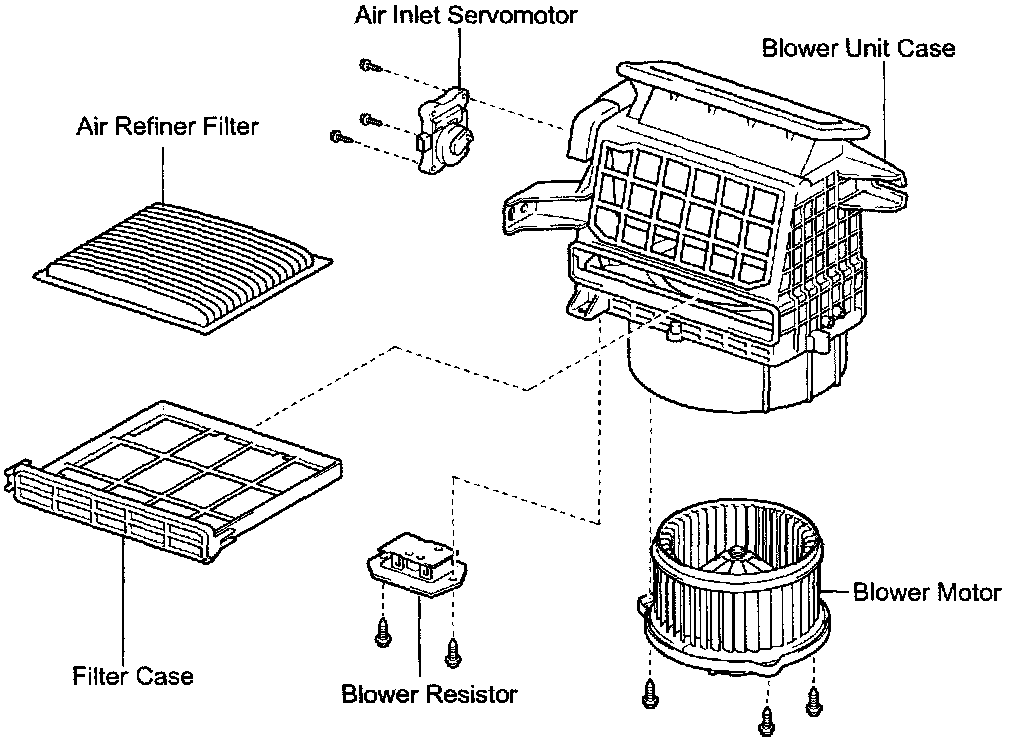

The cabin air filter is in the blower case. Remove filter tray as shown above.
