Blower Motor: Testing and Inspection
BLOWER MOTORINSPECTION

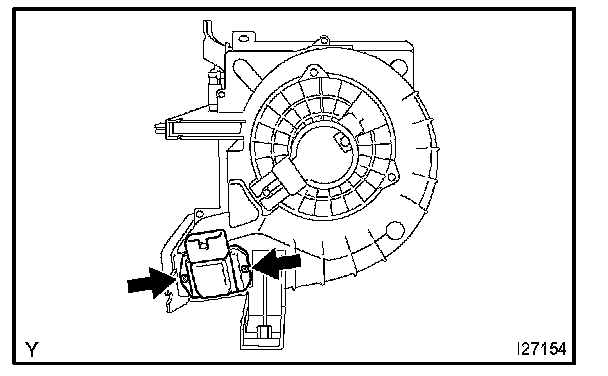

1. REMOVE BLOWER MOTOR
a. Disconnect the blower motor connector and wire harness clamp.
b. Using a torx wrench, remove the 2 screws and blower motor.

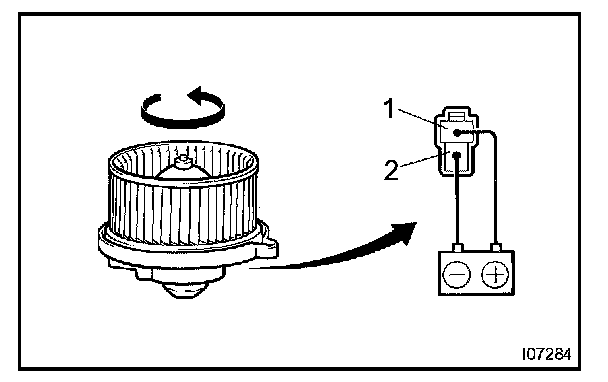

2. INSPECT BLOWER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the motor operations smoothly.
If operation is not as specified, replace the blower motor.
3. INSTALL BLOWER MOTOR
a. Using a torx wrench, install the blower motor with the 2 screws.
b. Connect the blower motor connector and wire harness clamp.
