Removal and Installation

BLOWER UNIT

Blower Unit (Part 1):

Blower Unit (Part 2):

REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR




a. Disconnect the glove compartment door.

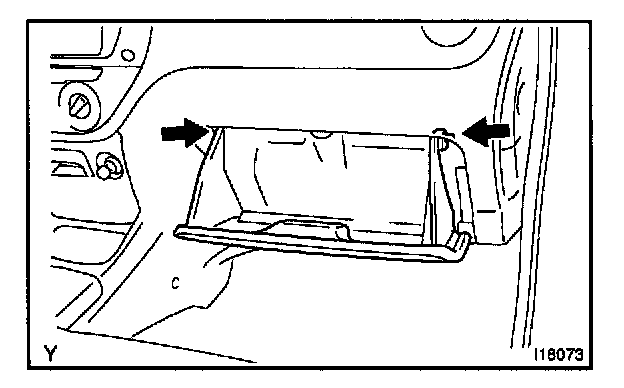

Push both side inward one after another and pull out the glove compartment door.

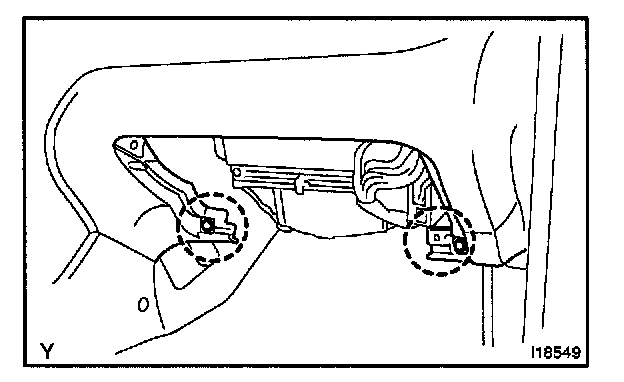

b. Remove the 2 screws and glove compartment door.

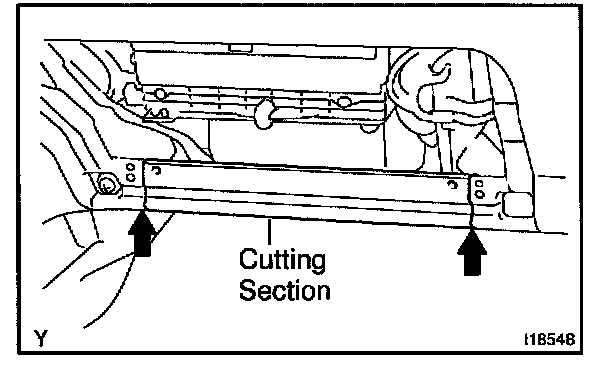

c. Cut out the instrument panel as shown in the illustration.






HINT: After cut out the instrument panel, file the cutting face and smooth the surface

2. REMOVE BLOWER UNIT

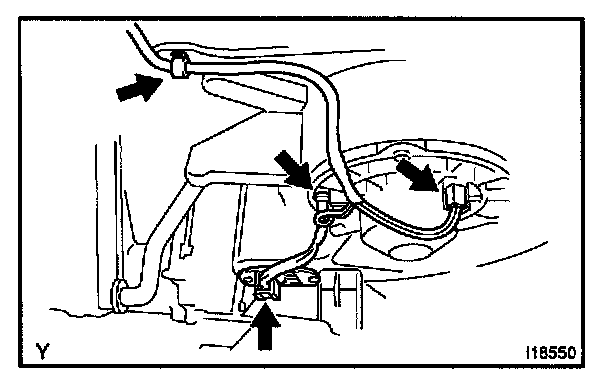

a. Disconnect the blower resistor, blower motor connectors and harness clamps to the blower unit.
b. Disconnect the air inlet servomotor connector.

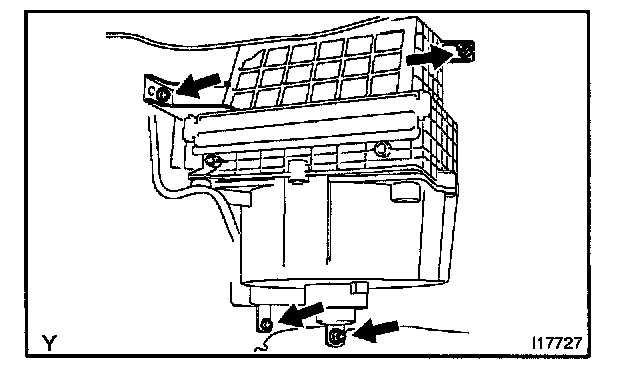

c. Remove the 2 screws, 2 nuts and blower unit.

INSTALLATION

1. INSTALL BLOWER UNIT




a. Install the blower unit with the 2 screws and 2 nuts.




b. Connect the blower resistor, blower motor connectors and harness clamps to the blower unit.
c. Connect the air inlet servomotor connector.

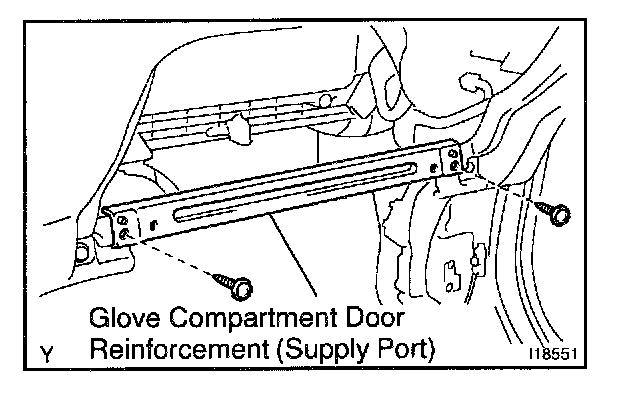

d. Install the glove compartment door reinforcement (supply part) with the 2 screws.

2. INSTALL GLOVE COMPARTMENT DOOR
