Blower Motor Resistor: Testing and Inspection
BLOWER RESISTORINSPECTION
1. REMOVE BLOWER RESISTOR
a. Disconnect the blower resistor connector.
b. Remove the 2 screws and blower resistor.

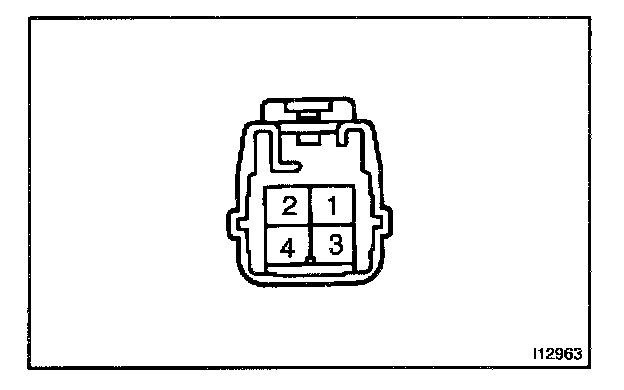

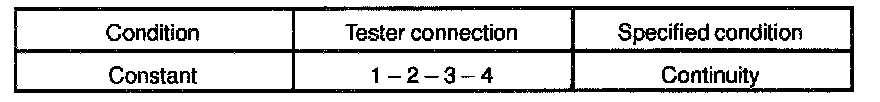

2. INSPECT BLOWER RESISTOR CONTINUITY
If continuity is not as specified, replace the blower resistor.
3. REINSTALL BLOWER RESISTOR
a. Install the blower resistor with the 2 screws.
b. Connect the blower resistor connector.
